HEATING AND VENTILATION SYSTEM 7A – 21
DAEWOO V–121 BL4

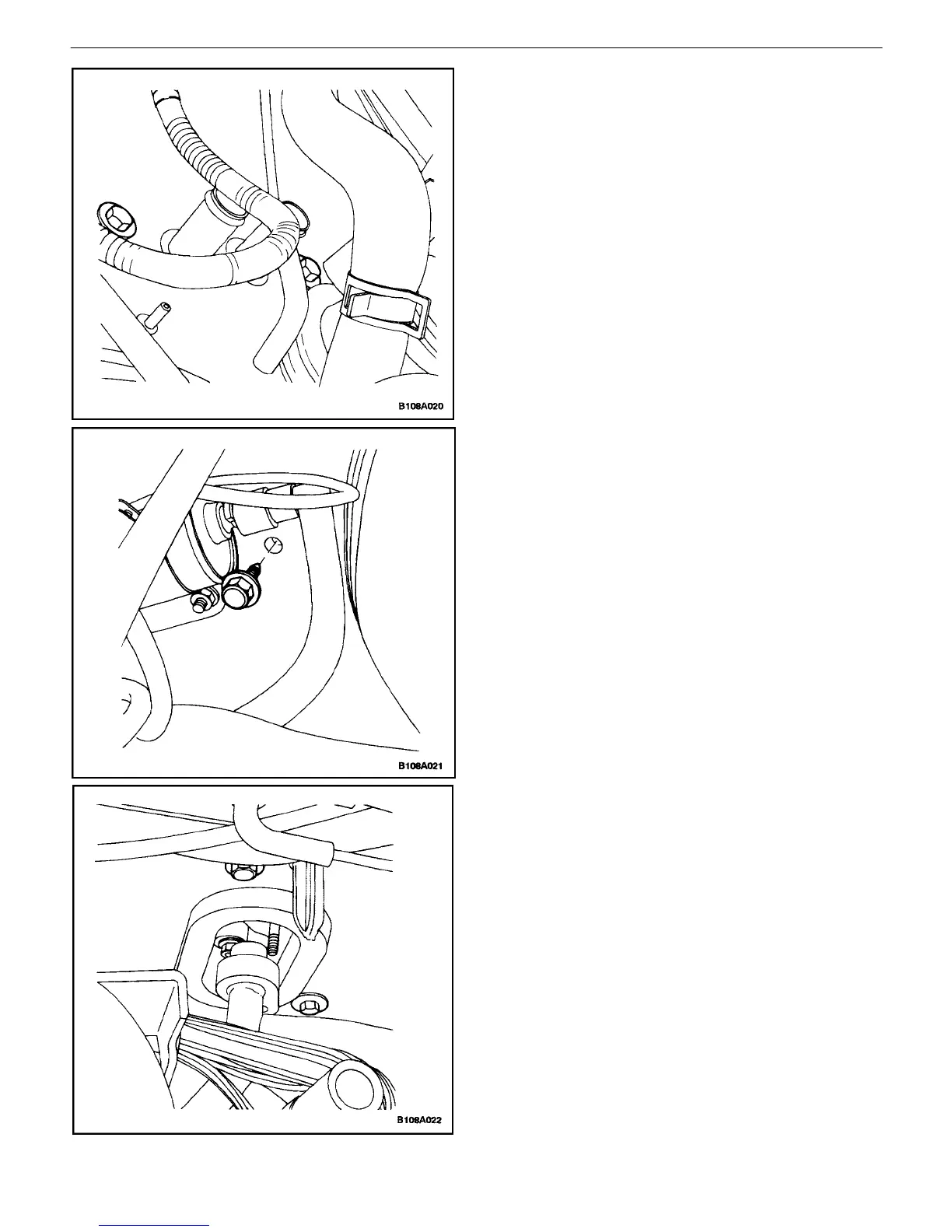

5. Compress the heater hose clamps at the bulkhead
and slide the clamps toward the engine.
6. Remove the two heater hoses from the core lines at
the bulkhead.
7. Remove the screws that secure the heater/air dis-
tributor case assembly to the bulkhead on either
side of the heater core pipes.
8. Remove the heater/air distributor case screw lo-
cated above the fuel filter on the engine compart-
ment side of the bulkhead.
9. Have an assistant support the heater/air distributor
case from inside the vehicle.
Notice : Handle the case carefully to avoid damage to the
mechanical door operating linkage.
10. Remove the screws from the connecting block
opening mount on the engine compartment side of
the bulkhead on the right–hand side of the vehicle.
The case assembly will start to drop.
11. Pull the heater/air distributor case straight away
from the bulkhead to free the alignment pegs from
their openings in the bulkhead.
12. Remove the heater/air distributor case assembly
from the vehicle.
