1C – 20IDOHC ENGINE MECHANICAL
DAEWOO V–121 BL4

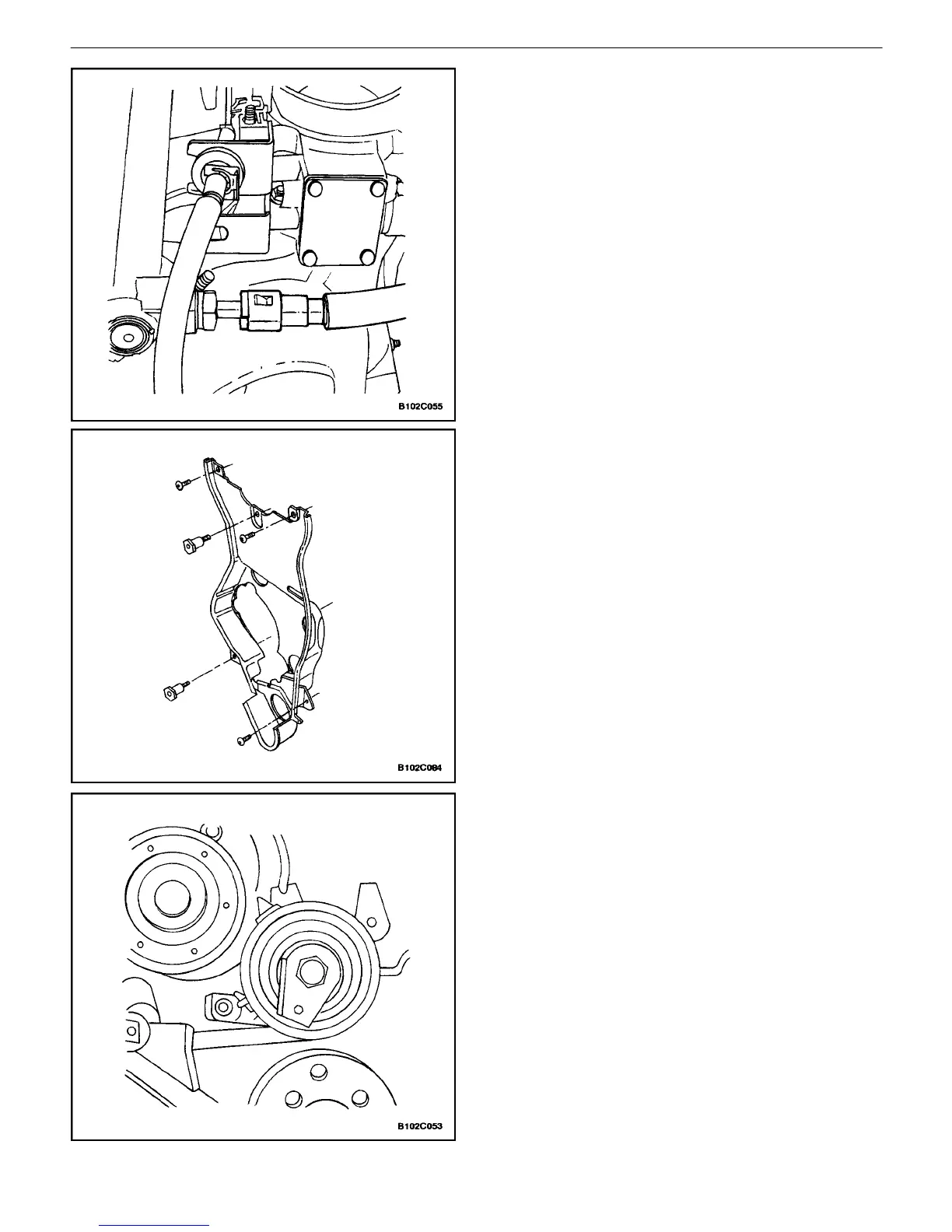

11. Connect the fuel feed line at the fuel rail.
12. Connect the fuel return line at the fuel rail.
13. Connect all of the necessary vacuum hoses.
14. Install the fuel rail assembly. Refer to Section 1F,
Engine Controls (DOHC).
15. Install the auxiliary catalytic converter nuts at the
exhaust manifold flange.
Tighten
Tighten the auxiliary catalytic converter–to–exhaust
manifold nuts to 40 NSm (30 lb–ft).
16. Install the rear timing belt cover.
17. Install the rear timing belt cover bolts.
Tighten
Tighten the rear timing belt cover bolts to 6 NSm (53
lb–in).
18. Install the engine mount and retaining bolts.
Tighten
Tighten the engine mount retaining bolts to 60 N·m
(44 lb–ft).
19. Install the timing belt automatic tensioner.
20. Install the timing belt automatic tensioner bolt.
Tighten
Tighten the timing belt automatic tensioner bolts to 25
NSm (18 lb–ft).
21. Install the timing belt idler pulleys.
22. Install the timing belt idler pulley nuts.
Tighten
Tighten the timing belt idler pulley bolt to 25 NSm (18
lb–ft).
Tighten
Tighten the timing belt idler pulley nut to 25 NSm (18
lb–ft).
