DOHC ENGINE MECHANICAL 1C – 33
DAEWOO V–121 BL4

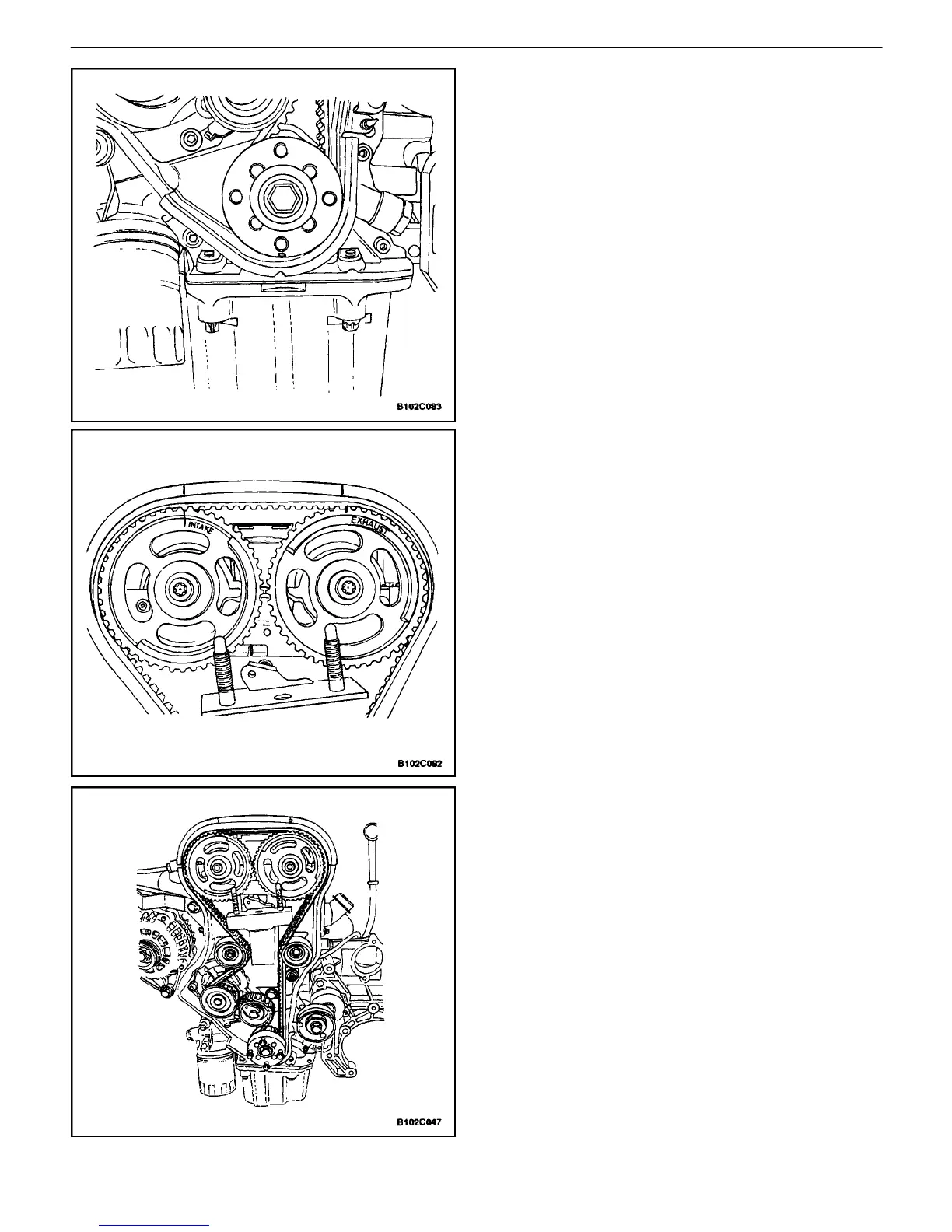

15. Using the crankshaft gear bolt, rotate the crank-
shaft clockwise until the timing mark on the crank-
shaft gear is aligned with the notch at the bottom of
the rear timing belt cover.
Notice : The camshaft gears must align with the notch on
the valve cover or damage to the engine could result.
16. Align the camshaft gears with the notch on the
valve cover.
Important : Use the intake gear mark for the intake cam-
shaft gear and the exhaust gear mark for the exhaust cam-
shaft gear since both gears are interchangeable.
17. Remove the timing belt.
18. Loosen the automatic tensioner bolt. Turn the
hexkey tab to relieve belt tension.
