DOHC ENGINE MECHANICAL 1C – 69
DAEWOO V–121 BL4

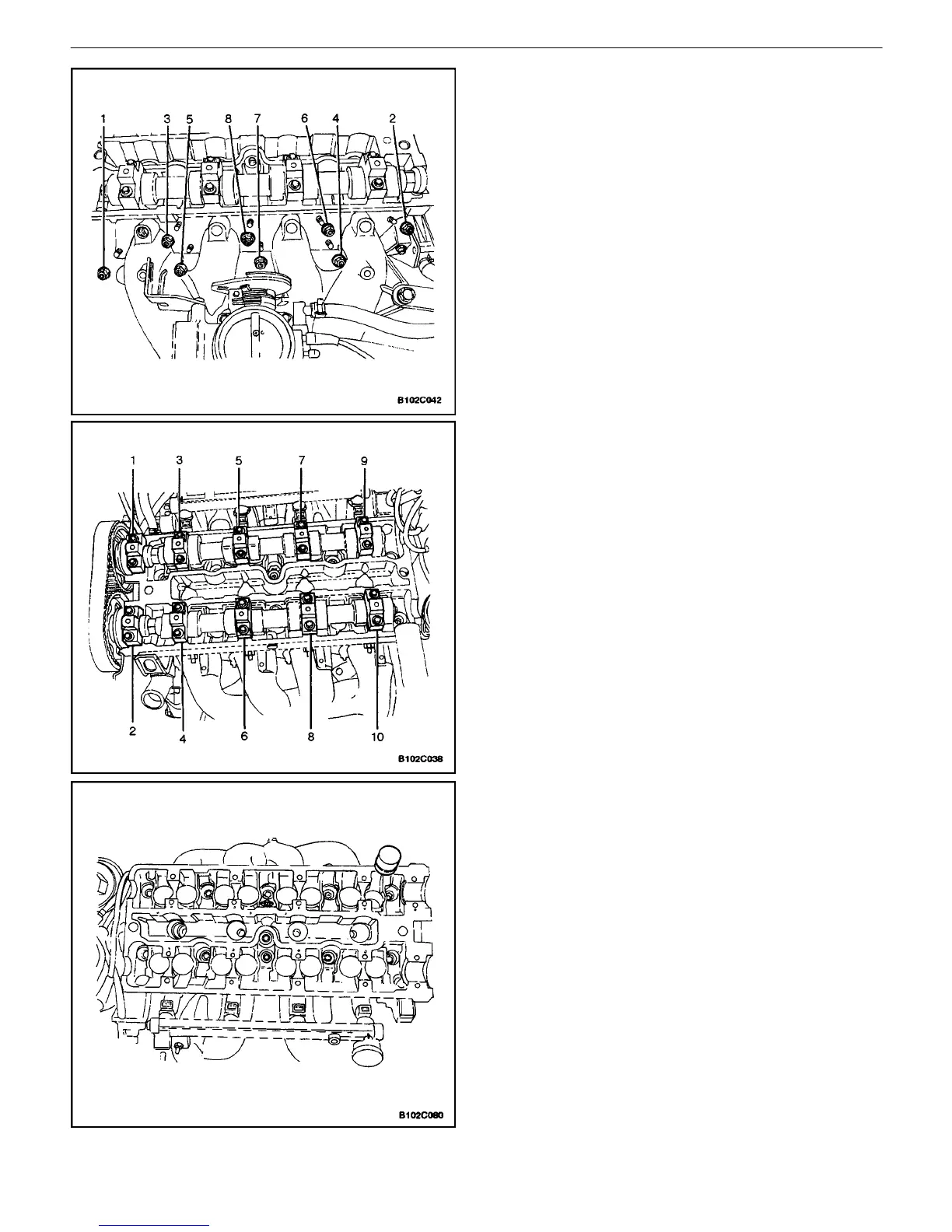

14. Remove the intake manifold retaining nuts and re-
taining bolt in the sequence shown.
15. Remove the intake manifold.
16. Remove the intake manifold gasket.
17. Remove the electronic ignition system (EI System)
ignition coil and EGR mounting bracket bolts.
18. Remove the EI system ignition coil and EGRmount-
ing bracket and ignition wires.
19. Remove the intake manifold studs.
20. Remove the spark plugs.
21. Remove the camshaft bearing cap bolts gradually
and in the sequence shown for each camshaft cap.
22. Remove the intake camshaft bearing caps. Main-
tain the correct positions for installation.
23. Remove the intake camshaft.
24. Remove the intake valve lash adjusters.
25. Remove the exhaust camshaft caps. Maintain the
correct positions for installation.
26. Remove the exhaust camshaft.
27. Remove the exhaust valve lash adjusters.
