1148 Configuring OSPF and OSPFv3

OSPFv3 Link State Database

Use the Link State Database

page to display the link state and external LSA

databases. The OSPFv3 Link State Database

page has been updated to

display external LSDB table information in addition to OSPFv3 link state

information.

To display the page, click IPv6

→

OSPFv3

→

Link State Database in the

navigation panel.

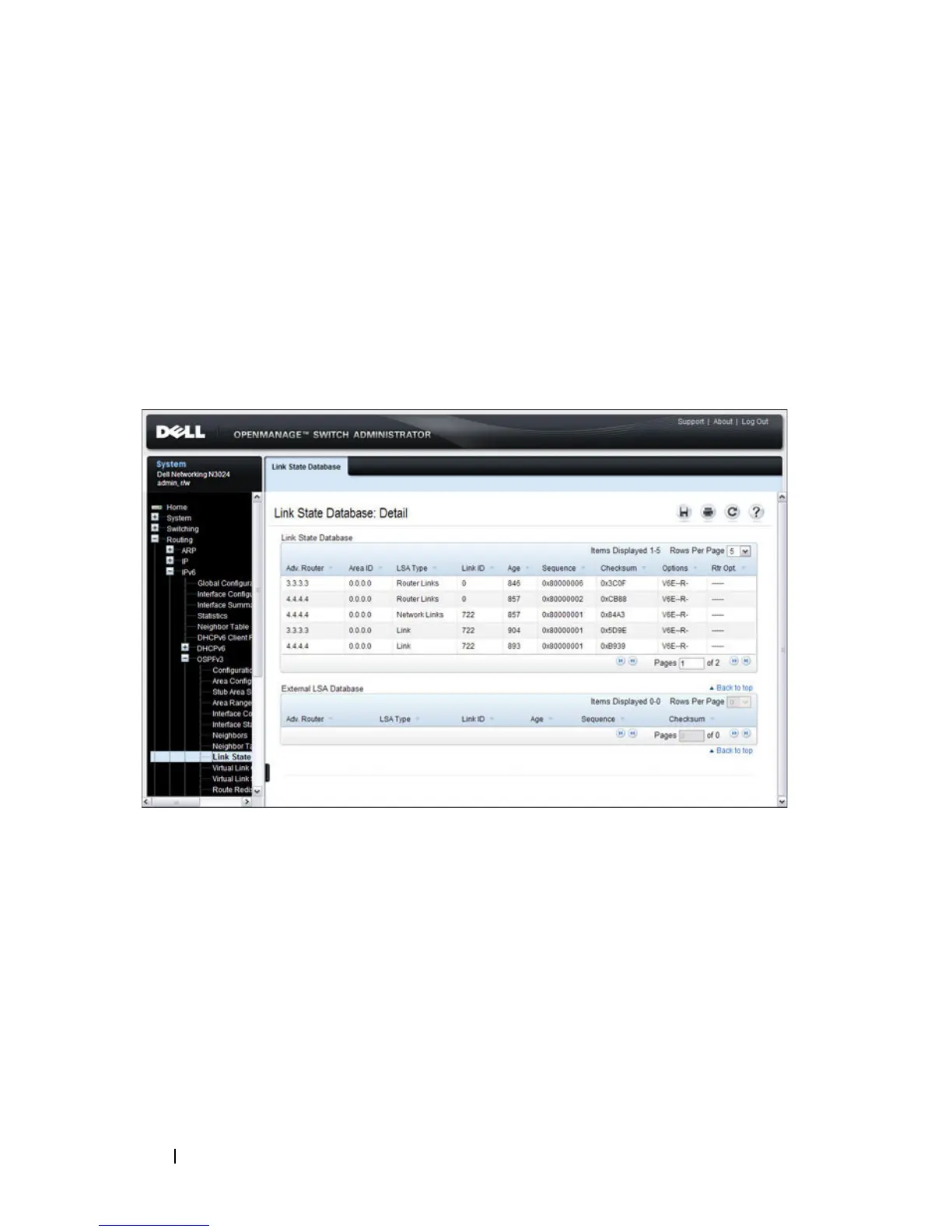

Figure 35-28. OSPFv3 Link State Database
