DiffServ for VoIP
One of the most valuable uses of DiffServ is to support Voice over IP (VoIP).
VoIP traffic is inherently time-sensitive: for a network to provide acceptable
service, a guaranteed transmission rate is vital. This example shows one way
to provide the necessary quality of service: how to set up a class for UDP
traffic, have that traffic marked on the inbound side, and then expedite the
traffic on the outbound side. The configuration script is for Router 1 in the
accompanying diagram: a similar script should be applied to Router 2.

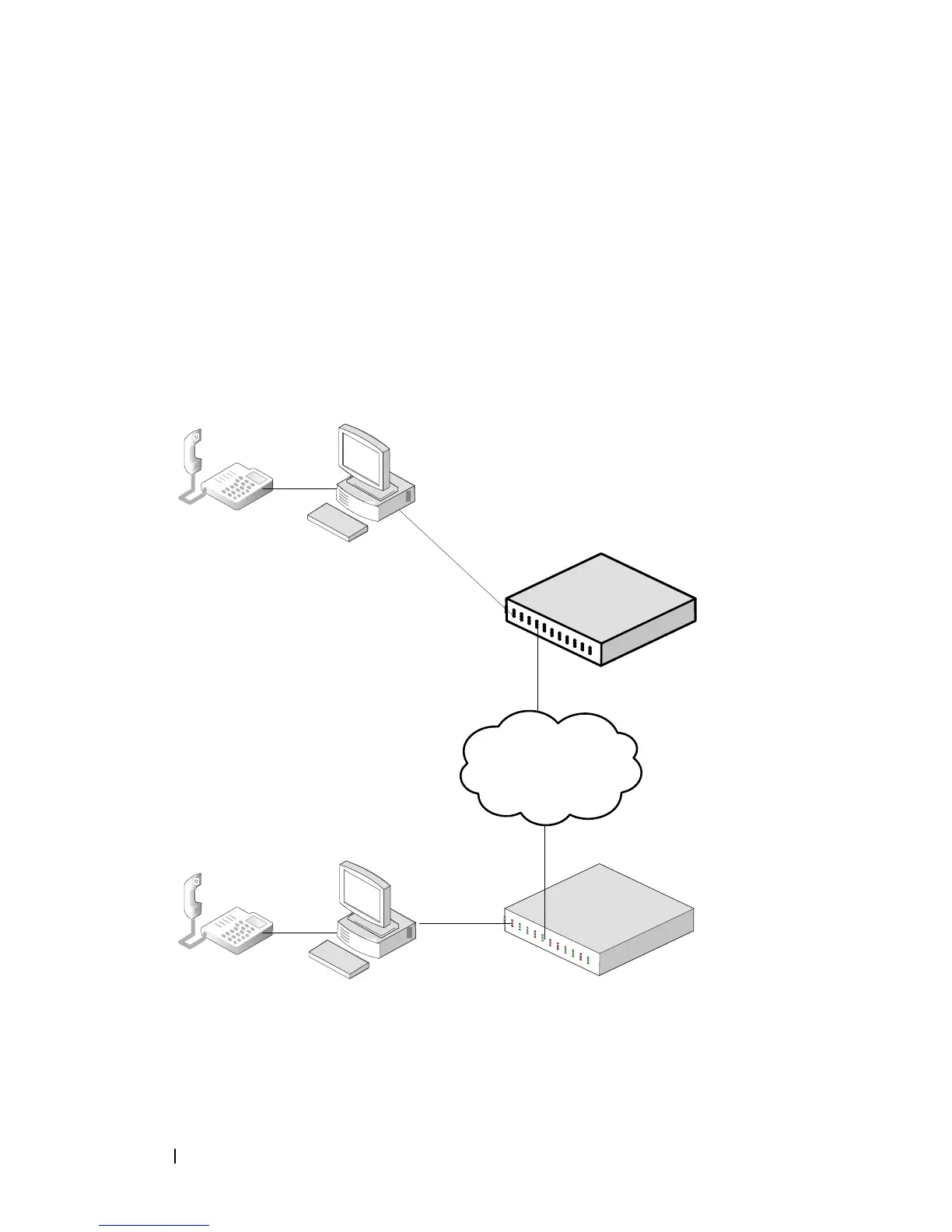

Figure 40-18. DiffServ VoIP Example Network Diagram
Internet
`
`
Layer 3 Switch
Operating as
Router 1
Layer 3 Switch
Operating as
Router 2
Port 1/0/2
Port 1/0/3
