Dell Networking N4000 Series User Manual

Configuring Access Control Lists 609
ACL Binding Configuration
When an ACL is bound to an interface, all the rules that have been defined
are applied to the selected interface. Use the ACL Binding Configuration
page to assign ACL lists to ACL Priorities and Interfaces.
From the web interface, you can configure the ACL rule in the ingress or
egress direction so that the ACLs implement security rules for packets
entering or exiting the port. You can apply ACLs to any physical (including 10
Gb) interface, LAG, or routing port.
To display the ACL Binding Configuration page, click Switching
→ Network
Security
→ Access Control Lists → Binding Configuration in the navigation
panel.

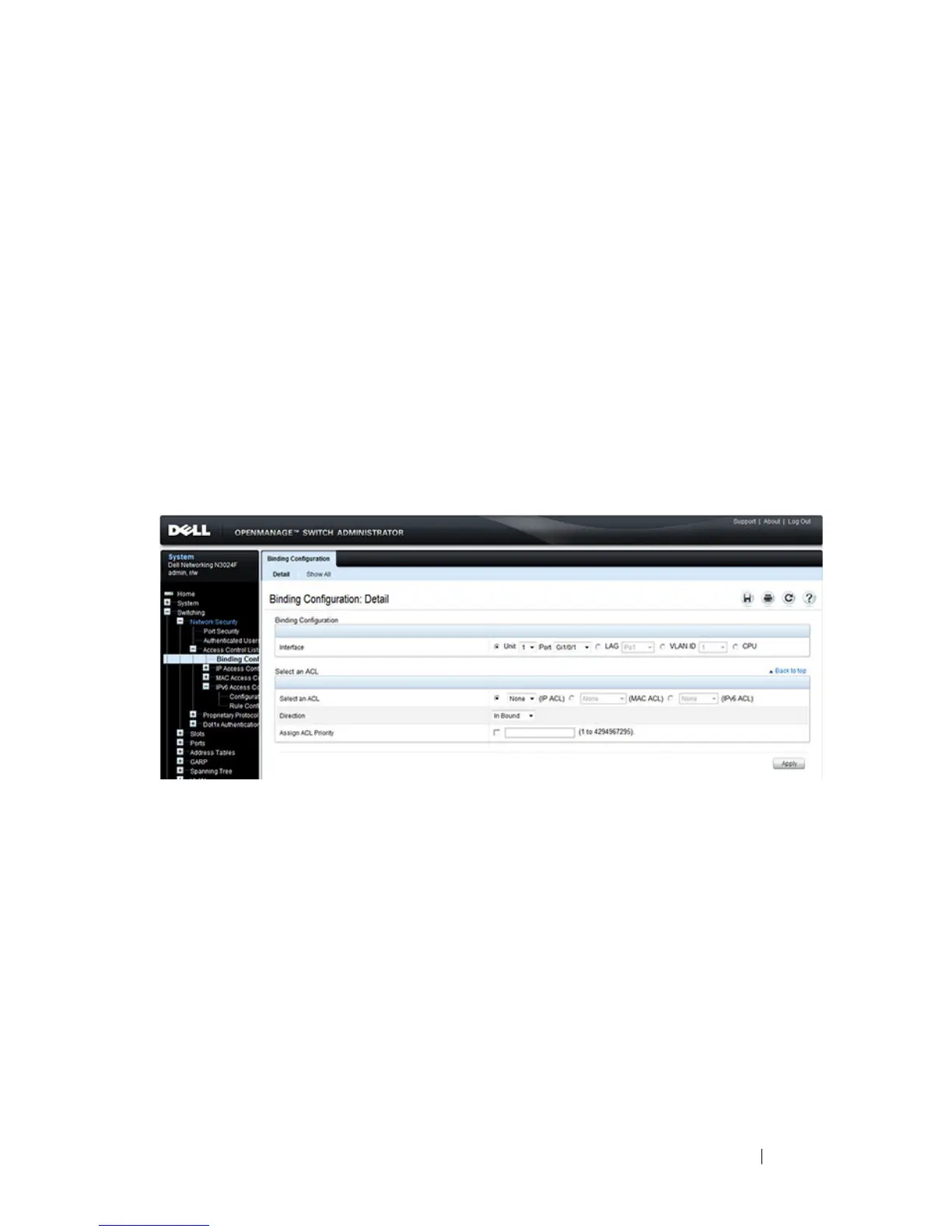

Figure 20-11. ACL Binding Configuration
