Dell Networking N4000 Series User Manual

1290 Configuring Differentiated Services
2 Enter a name for the class and select the protocol to use for class match
criteria.
3 Click Apply to add the new class.
4 To view a summary of the classes configured on the switch, click Show All .

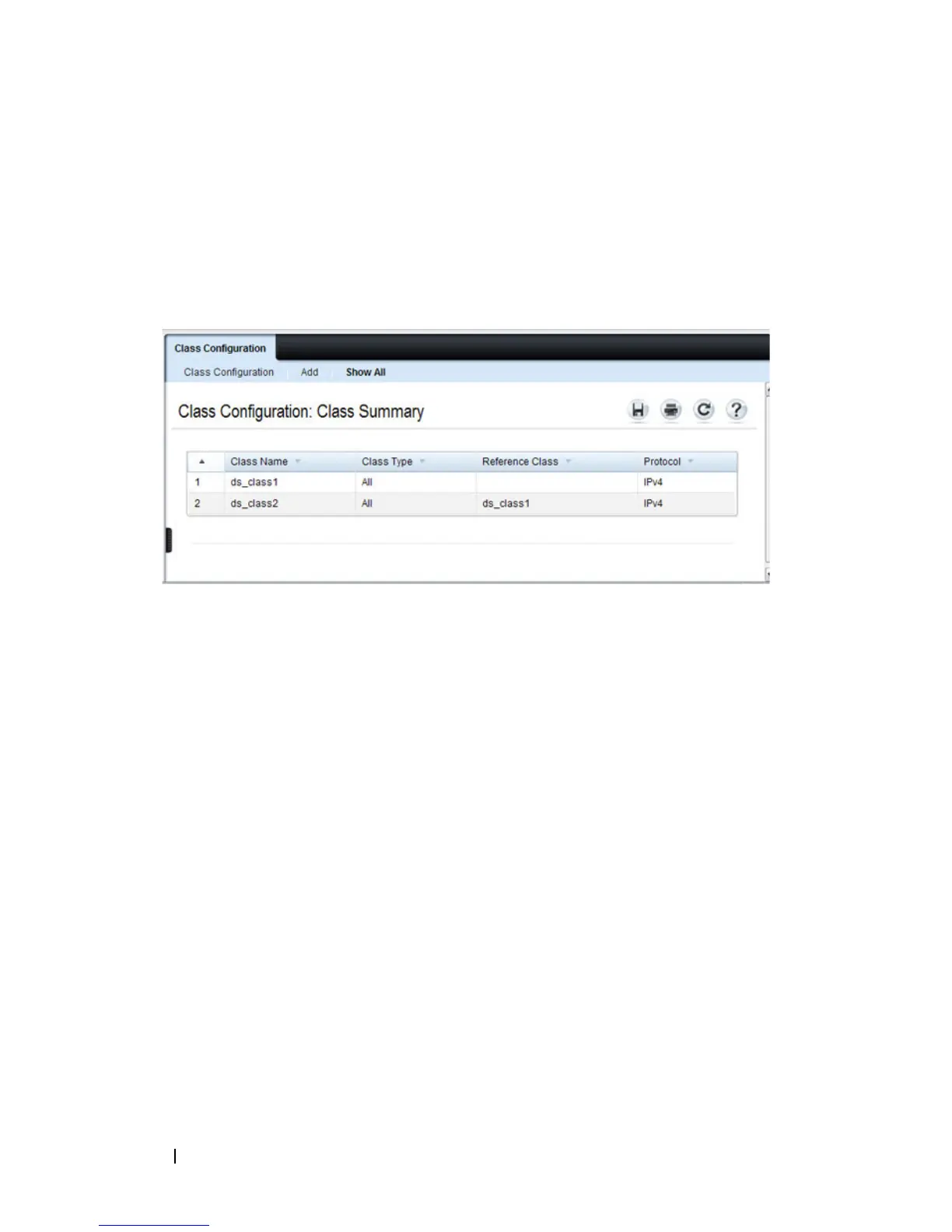

Figure 40-4. View DiffServ Class Summary
Class Criteria
Use the DiffServ Class Criteria page to define the criteria to associate with a
DiffServ class. As packets are received, these DiffServ classes are used to
identify packets.
To display the
page, click Quality of Service → Differentiated Services →
Class Criteria in the navigation panel.
