988 Configuring Data Center Bridging Features

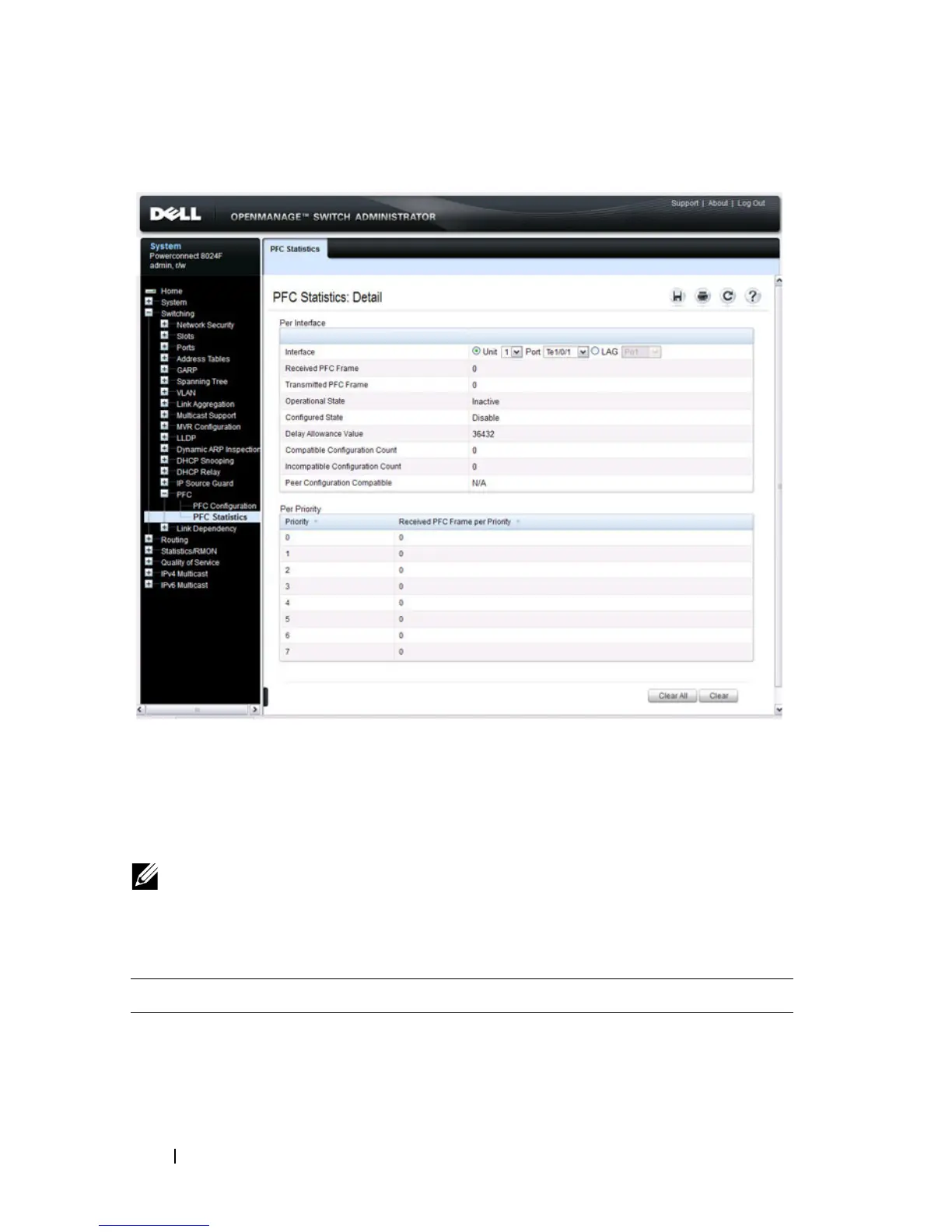

Figure 29-2. PFC Statistics

Configuring PFC Using the CLI

Beginning in Privileged EXEC mode, use the following commands to

configure PFC.

NOTE: If DCBx is enabled and the switch is set to autoconfigure from a DCBX

peer, configuring PFC is not necessary because the DCBx protocol automatically

configures the PFC parameters.

Command Purpose

configure Enter global configuration mode.
