340 Configuring SNMP

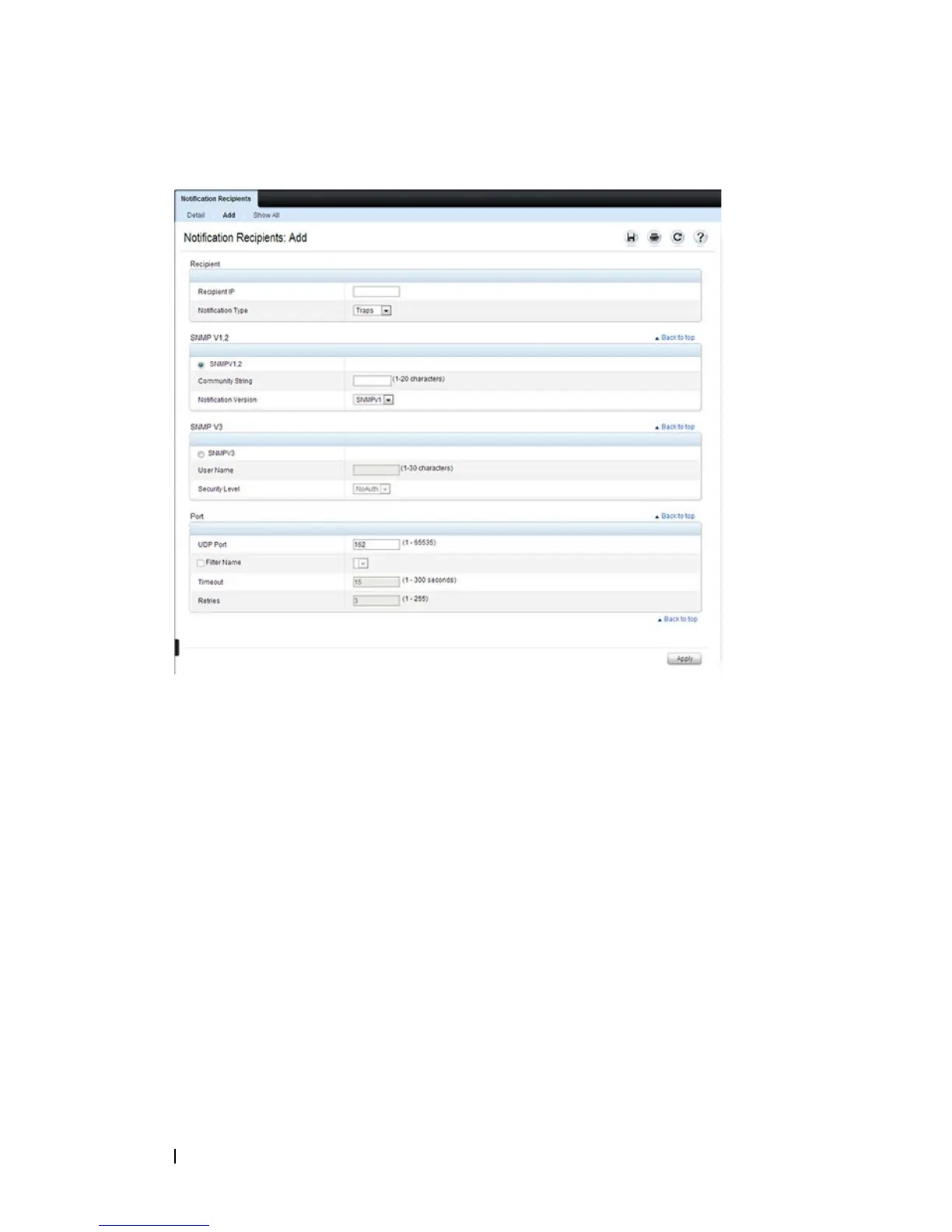

Figure 13-14. Add Notification Recipient
3
Specify the IP address or hostname of the host to receive notifications.
4
Select whether to send traps or informs to the specified recipient
5
Define the relevant fields for the SNMP version you use.
6
Configure information about the port on the recipient.
7
Click
Apply
to update the switch.
Click Show All to view information about the recipients that have already
been configured.
Trap Flags
The Trap Flags page is used to specify which traps you want to enable or
disable. When the condition identified by an active trap is encountered by
the switch, a trap message is sent to any enabled SNMP Trap Receivers, and a
message is written to the trap log.
