898 Snooping and Inspecting Traffic

DAI Interface Configuration

Use the DAI Interface Configuration page to select the DAI Interface for

which information is to be displayed or configured.

To display the DAI Interface Configuration page, click Switching

→

Dynamic ARP Inspection

→

Interface Configuration in the navigation

panel.

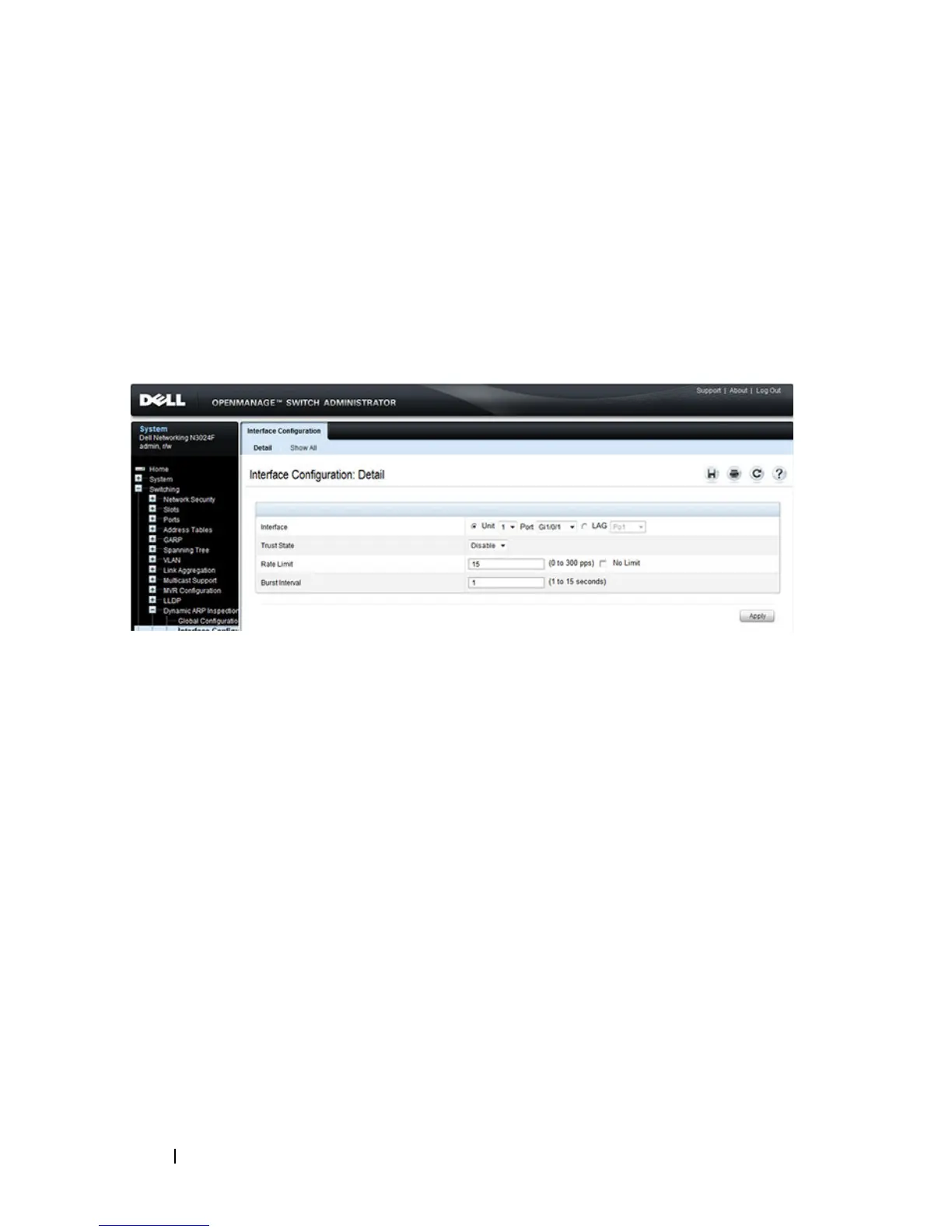

Figure 27-16. Dynamic ARP Inspection Interface Configuration

To view a summary of the DAI status for all interfaces, click Show All.
