1232 Configuring VRRP
VRRP Configuration Example
This section contains the following VRRP examples:
• VRRP with Load Sharing
• VRRP with Route and Interface Tracking
VRRP with Load Sharing
In Figure 37-9, two L3 Dell Networking switches are performing the routing
for network clients. Router A is the default gateway for some clients, and
Router B is the default gateway for other clients.

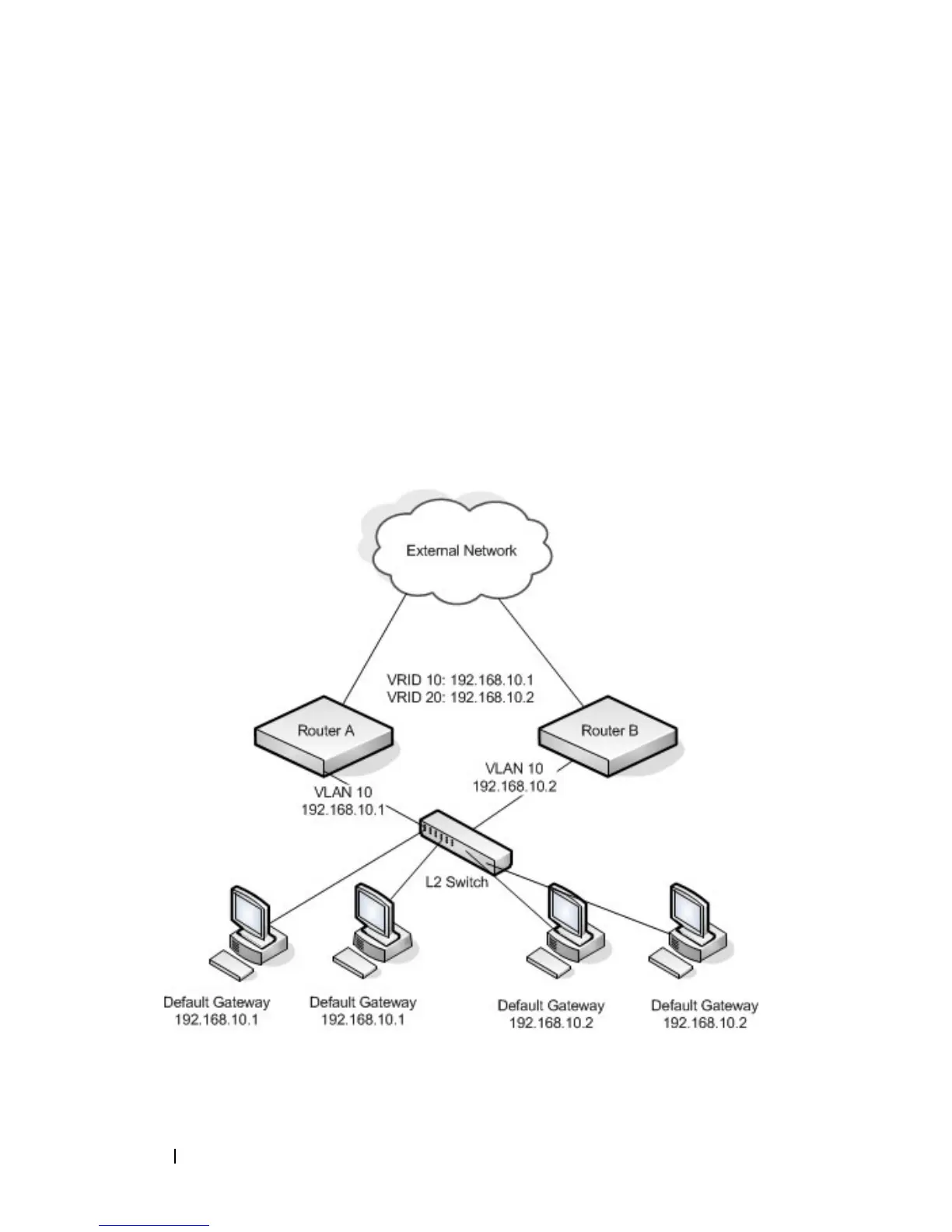

Figure 37-9. VRRP with Load Sharing Network Diagram
