1370 Managing IPv4 and IPv6 Multicast

IGMP Proxy Configuration Summary

Use the Configuration Summary

page to display proxy interface

configurations by interface. You must have configured at least one VLAN

routing interface configured before data displays on this page.

To display the page, click IPv4 Multicast

→

IGMP

→

Proxy Interface

→

Configuration Summary in the navigation panel.

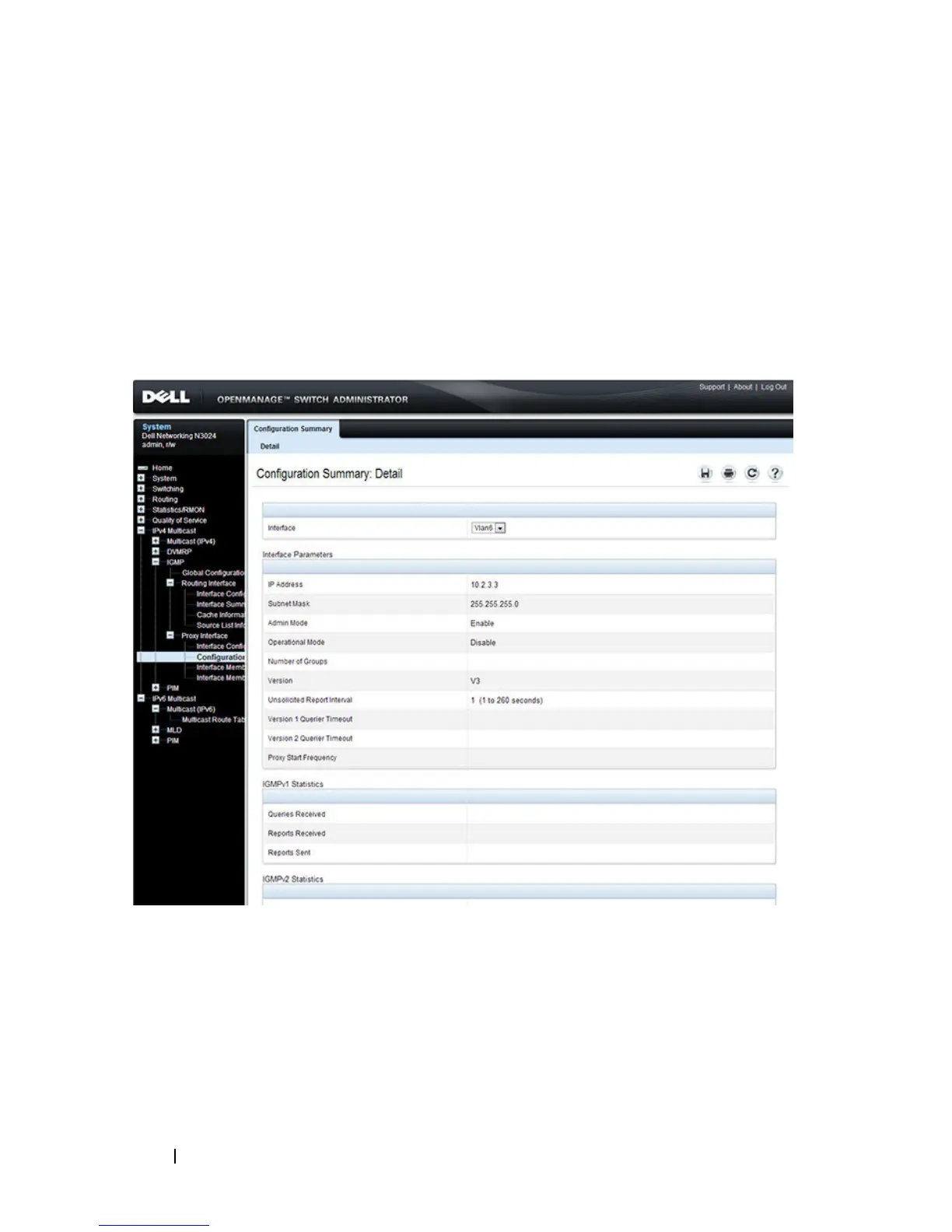

Figure 43-23. IGMP Proxy Configuration Summary

Default Chapter1
- Series Switches1
- Table of Contents3
