Dell Networking N4000 Series User Manual

1318 Configuring Class-of-Service
Configuring CoS (Web)
This section provides information about the OpenManage Switch
Administrator pages for configuring and monitoring CoS features on a Dell
Networking N2000, N3000, and N4000 series switches. For details about the
fields on a page, click at the top of the page.
Mapping Table Configuration
Use the Mapping Table Configuration page to define how class of service is
assigned to a packet.
To display the
page, click Quality of Service → Class of Service → Mapping
Table Configuration in the navigation panel. CoS(802.1P) is the default
mode, so this is the page that displays when Mapping Table Configuration is
selected from the Class of Service menu page.

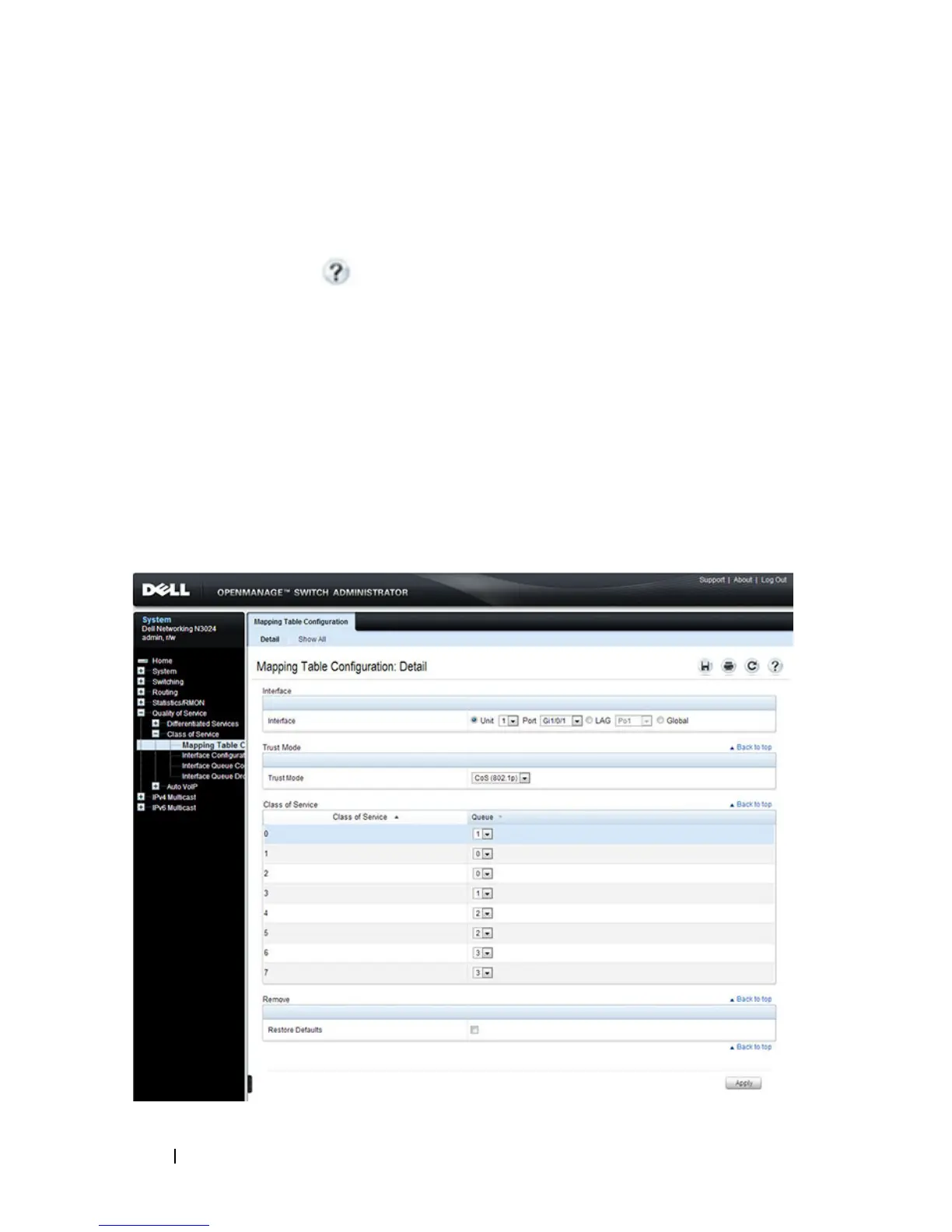

Figure 41-1. Mapping Table Configuration — CoS (802.1P)
