290 Managing General System Settings

CLI Banner

Use the CLI Banner page to configure a message for the switch to display

when a user connects to the switch by using the CLI. You can configure

different banners for various CLI modes and access methods.

To display the CLI Banner page, click System

→

General

→

CLI Banner in

the navigation panel.

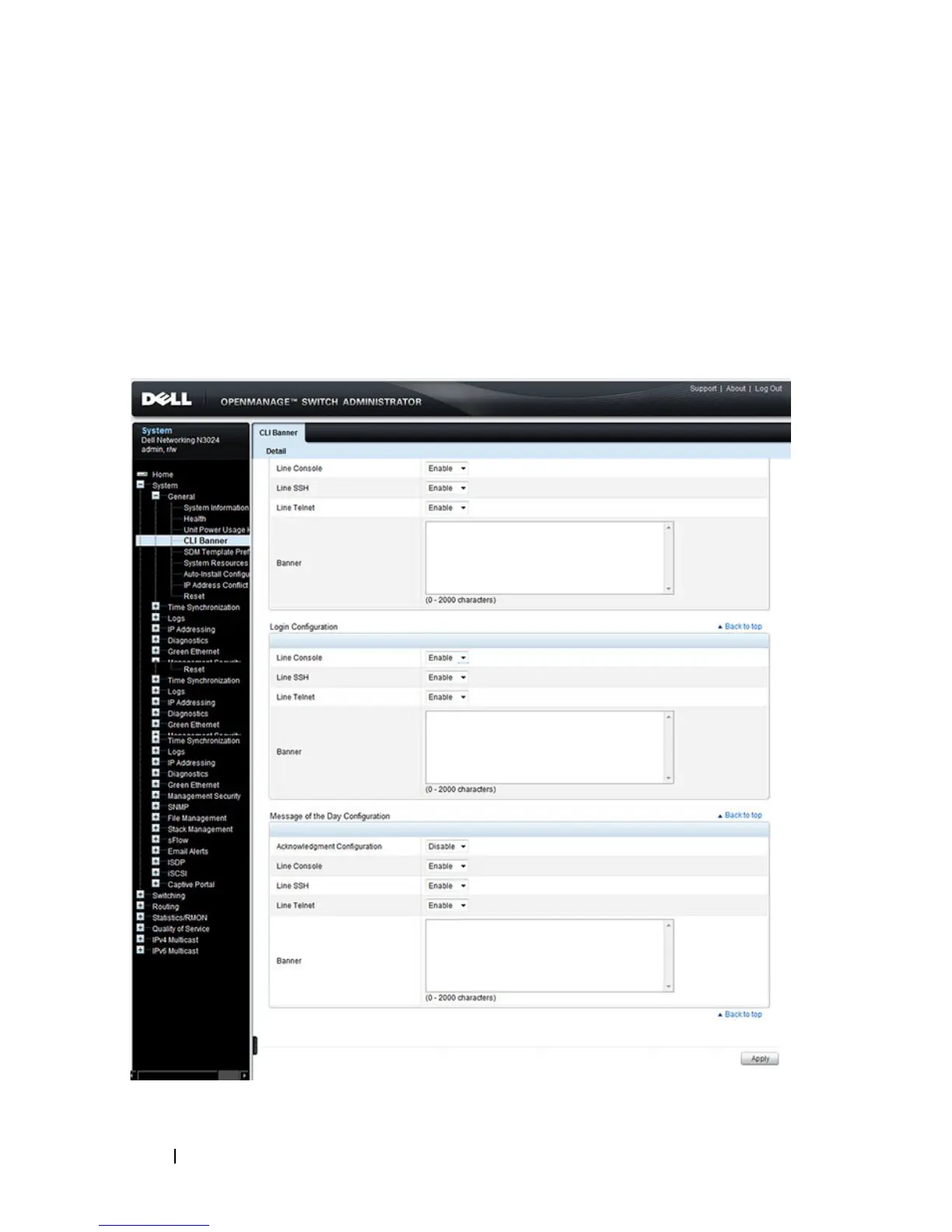

Figure 12-5. CLI Banner

Default Chapter1
- Series Switches1
- Table of Contents3
