Delta AH Series User Manual

AH Motion Controller – Operation Manual
7-24
_7
mc4AB (3)
Counterclockwise
Clockwise
FP A-phase pulses
RP B-phase pulses
Quadruple
frequency of
A/B-phase pulses
7.9.2.2 Setting a Master/Slave Axis and Operating an Electronic Cam

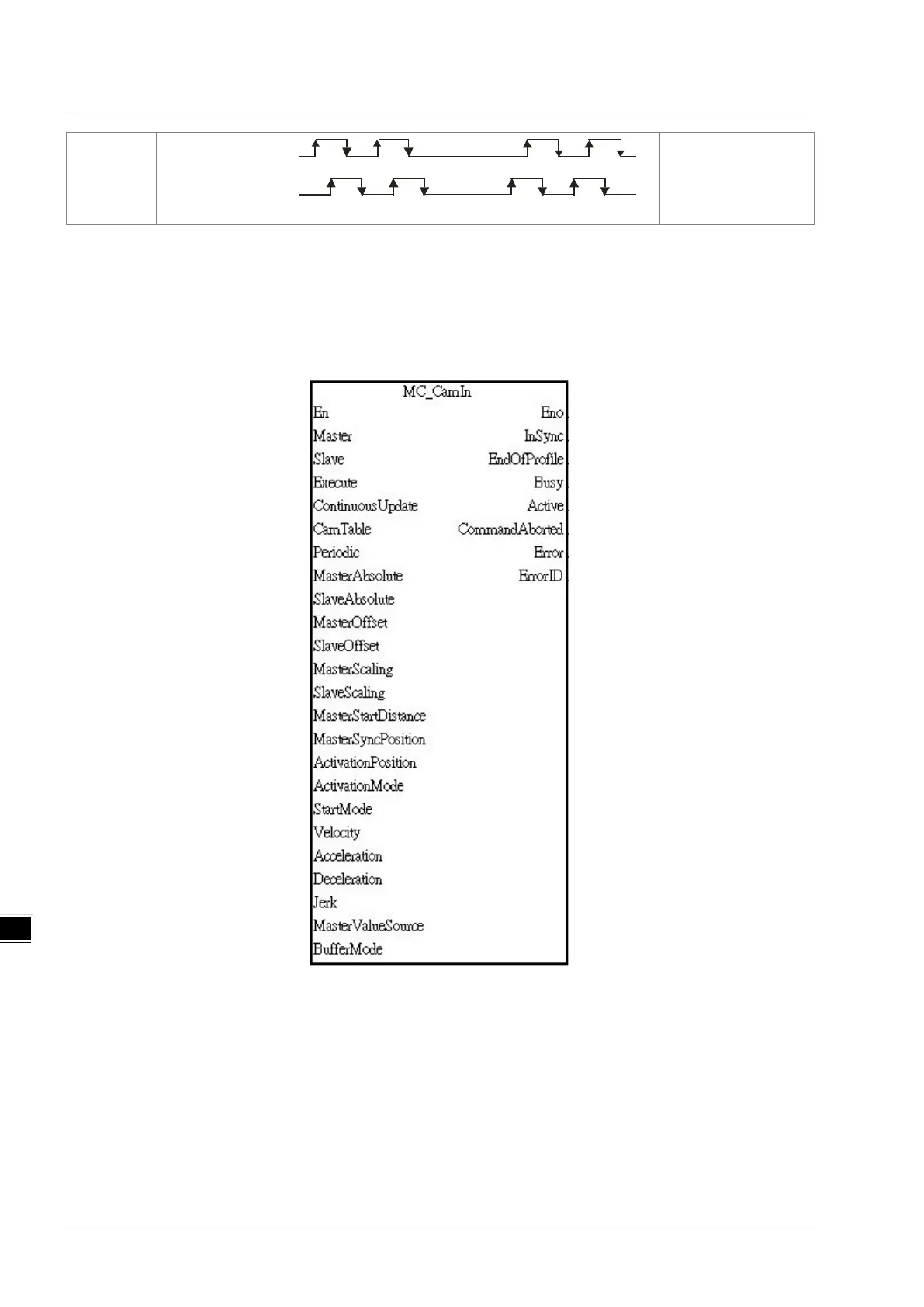

You can set a master axis and a slave axis, and operate an electronic cam by MC_CamIn.
After the setting of the inputs in the motion control function block MC_CamIn is complete, the instruction will be enabled if
Enable is set to True. The outputs in the motion function block MC_CamIn can be used to monitor the electronic cam
motion.
