4_
4.4 Hardware Configuration

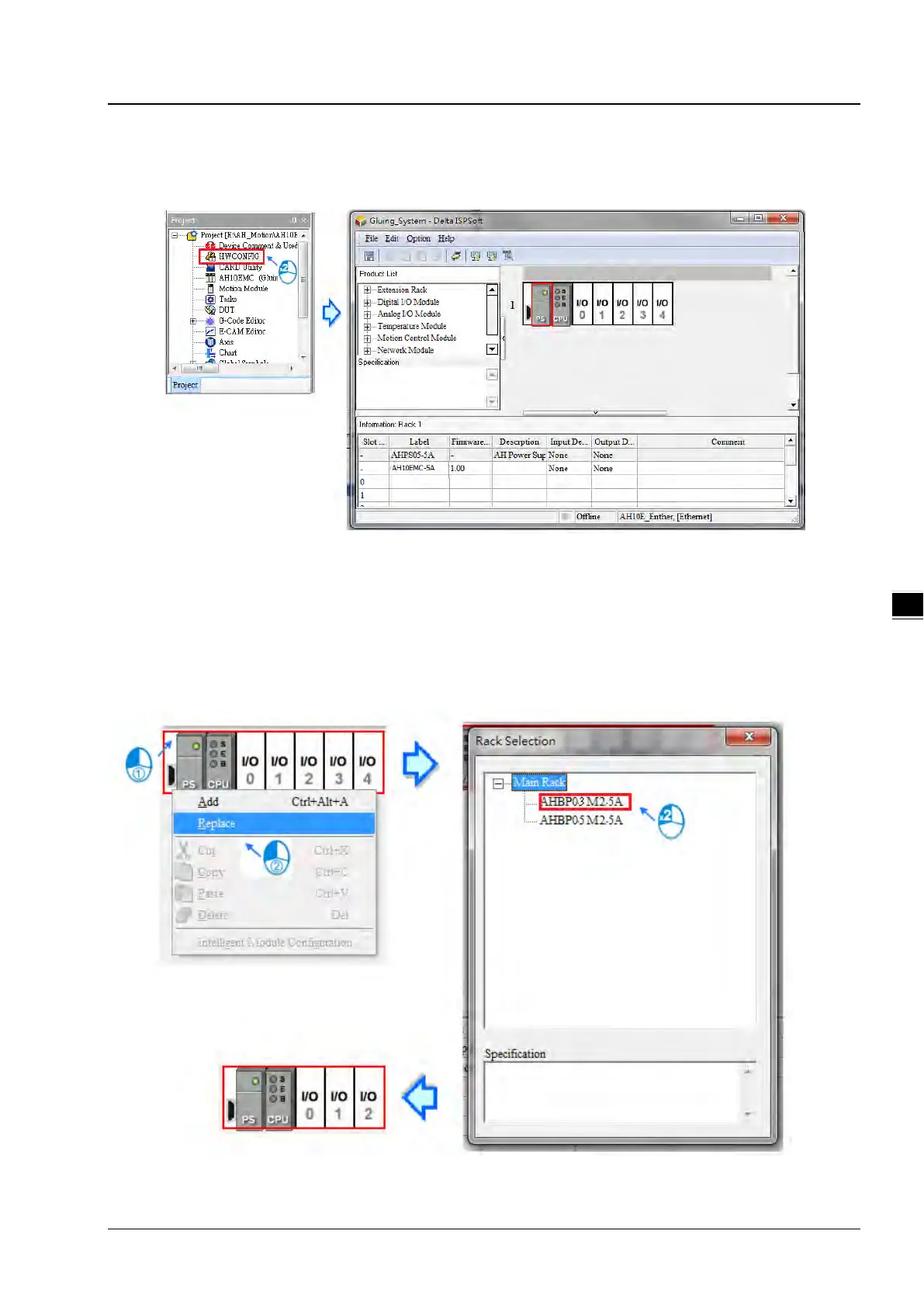

After you double-click HWCONFIG in the project management area, the HWCONFIG window will appear.
4.4.1 Configuring a Module
In the HWCONFIG window, there is a five-slot backplane on which a CPU module and a power supply module are
installed. However, the backplane used in this example is the three-slot backplane AHBP03M2-5A on which the digital I/O
module AH16AP11R-5A is installed.
If you want to replace the backplane, you can right-click the left side of the rack in the system configuration area, click
Replace on the context menu, and double-click AHBP03M2-5A in the Rack Selection window.
