Eaton EASY-E4 Series User Manual

5. Programming on the device
5.4 Working with contacts and coils

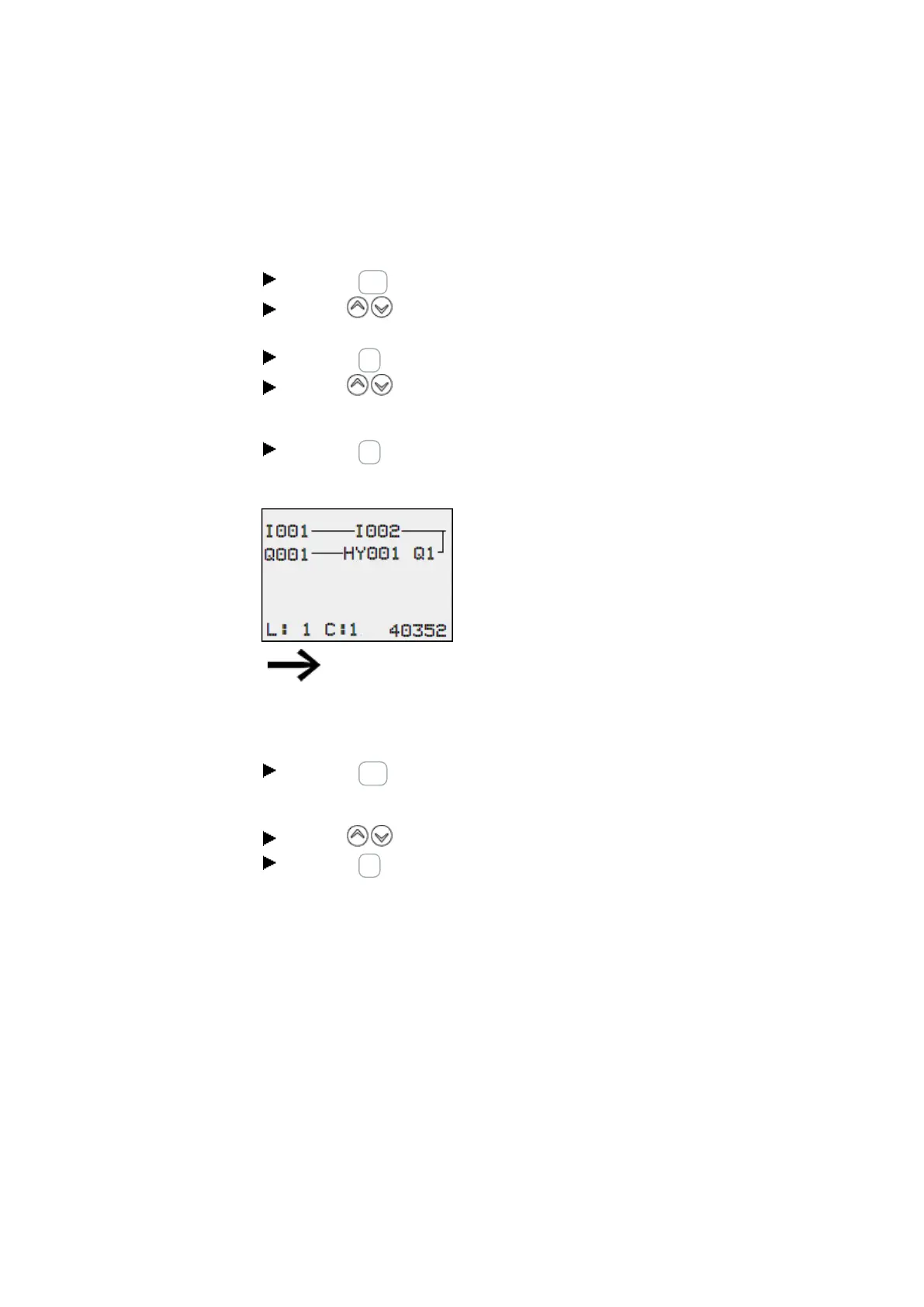

5.4.9 Got to a rung
The GO TO function can be used to go to a different rung.
Press the ESC button.
Use the cursor buttons to select the
GO TO menu.
Press the OK button.
Use the cursor buttons to select the rung you want (L…).
Always the first contact of the rung is displayed.
Press the OK button.
You can use the "GO TO" function to jump to any rung, up to the
last wired rung.
5.4.10 Saving the circuit diagram
Press the ESC button.
A menu will appear in the status line.
Use the cursor buttons to switch to the SAVE menu.
Press the OK button.
The entire program, circuit diagram and function blocks will be saved.
After saving, you will be returned to the previous menu from which you have opened
the circuit diagram.
140
easyE4 11/18 MN050009 EN www.eaton.com
