6. Function blocks
6.4 Timing and counter relay example
6.4 Timing and counter relay example
A warning light flashes when the counter reaches 10. In this example the function
blocks C01 and T01 are wired in the standard circuit diagram and their inputs and out-
puts are defined.

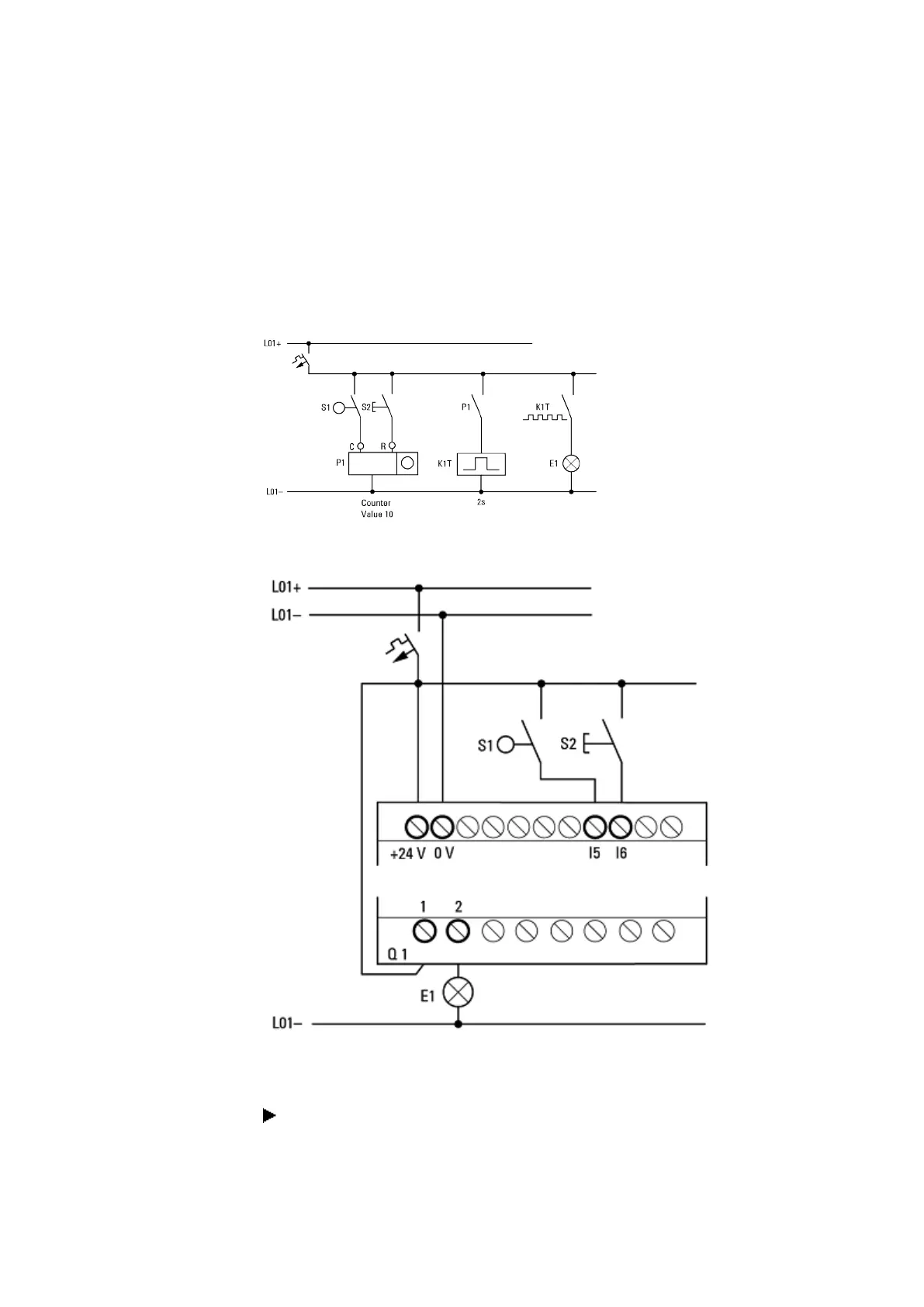

Figure 216: Hardwiring with relays
Figure 217: Wiring with easyE4
Enter circuit diagram
Enter the following circuit diagram while using the EDP programming language.
454
easyE4 11/18 MN050009 EN www.eaton.com
