5. Programming on the device
5.6 Working with function blocks
Function, special function, parameter
display
Displays the func-
tion blocks used
Current cursor line
Free memory in bytes

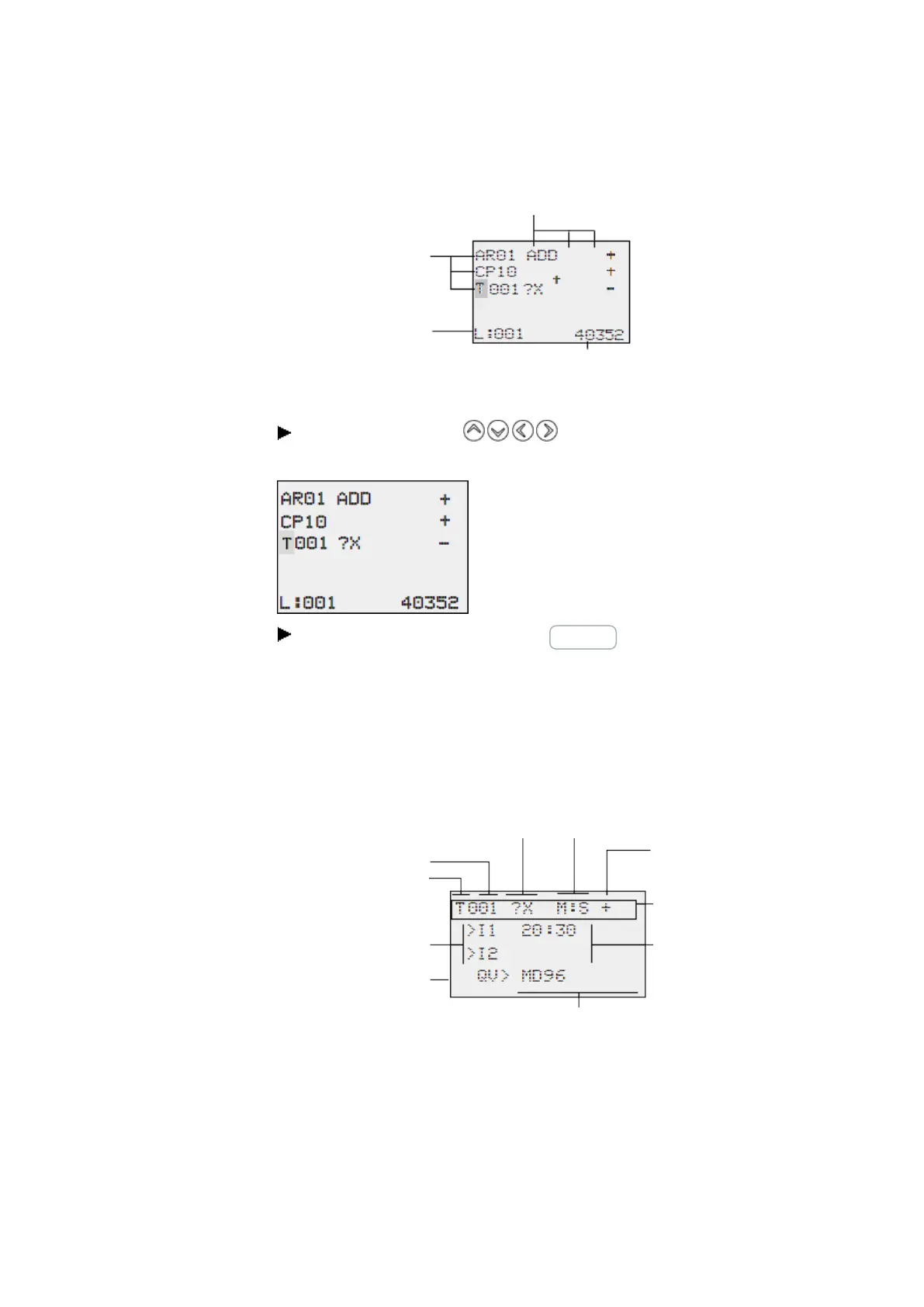

Figure 93: Explanation of the function block list
Use the cursor buttons to select the required function block from
the function block list, in this case timing relay T01.
Confirm the selection by clicking the OK button.
The timing relay is displayed in the function block editor.
5.6.3 Configuring parameters in the function block editor
The function block can be fully parameterized in the function block editor.
This is accessed via the function block list.
Access is blocked if the program is password protected.
Action
Unit/special function
Function block num-
ber
Function block name
Parameter display (+ appears/ –
does not appear)
Basic parameters
Function block
inputs
Variable,
operand for inputs
Function block out-
puts
Variable, operand for outputs
Figure 94: Manufacturer function block display in the function block editor
easyE4 11/18 MN050009 EN www.eaton.com
157
