6. Function blocks
6.1 Manufacturer function blocks

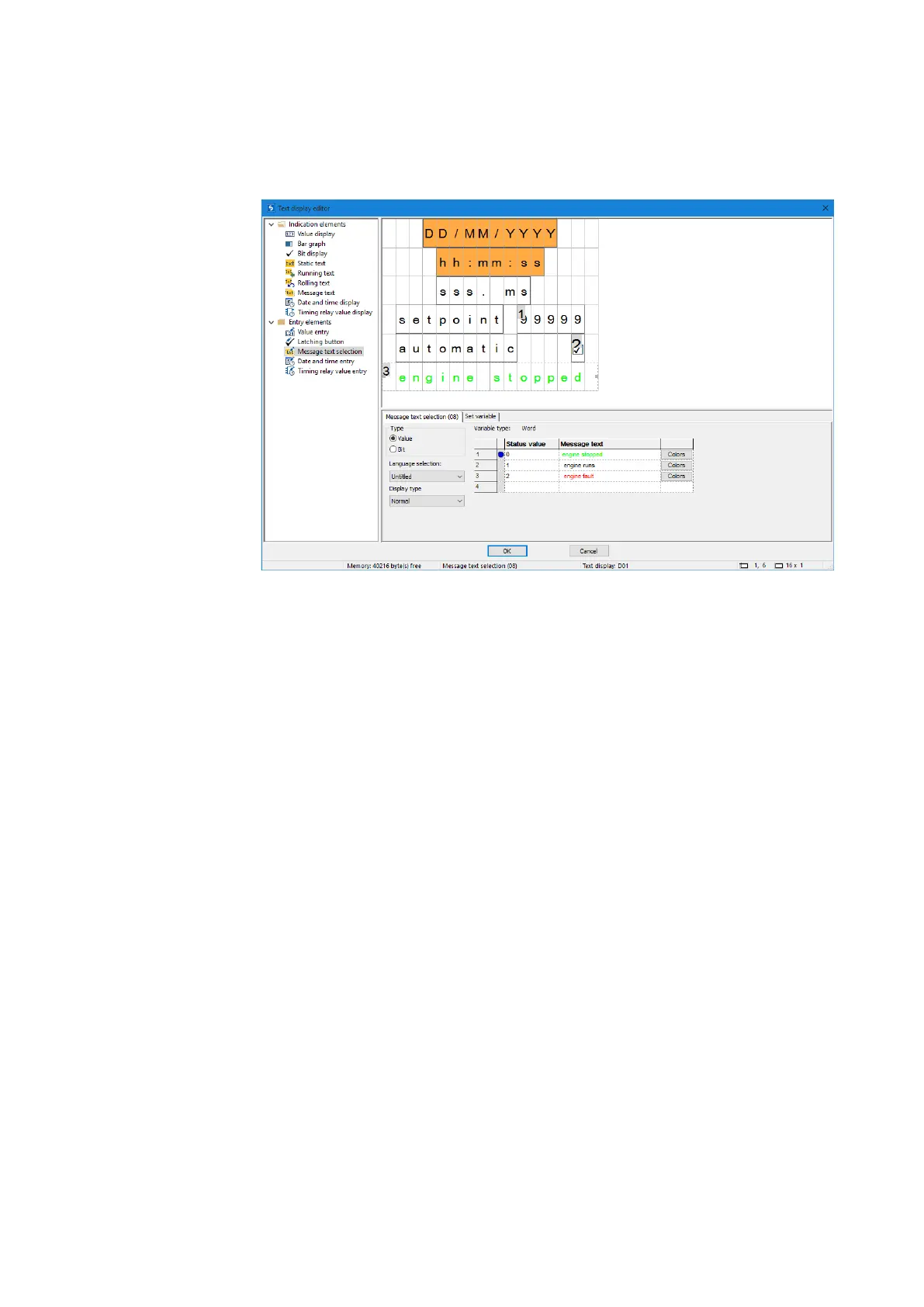

Message text selection
Normally, message texts are activated by the program on the easy. However, it is also
possible to have operators call message texts as "input" for the program on the easy
(when selecting operating modes, for example). One example is a scenario in which a
machine can produce various colors and the operator needs to select one: black socks,
brown socks, blue socks.
This element is configured exactly the same way as a message text – please refer to →
Section "D - Text display editor", page 366.
The only difference is that the message text selection element allows for operator input
– please refer to → Section "Entering data on the display via a D text function block",
page 376.
Date and time entry
This element is configured exactly the same way as a date and time display – please
refer to → Section "Entering data on the display via a D text function block", page 376
The only difference is that the element allows for operator input.
Timing relay value entry
This element is configured exactly the same way as a timing relay value display –
please refer to → Section "Entering data on the display via a D text function block", page
376
The only difference is that the element allows for operator input.
378
easyE4 11/18 MN050009 EN www.eaton.com
