Eaton EASY-E4 Series User Manual

1. easyE4 control relays description
1.3 Device models - versions and part nos.
1.3.2 Base device versions
The available base device versions are different from each other in terms of:
l The type of operating voltage
l The type of outputs
l The available controls

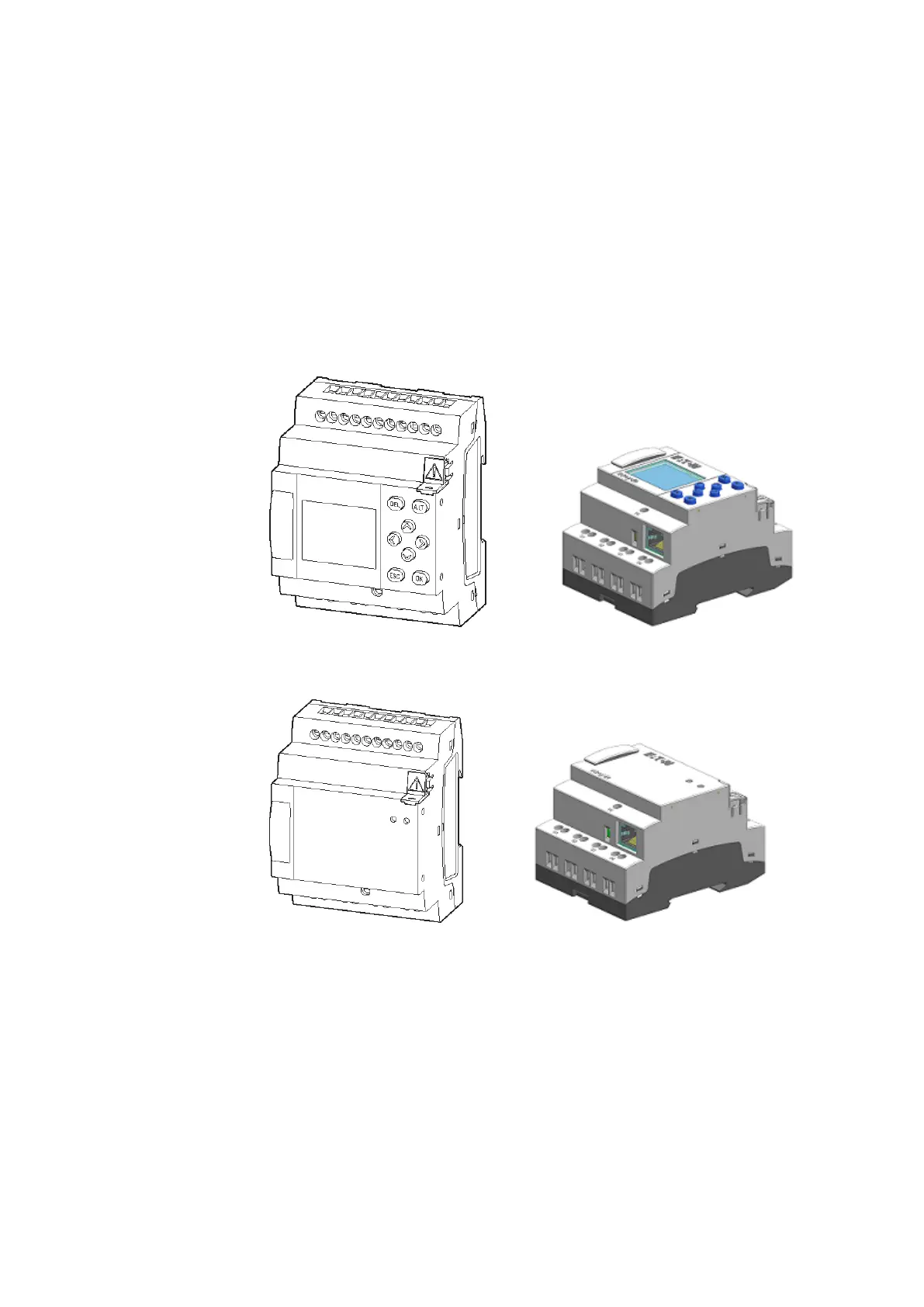

EASY-E4-...-12...C1
Figure 1: Devices with display and button controls
EASY-E4-...-12...CX1
Figure 2: Devices with LED indicators used for diagnostics
22
easyE4 11/18 MN050009 EN www.eaton.com
