101
To disconnect the wires from the outlets and the oven
and fluorescent switches it is necessary to roll control
mounting panel forward.
To roll the control mounting panel forward:
1. Disconnect power from the range and obtain access
to the rear of the range.
2 Remove the five screws holding the control mounting
panel to the back panel of the range and the two
screws holding the end caps to the back panel of
the range. Lift the backguard up and roll it forward.
Seven screws
Removing the 120 volt outlet:
1. Disconnect power from the range, raise the top trim,
roll the control mounting panel forward and disconnect
the wires to the outlet.
2. The outlets, one on each side, are mounted to
brackets that are held to the top of the control
mounting panel by tabs and slots on one end and
a screw on the other. Remove the screw and slide
the bracket sideways.
Screw Tabs and slots
3. The outlet is held in the bracket by spring loaded
tabs. To remove the outlet from the bracket
squeeze the tabs and pull outlet out of the bracket.
One tab on each side

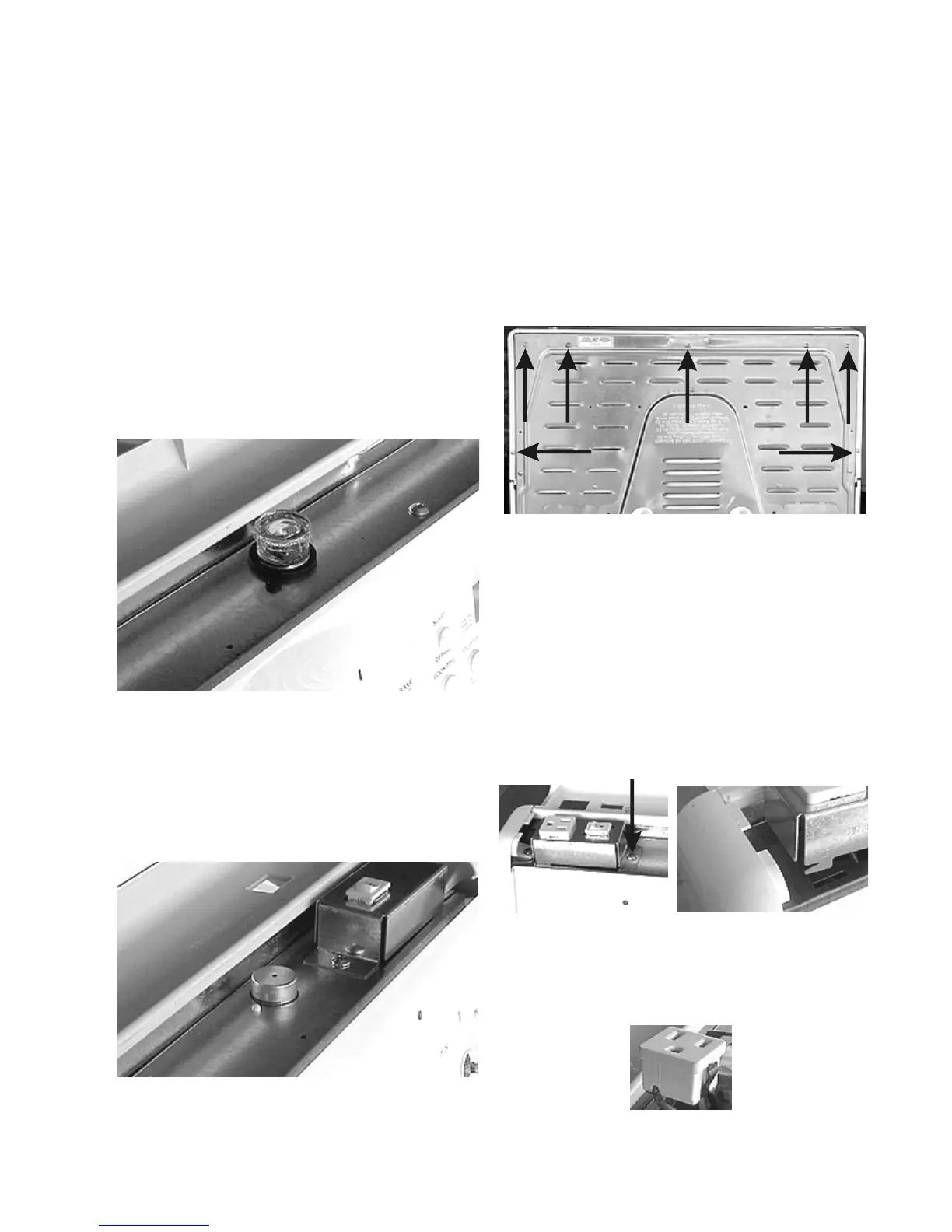

SECTION E - 30 DISASSEMBLY AND
REPLACEMENT OF PARTS
Note: To reinstall parts, reverse all procedures.
Top trim on backguard area:
The top trim is hinged at the rear and snaps over the
end panels in the front. When the trim is raised the 15
amp fuse, fluorescent lamp starter, regular outlets,
oven light switch and fluorescent lamp switch are
exposed.
Removing the 15 amp fuse:
1. Raise the front of the top trim and turn the fuse
counter clockwise.
15 amp fuse
Removing the fluorescent lamp starter:
1. Raise the front of the top trim and turn the starter
about an 1/8 of a turn counter clockwise and lift it
out.
Starter
