18
2. Install Anti-Tip Bracket(s).
3. Serial Plate Information
The serial plate is located on the frame and is
visible when the drawer is opened.
See the serial plate for the following information:
A. Model, lot and serial number of range.
B. Kilowatt rating (power requirements).
C. Voltage ratings.
4. Electrical Connection Requirements
This appliance must be properly installed and
grounded by a qualified technician in accordance
with the National Electrical Code ANSI/NFPA No.
70--latest edition--and local electrical code
requirements.
This appliance may be connected by means of
permanent "Hard Wiring" or "Power Supply Cord
Kit."
When hard wiring, do not leave excess wire in range
compartment. Excess wire in the range
compartment may not allow the access cover to be
replaced properly, and could create a potential
electrical hazard if wires become pinched. Connect
only as instructed under "WIRING INSTRUCTIONS"
in sections 6 and 7. When using flexible conduit or
range cable, use flex connector or range cable
strain relief.
NOTE: Only use copper wire in connection to
terminal block.
4B. Models Requiring Power Supply Cord Kit
RISK OF FIRE OR ELECTRICAL
SHOCK MAY OCCUR IF AN INCORRECT SIZE
RANGE CORD KIT IS USED, THE INSTALLATION
INSTRUCTIONS ARE NOT FOLLOWED OR STRAIN
RELIEF BRACKET IS DISCARDED.
This appliance may be connected by means of a
power supply cord. Only a power supply cord kit
rated at 40 amperes, 125/250 volts minimum, and
marked for use with ranges shall be used. Cord
must have three (3) conductors. Terminals on end of
wires must be either closed loop or open-end spade
lugs with upturned ends. Cord must have strain relief
clamp.
NOTE: MOBILE HOME INSTALLATION OR AREAS
WHERE LOCAL CODES DO NOT PERMIT
GROUNDING THROUGH NEUTRAL, A FOUR (4)
CONDUCTOR POWER CORD MUST BE USED.
A 1-3/8" knock-out hole is provided at the bottom of
the range terminal box for connecting the power
supply cord kit to the range terminal block (see
Figures 2 and 3).
5. Permanent Hard Wiring (3 or 4 Wires)
Insert the residence 3-wire power supply cable
through the 1-1/8" hole at the bottom of the range
terminal box (see Figure 2). For mobile home
application or where connections with a 3-wire
power supply cable is not allowed, use a 4-wire
power supply cable (for connections, see Figure 3).
Use a U.L. approved strain relief clamp to secure
the cable to the terminal box.
6. Wiring Instructions – 3-Wire Supply Cable
ELECTRICAL GROUND IS
REQUIRED ON THIS APPLIANCE.
This appliance is manufactured with the neutral
terminal connected to the frame. If local codes
permit connection of the frame grounding conductor
to the neutral wire of the copper power supply cord:

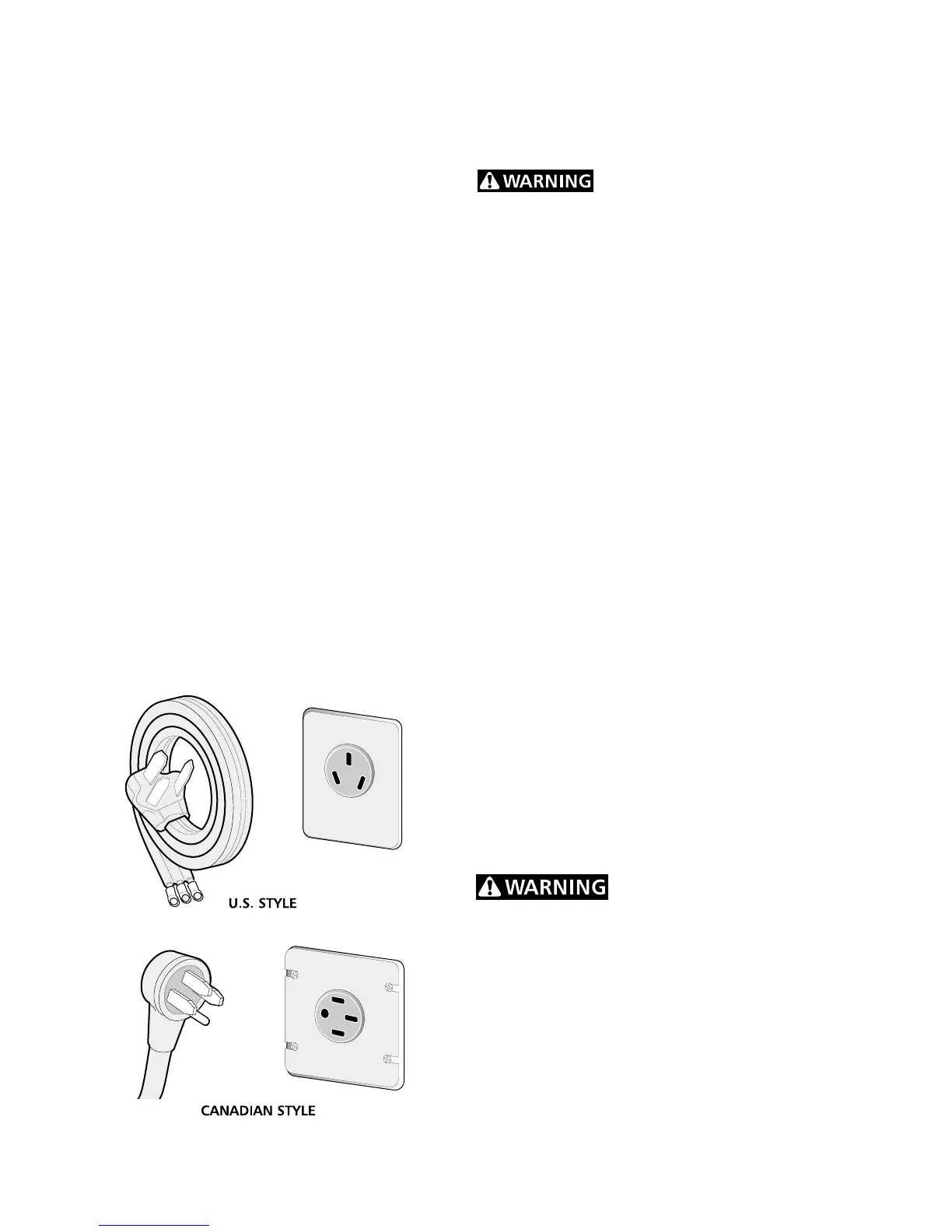

Figure 1
