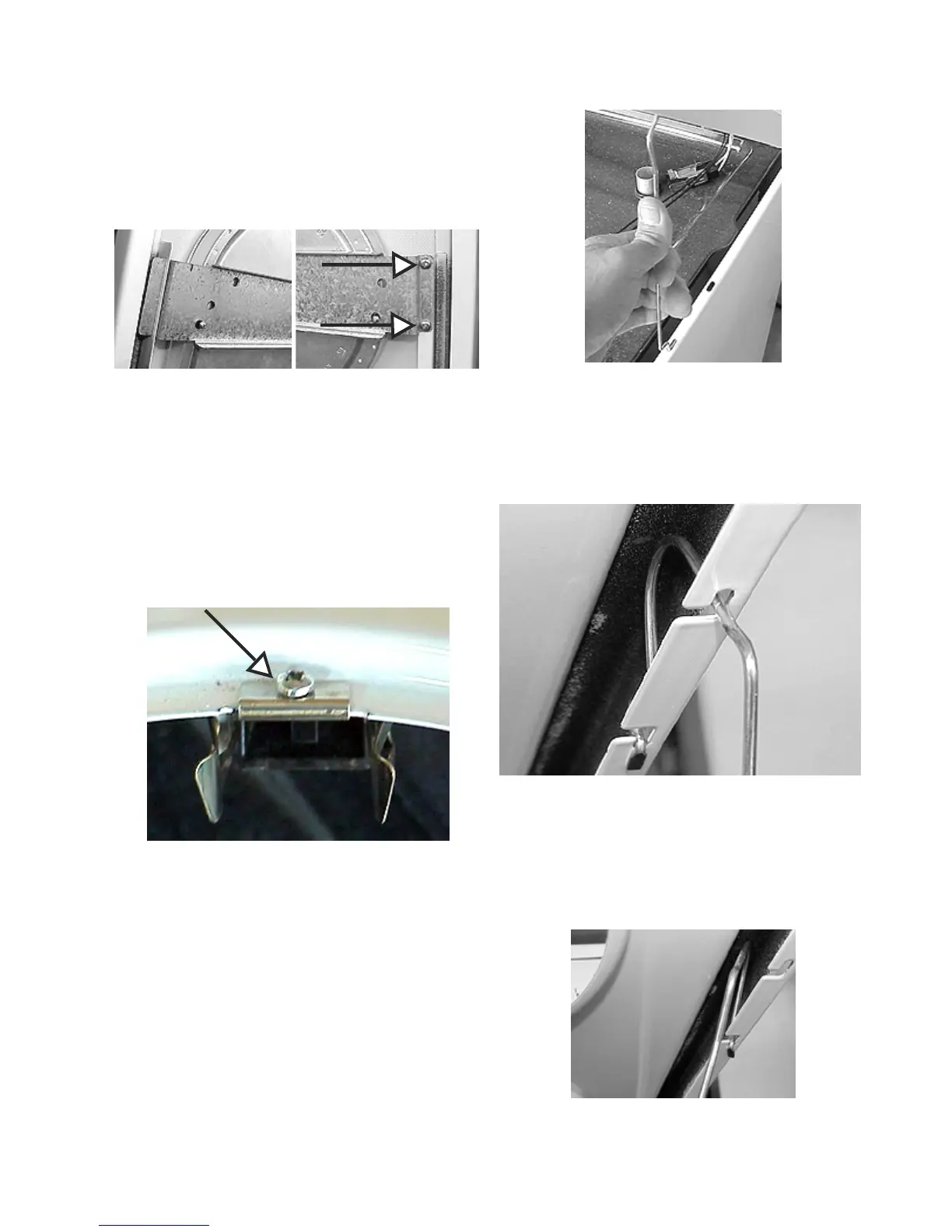

2. The elements are held against the glass by two bars,
one for the two front elements and one for the two
back elements.
3. The bar is held to the main top by two screws on one
end and a tab on the other. Remove the two screws
and swing the bar down.
Tab Two screws
4. Mark and disconnect the wires.
Terminal block:
1. Disconnect power and remove the element and drip
pan.
2. Remove the one screw holding the terminal block to
the main top.
One screw
Note: When replacing the terminal block the replace-
ment terminal block will have two short leads and ce-
ramic wire nuts.
Removing the main top lift and lock rods on coil
element models:
1. Raise the main top and bend the rod to release it
from the bodyside.
Bend rod
2. Release the rod from main top pushing back on the
rod to disengage it from the front slot and then tip
the rod to the side and remove it fromthe rear slot.
Slots in main top
3. When reinstalling the lift an lock rod, insert the rod
in the rear slot, then tip the loop of the rod so that
it goes into the raise part of the top. Install the rod
into the front slot.
Loop
