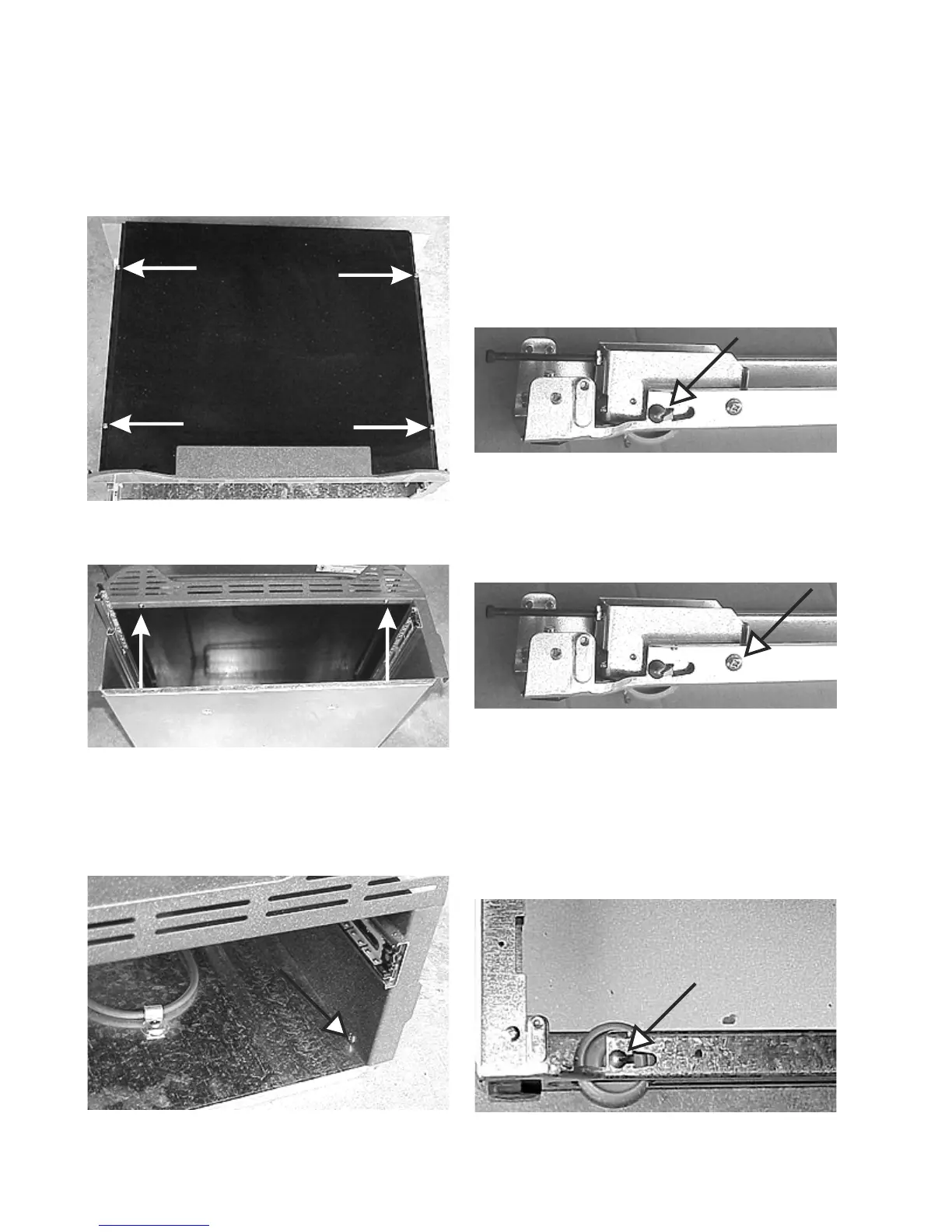

Removing the top of the warmer drawer cavity:
1. Remove the warmer drawer cavity from the range.
2 Remove the four screws from the top, two screws
from the inside front and lift the top off.
Four screws
Two screws
Removing the bottom of the warmer drawer cavity:
1. Disconnect power and remove the warmer drawer.
One screw in each front corner
2. Remove the three screws holding the element clamps
to the cavity bottom.
3. Remove one screw in each front corner, allow the
bottom to drop down, and pull the bottom forward.
Removing the front roller:
1. Remove the storage drawer glide and bend the
tab that holds the roller rivet in place.
2. Raise the front of the range and pull the rivet out
releasing the roller.
Tab and rivet
Removing the front roller bracket:
1. Remove the front roller and the screw that holds the
bracket to the leveling leg and roller assembly.
One screw
Removing the rear roller:
1. Remove the storage drawer glide and bend the tab
that holds the roller rivet in place.
2. Raise the rear of the range and pull the rivet out
releasing the roller.
Tab and rivet
