Note: Be careful not to scratch the liner.

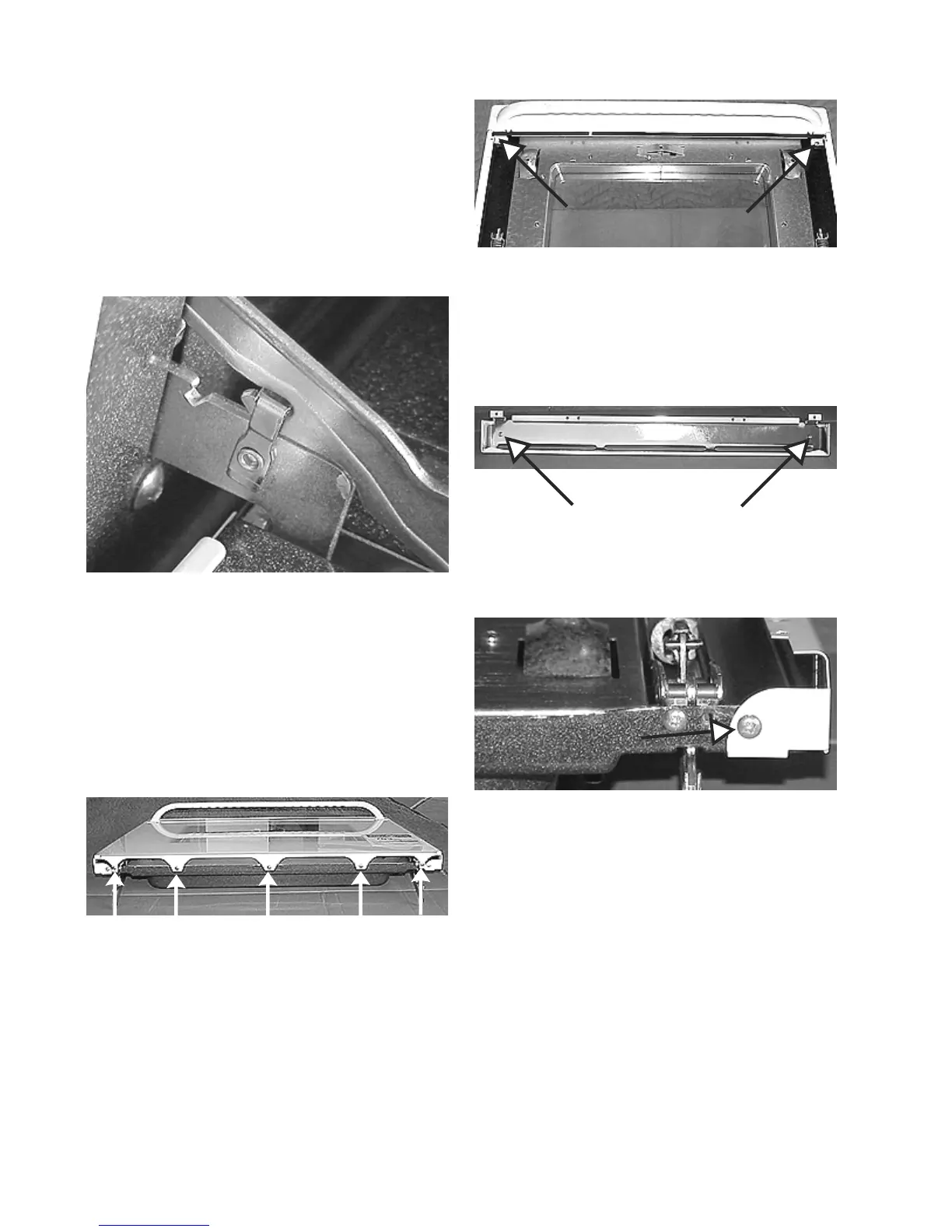

Removing the oven door:
1. Open the oven door completely and lock the hinges
with the hinge lock.
2. Raise the top of the door and at the same time roll
the bottom of the door and the hinges out of the
front frame.
Hinge lock
Removing the bottom trim and outer door glass:
1. Remove the oven door and place it on something
that will not scratch the liner.
2. Remove the five screws holding the bottom glass
trim to the inner door liner and slide the glass and
trim down and off.
Five screws
Removing the upper door trim and handle:
1. Remove the outer glass.
2. Remove the two screws holding the upper trim to
the inner door liner and lift the trim and handle off.
Two screws
Removing the door handle:
1. Remove the outer glass and top trim.
2. Remove the two screws holding the handle to the
trim.
Two screws
Removing the side trim:
1. The trim is held to the side by a tab at the top of
the trim and one screw at the bottom of the door.
Remove the screw and slide the trim down.
One screw
Removing the door hinge:
1. Remove the outer glass and lower trim. The hinge
is held to the inner door liner by two screws at the
bottom of the door and one screw through the inside.
When the bottom trim is removed, then remove the
one screw that holds the hinge to the bottom of the
door.
