127

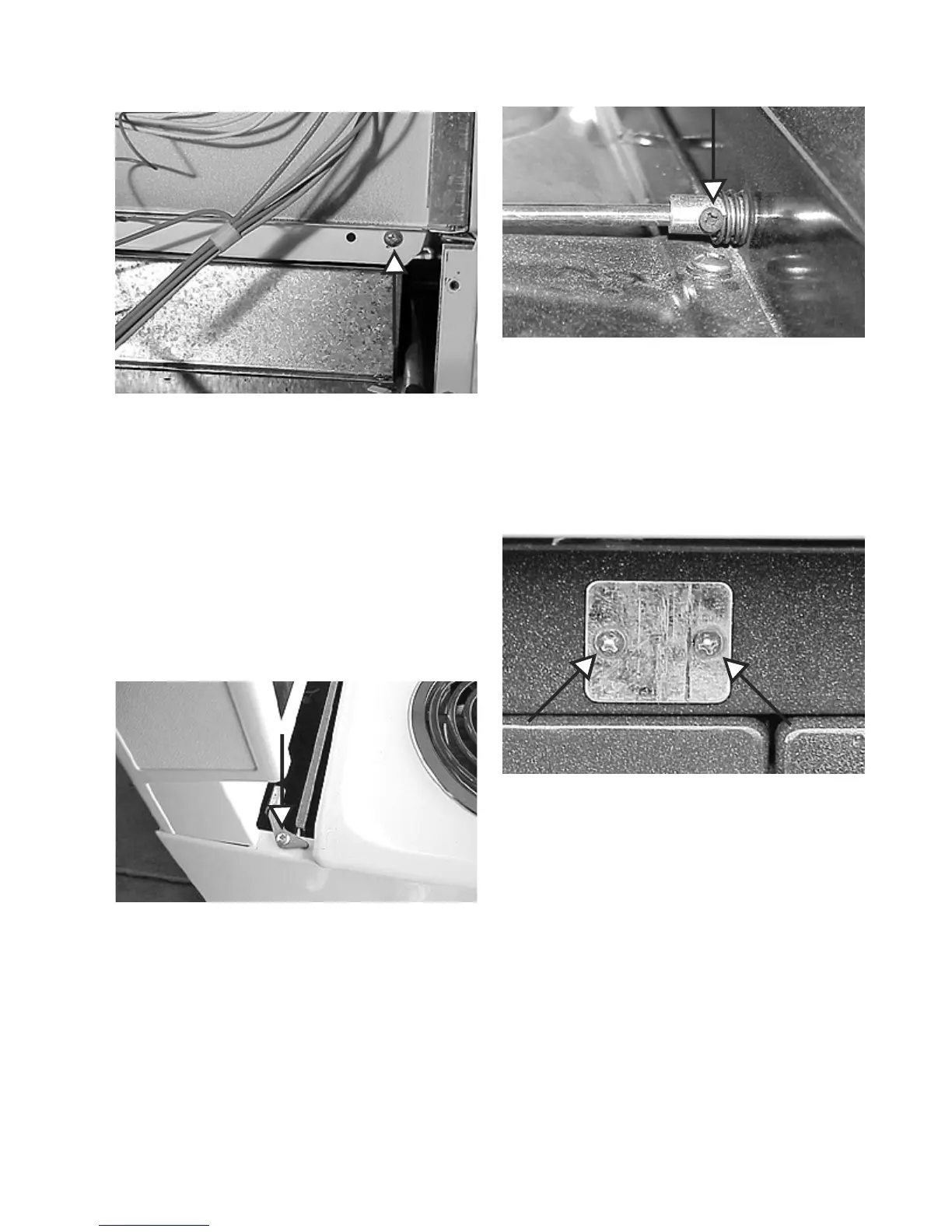

One screw in each hinge
Removing rear hinge:
1. Disconnect power and remove the back panel of the
backguard.
2. Remove the two screws holding the front of the main
top to the oven trim and the two screws holding the
rear of the top to the hinges.
3. Move the top forward and remove the one screw
holding the hinge to the corner brace.
One screw
Removing the lock rod:
1. Raise the front of the main top and remove the screw
holding the rod to the spring and sleeve. Pull the rod
out the front of the range.
One screw
Removing the oven door latch plate:
1. Open the small oven door and remove the two screws
holding the plate to the trim.
Two screws
Removing the small oven door hinges:
1. The hinges are held to the top oven trim and the
front frame by two screws each. Remove the two
screws holding the top hinge, lift the door off, and
remove the two screws holding the bottom hinge.
