Two screws

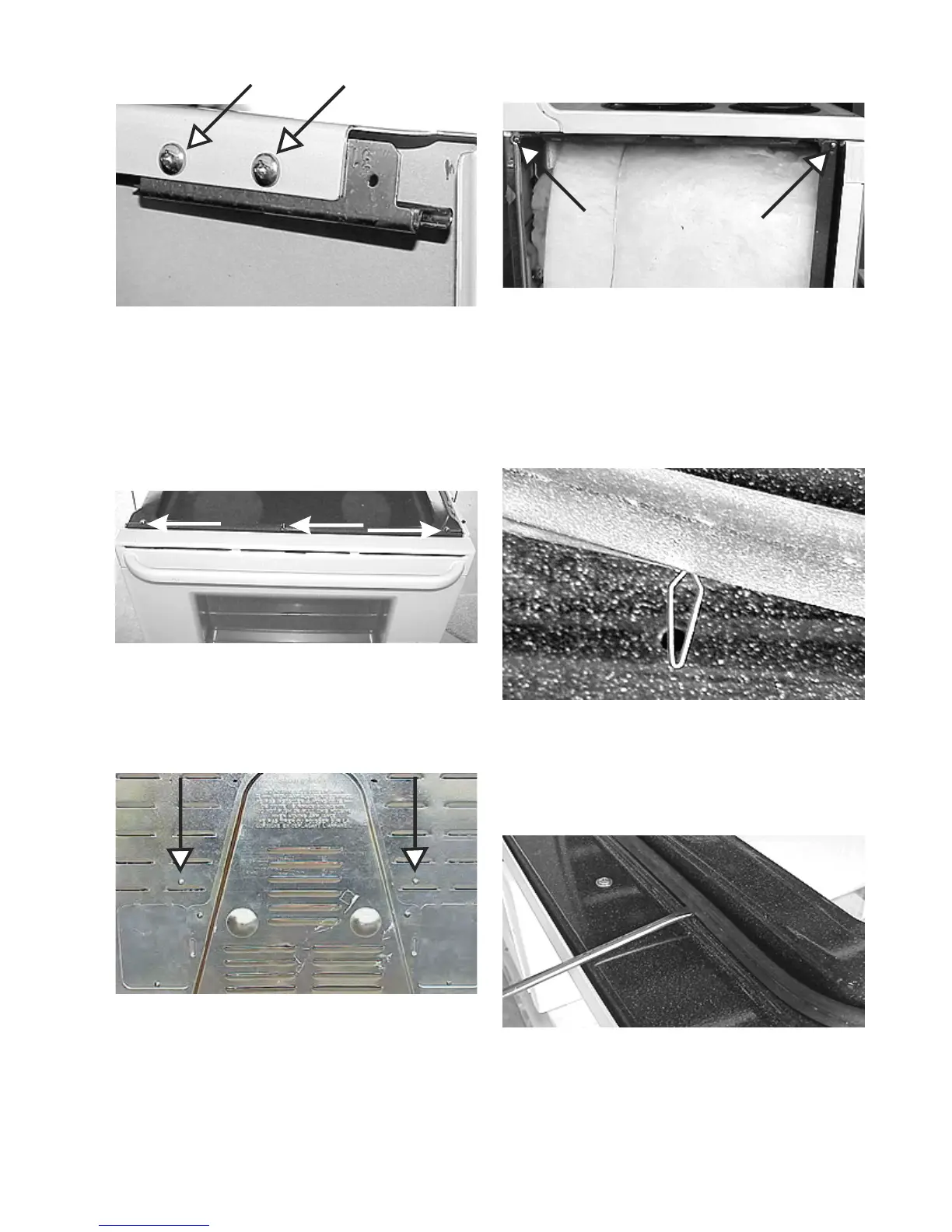

Removing the burner pan: (coil models)
1. Disconnect power and raise the main top.
2. Remove the three screws holding the burner pan to
the front frame.
Three screws
3. Remove the two screws from the rear of the range
holding the burner pan to the rear of the range and
the oven vent from inside the oven.
Two screws
4. Remove both bodysides and remove the two screws
on each side that hold the burner pan to the front
frame and the rear panel.
Two screws
Oven door area
Removing the oven door seal:
1. The oven door seal is held to the inner door liner by
spring clips.
Clip
2. To remove the seal place a flat blade screw driver
between the seal and the liner beside the clip and
lift the screw driver.
Screw driver
Note: Door seal shown is for a non self-clean model,
use the same proceedure for self-clean
models.
