SECTION E - 40 DISASSEMBLY AND
REPLACEMENT OF PARTS
Note: To reinstall parts, reverse all procedures.

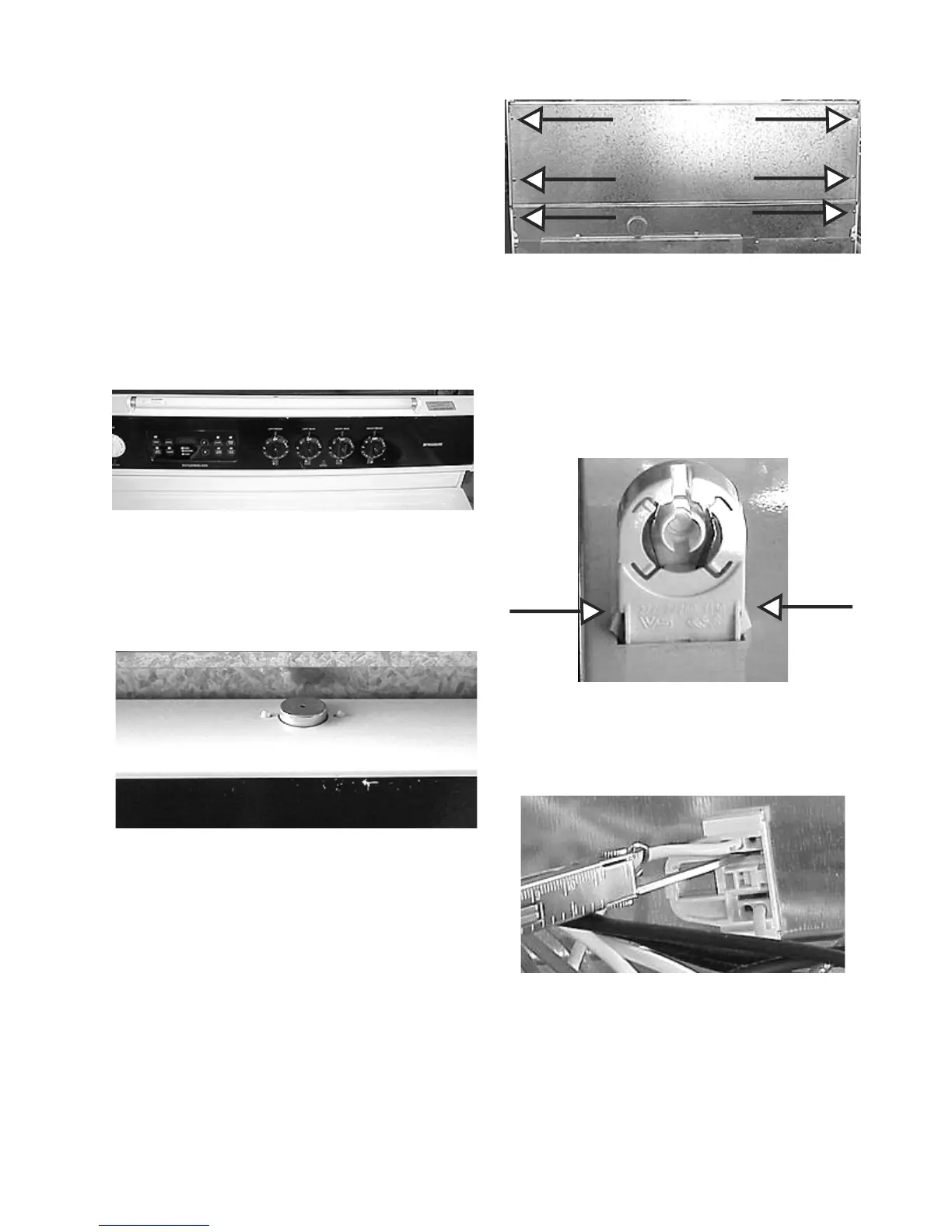

Top trim on backguard area:
The top trim is hinged at the rear and snaps over the end
panels in the front. When the trim is raised the fluorescent
lamp and fluorescent lamp starter are exposed.
Removing the fluorescent light bulb:
1. To remove the fluorescent light bulb raise the top
trim and turn the bulb a quarter turn.
Removing the fluorescent light starter:
1. Raise the top trim, remove the fluorescent light bulb,
turn the starter and lift it up.
Turn the starter
To obtain access to the components in the backguard
remove the back panel of the backguard.
Removing backguard backpanel:
1. The backpanel is held to the range by six screws,
three on each side and tabs at the bottom holding
it to the rear panel of the range.
2. Remove the six screws, tip the top of the panel back
and lift the panel up.
Six screws
Removing the fluorescent light socket:
1. Disconnect power and remove the backguard
backpanel.
2. Squeeze the tabs on the side of the socket and
push it down through the top of the control panel.
Tab on each side
3. Disconnect the wires at the fluorescent light socket
by flat blade to release the wire from the socket.
Disconnecting wires
Removing the fluorescent ballast:
1. Disconnect power and remove the backguard
backpanel.
2. Disconnect the wires to the ballast and remove one
screw holding the ballast to control mounting panel.
