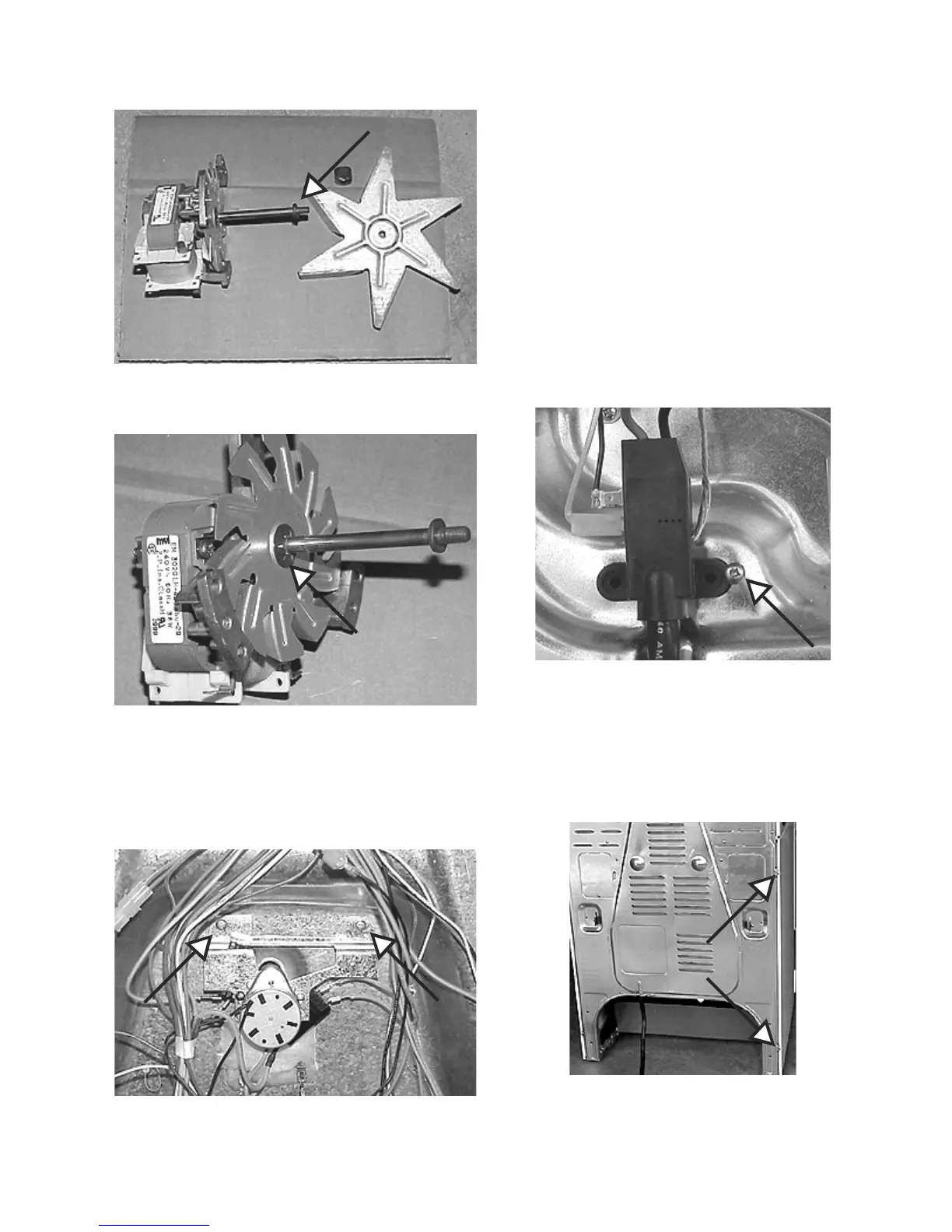

C clip shown on shaft
Tennamen nut
Removing the lock motor assembly:
1. Disconnect power and remove the large rear panel.
Two screws
2. Mark and disconnect the wires from the assembly.
3. Remove the two screws holding the assembly to the
rear of the range.
4. Pull back on the assembly.
Removing the power supply cord:
1. Disconnect power and remove the large rear panel.
2. Disconnect the wires to the terminals and remove
the one screw holding the cord to the rear of the
range.
One screw
Removing the bodyside
1. Raise the main top and disconnect the lift and lock
rod from the bodyside.
Two screws
