137
One screw

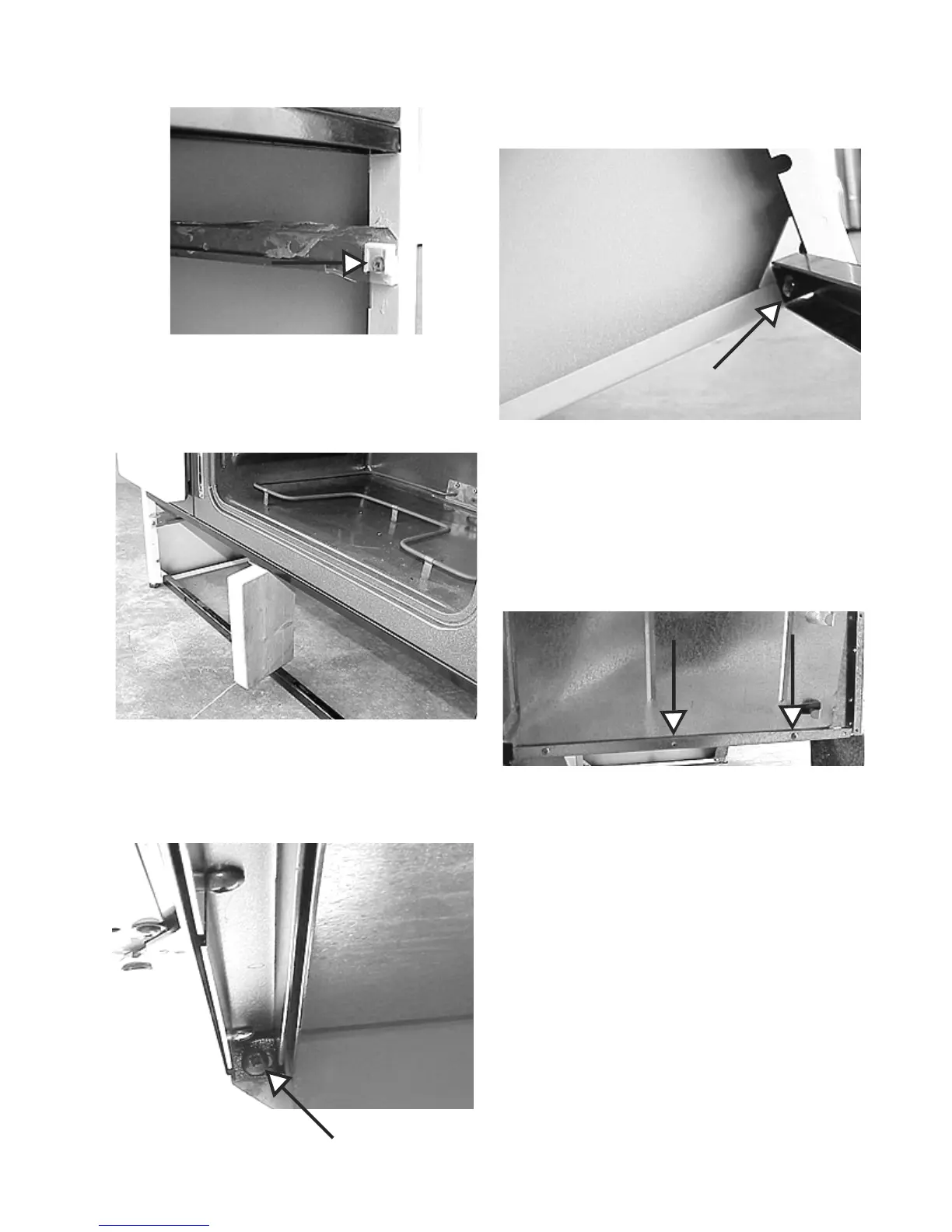

8. Place a block between the upper and lower brace
to hold the range.
Block
7. Remove one screw holding the upper brace to the
side panel.
One screw
9. Remove one screw holding the lower brace to the
side panel and lift the panel off.
One screw
Removing the side heat shield:
1. Remove the bodyside and remove the two screws
holding the side shield to the bottom shield. Flex
the center of the shield out and pull back on the
shield .
Two screws
Removing door switch:
1. Disconnect power, remove the righthand bodyside
and heat shield.
2. Unplug the wires from the switch and squeeze
the tabs on the side of the switch and push it out the
front.
To Next Page
