116

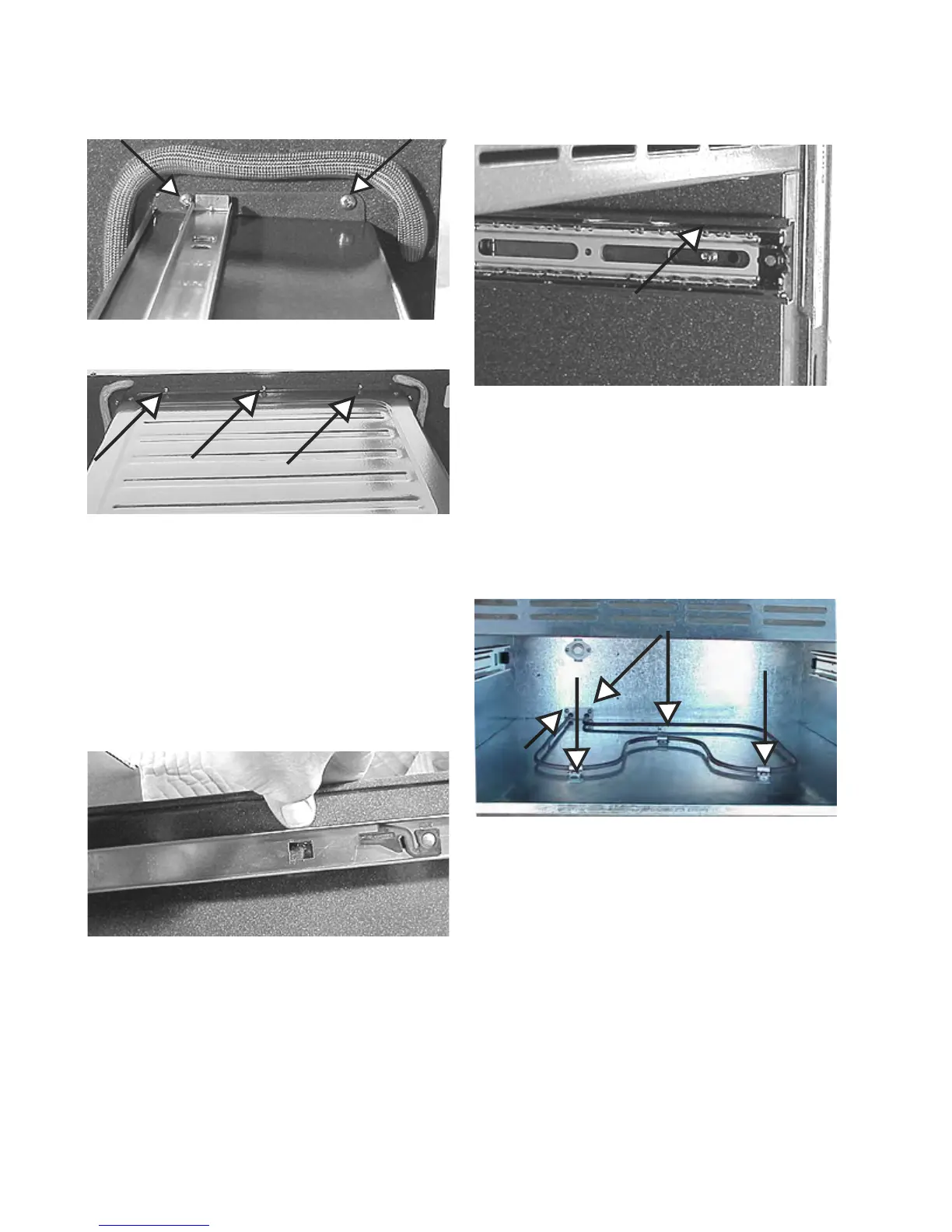

2. To remove the glide, remove the drawer, remove the
screw and pull the glide forward.
One screw
Removing the warmer drawer element:
1. Disconnect power and remove the warmer drawer.
2. Remove the three screws holding the clamps that
hold the element to the bottom and the two screws
holding the element to the bracket.
Five screws
3. Pull the element forward and disconnect the wires.
Removing the warmer drawer thermostat:
1. Disconnect power and remove the warmer drawer.
2. Remove the two screws holding the thermostat to
the rear of the warmer drawer cavity, pull the
thermostat forward and disconnect the wires.
2. Remove the drawer from the range, remove the
front panel, door seal, and the seven screws.
Two screws on each end
Three screws at the bottom
Removing side rail on from the drawer:
1. The side rails are held to the drawer body by two
tabs that insert into the openings in the drawer and
a raised dimple in the drawer body that prevent the
rail from coming out of the slots.
2. To remove the drawer, push in on side of the drawer
and slide the rail down.
Push in on side of drawer
Removing the drawer glides:
1. The drawer glides are held to the frame of the range
by one screw in front and a tab in the rear.
