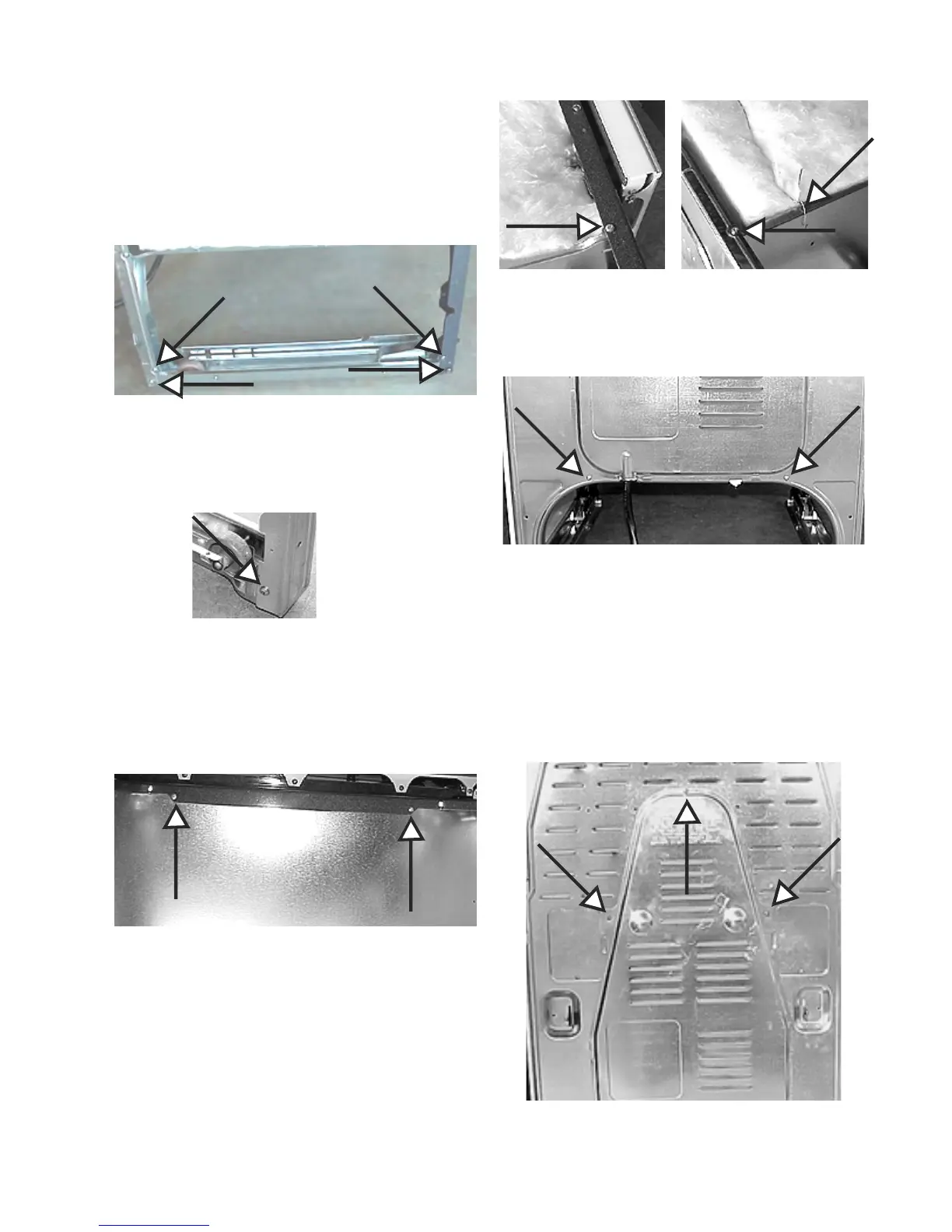

Removing the leveling leg and roller assembly:
1. Remove the storage drawer glide and the bodyside.
2. Remove the two screws from front outside corner
holding the assembly to the front frame and two
screws from the rear outside corner holding the
assembly to the rear panel.
Four screws
3. Remove the one screw from the rear inside corner
and lift the side of the range so the assembly can
drop down.
One screw
Removing the wool shield:
1. Remove the storage drawer and bodysides.
2. Remove the two screws holding the shield to the
front frame.
Two screws
3. Remove two screws from each side one in the front
and one in the rear and remove the wire holding the
insulation against the oven.
Front screw Rear screw and wire
4. Remove the two screws from the rear of the range
and pull the shield out the front.
Two screws
Components mounted to the rear of the range
Removing the large rear panel:
1. Remove the three screws holding the panel to the
rear of the range and lift the panel out of the two
bottom slots.
Three screws
