131

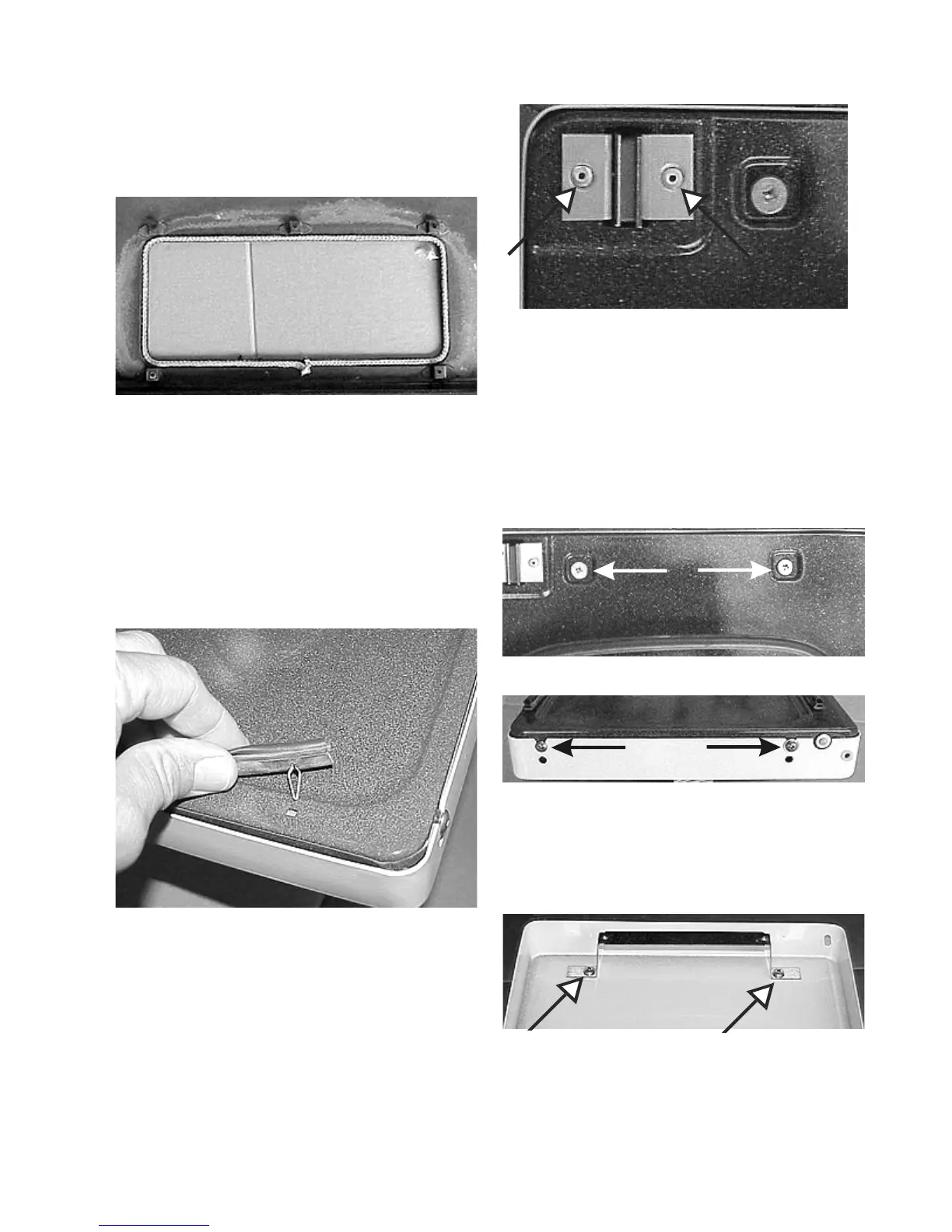

Removing the seal between the inner glass and
the inner door liner in the large oven door:
1. Remove the inner door glass and the seal around
the inner liner window flange.
Rope seal
Small oven door
Removing the small door seal:
1. The door seal is held to inner door liner by spring
clips. To remove the seal insert a flat bladed screw
driver between the seal and the liner by the clip and
lift up on the seal.
Spring clip
Removing the small door magnetic latch:
1. Remove the oven door and lay it on something soft
so that the liner does not get scratched.
2. The latch is held to the inner door liner by two pop
rivets. Drill the rivets out and the latch will lift out.
Use pop rivets when replacing.
Two rivets
Removing the small oven doors outer panel:
1. Remove the oven door and lay it on something soft
so that the liner does not get scratched.
2. Remove two screws at the top of the inner liner and
two screws from the bottom of the door. The panel
will then lift off.
Two screws at the top
Two screws at the bottom
Removing the small door handle:
1. Remove the outer door panel and remove the two
screws holding the handle and spacer to the panel.
Two screws
Removing the small doors heat shield:
1. Remove the outer door panel and lift out the
insulation.
