EMC Connectrix B Series v6.2 ED-DCX-4S-B Hardware Reference Manual
Monitor System Components
Determining the status of a WWN card
The WWN bezel (logo plate) covers the WWN cards. The LEDs on the
WWN cards are not visible unless the bezel is removed.
1. Enter the chassisShow command to display information about
the WWN card. (WWN units correspond to information specific
to the WWN card.) Error messages that may indicate problems
with a WWN card are summarized in Table 9.
Figure 16 displays the WWN bezel (logo plate).

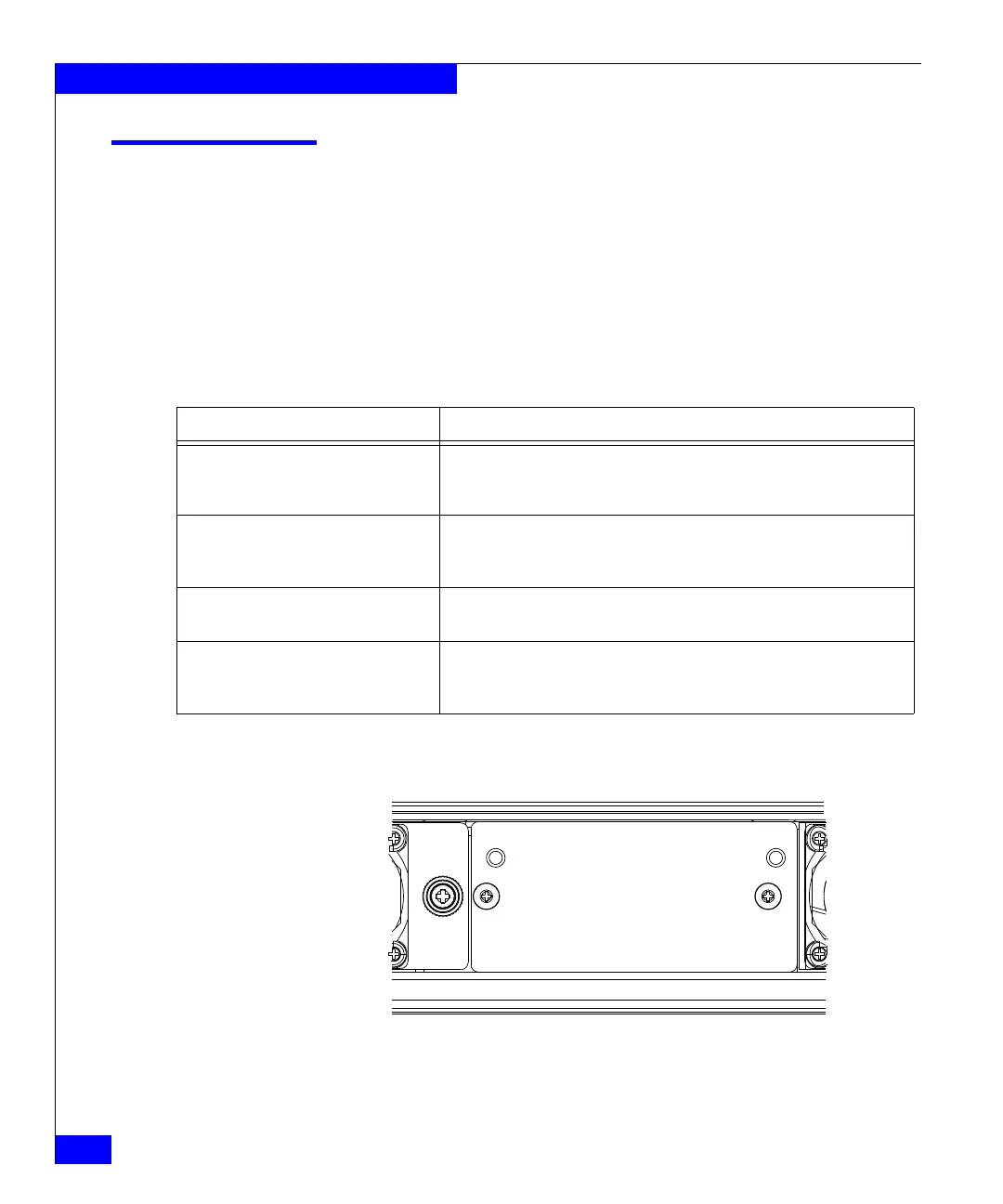

Figure 16 WWN bezel (logo plate)
Table 9 Messages that may indicate WWN card failure
Type of message Sample error message
WWN unit fails its FRU header access. 0x24c (fabos): Switch: switchname, error
EM-I2C_TIMEOUT, 2, WWN 1 I2C timed out: state
0x4
WWN unit is being faulted. 0x24c (fabos): Switch: switchname, Critical
EM-WWN_UNKNOWN, 1, Unknown WWN #2 is being
faulted
WWN unit is not present or is not
accessible.
0x24c (fabos): Switch: switchname, Error
EM-WWN_ABSENT, 2, WWN #1 not present
Writing to the FRU history log
(hilSetFruHistory) has failed.
0x24c (fabos): Switch: switchname, Error
EM-HIL_FAIL, 2, HIL Error: hilSetFruHistory
failed, rc=-3 for SLOT 3
