EMC Connectrix B Series v6.2 ED-DCX-4S-B Hardware Reference Manual
Removal and Replacement Procedures (RRPs)
RRP: Blade filler panel
This section describes how to remove and replace blade filler panels.
Removing a filler panel
Note: A filler panel should be removed only when being replaced with a
port, application, or encryption blade, or new filler panel. Any slot that is not
occupied by a blade should be occupied by a filler panel to ensure correct
cooling of the chassis and protection from dust.
1. Remove the chassis door (“RRP: Chassis door”).
2. Unscrew the thumb screw at the bottom of the panel using the
Phillips screwdriver.
3. Pull the filler panel out of the chassis (Figure 20).

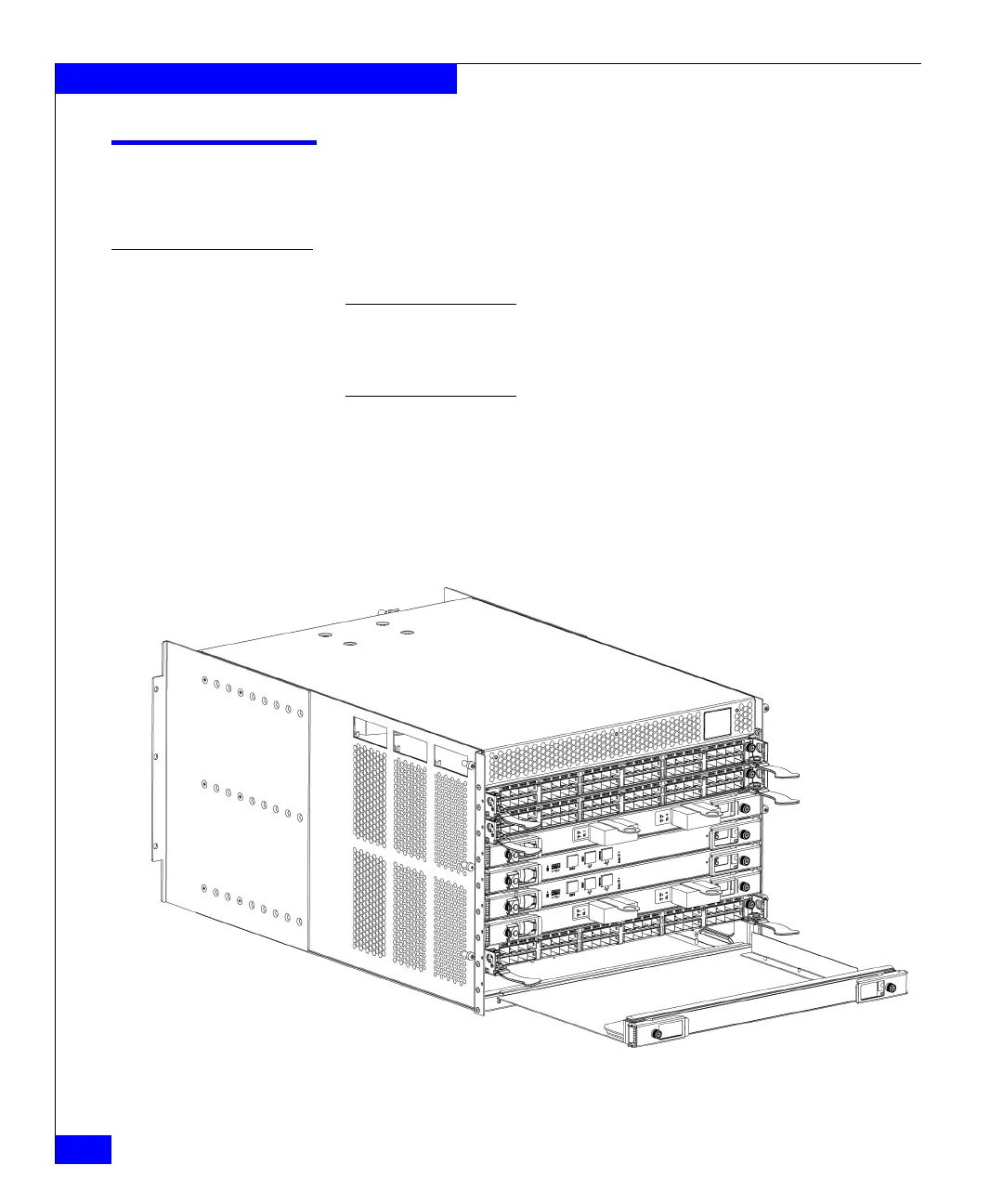

Figure 20 RRP: Blade filler panel
