Maintenance 191
5

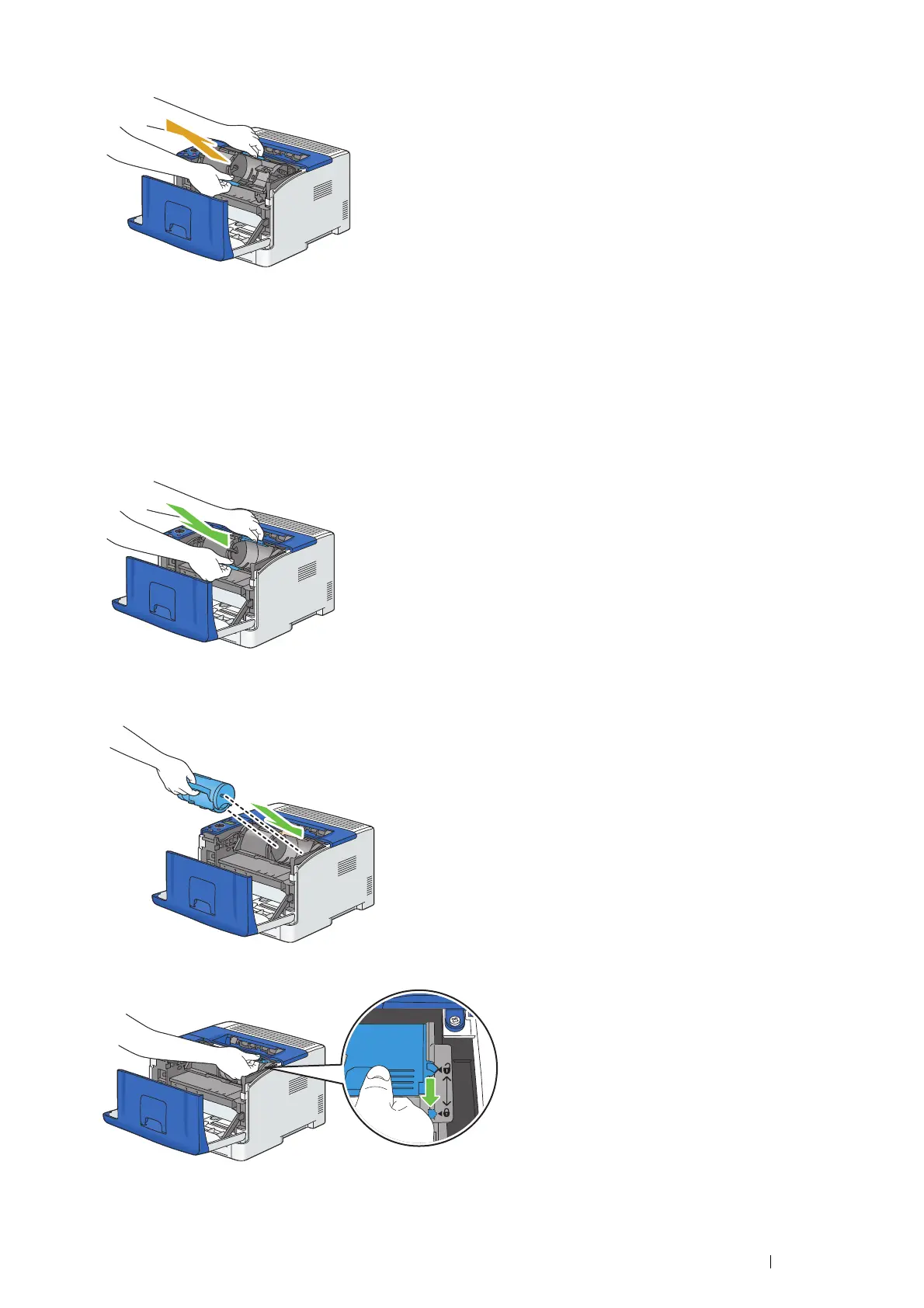

Grasp the handle on the top of the drum cartridge with the other hand, and then pull it out completely.
Installing a Drum Cartridge
1
Unpack a new drum cartridge.
2
Insert the drum cartridge into the cartridge slot, and then push until it stops.
NOTE:
• The protective cover of the drum comes off while inserting the drum cartridge into the cartridge slot. You do not need to remove
it in advance.
3
Make sure that the two tabs of the toner cartridge align with the grooves on the printer, and then insert it into the
printer until it clicks.
4
Grasp the toner cartridge lock lever, and then pull it down until it stops.
To Next Page
