4. SLANT MODE
4-18
6. Select [Tracking Method] then push the left-click button.
7. Select [Target Mark] or [Fish] then push the left-click button.
8. Select [Quit] on the setting box then push the left-click button to close the box.
9. Long-press the MENU/ESC key to close all menus.
4.12.2 Fish mode
The automatic echo target lock function automatically tracks the operator-selected
school of fish. When [Tilt Interlock] on the [Target Lock] menu (previous page) is set
to [Tilt & Range], and the tracked school of fish goes out of the zone in the range di-
rection, the range and tilt are automatically controlled according to the position of the
school of fish.
1. Select [Fish] in the procedure in paragraph 4.12.1.
2. On the slant display, use the trackball to select the school of fish to track.
3. Press the TARGET LOCK key.
The target lock mark (white) with vector is put on the school of fish. The vector
shows the speed and direction of movement of the school of fish. The tip of the
vector is the estimated position of the school of fish when the vector time elapses.
The target lock mark appears on the vertical display, however the vector is not
shown.
If the target is lost, the target lock mark changes to red color and the tracking
mode changes to position mode (see next section) at that position. When the so-
nar detects and tracks the target again, the Fish mode is restored.
4. To disable the target lock, press the TARGET LOCK key.
4.12.3 Target mark mode
This mode tracks a stationary position (such as a reef) using position data fed from a
navigator.
1. Select [Target Mark] in the procedure in section 4.12.1.

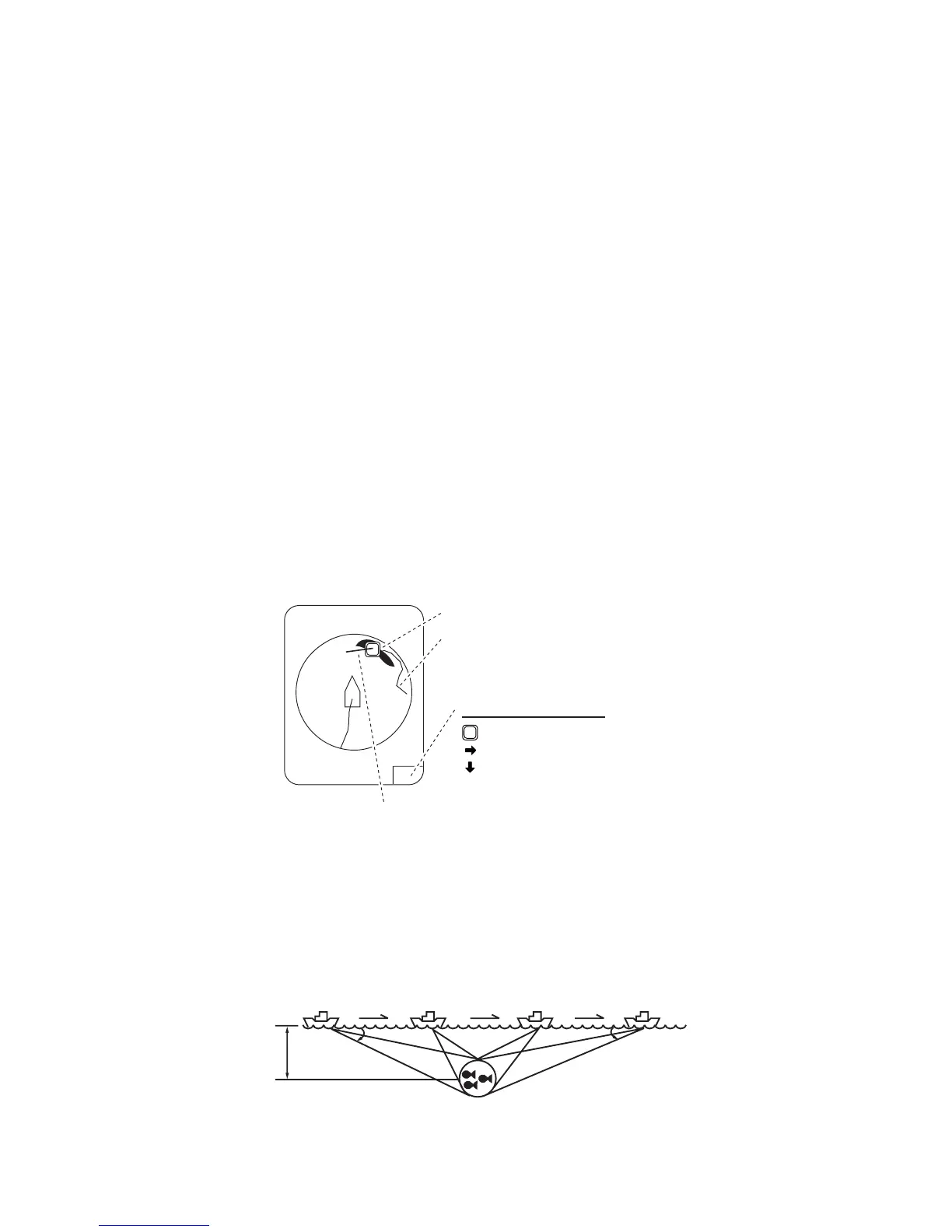

Target lock mark
Track of school of fish
(Turned ON or OFF on
Mark Display menu.)
TARGET LOCK DATA
C
256° (Course)
S
12.3kn (Speed)
2975m (Horizontal range)
153m (Depth)
Vector
(Heading data required)
Depth
AB CD
E
To Next Page
