5. NUMERIC/GRAPHIC DATA DIS-
PLAY
5.1 Numeric/Graphic Data Display

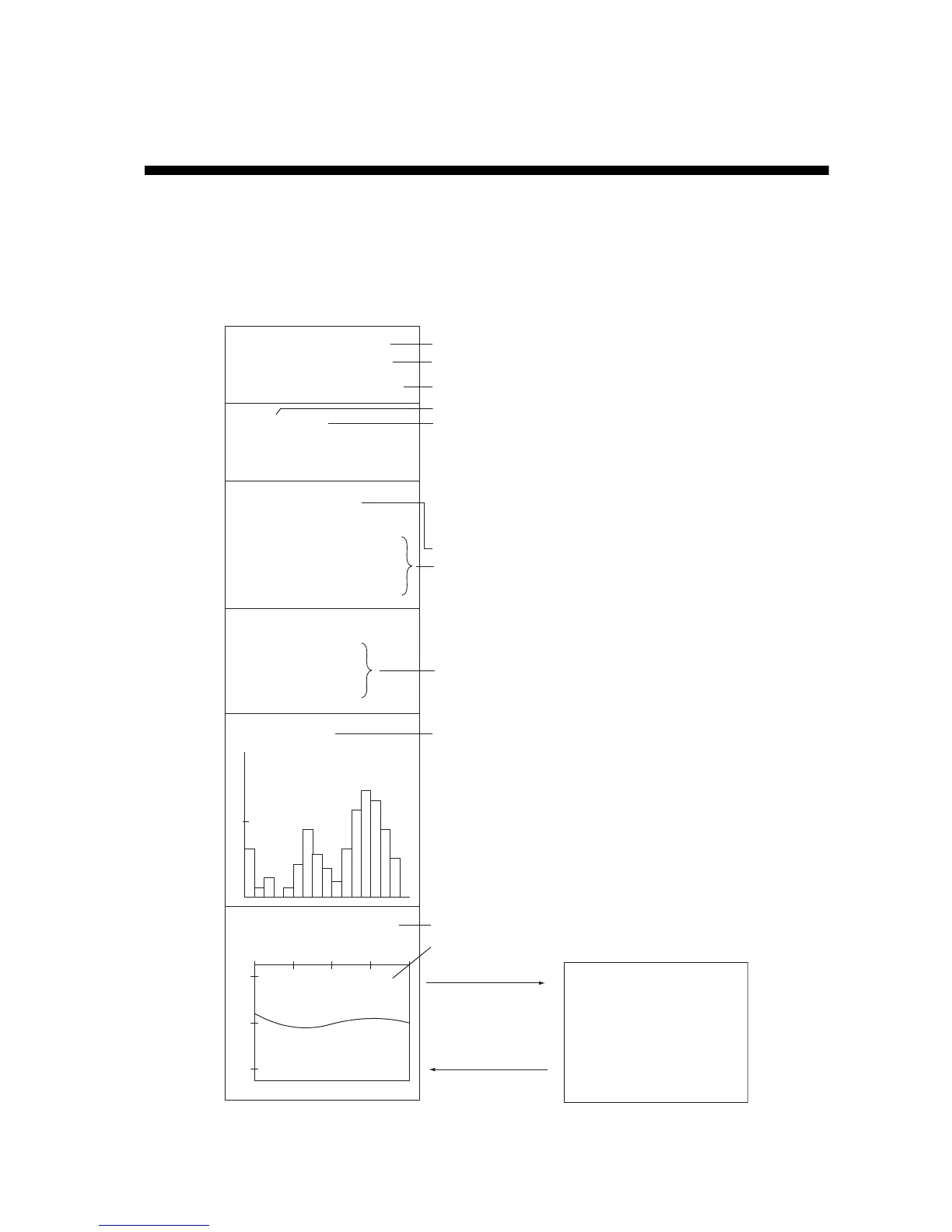

This display provides comprehensive numeric/graphic data and appears with the hor-
izontal and vertical displays, at the right side of the display.
HEADING 321 °
SHIP COURSE 335 °
SHIP SPEED 12.5kn
LAT/LON[DGPS]
DEPTH 321m
WATER CURRENT
C1 1.2kn 342 °
C2 0.8kn 298 °
C3 0.4kn 256 °
NET DEPTH
S1 134m
S2 178m
S3 213m
FISH HISTOGRAM
1 SCAN1
10.35 ° C
WATER TEMP
8
12
10
01020MIN
Heading*
Course*
Speed*
Navigator type (in brackets)*
DGPS: Differrential GPS
KGPS: Kinematic GPS
FGPS: Floating GPS
GPS: GPS
LC: Loran C
DR: Dead Reckoniong
***: Position error
Water current speed
and direction for three
layers*
Net sonde depth
data*
Fish histogram
(See page 2-31.)
Water temperature*,
Water temperature
graph*
Position format
32 ° 52.150N
132
° 12.150E
Depth
* Requires appropriate sensor.
SCHOOL OF FISH INFO
LENGTH 51 m
WIDTH 47 m
HEIGHT 24 m
DIMENSIONS 2564 m
2
VOLUME 45805 m
3
WEIGHT 59 t
TARGET LOCK ON
(Mark Interlock:
Est & Fish Info
at Target Lock menu)
TARGET LOCK OFF
