Furuno FSV-85 User Manual

7. OTHERS MENU
7-3
7.3 Display Setting Menu

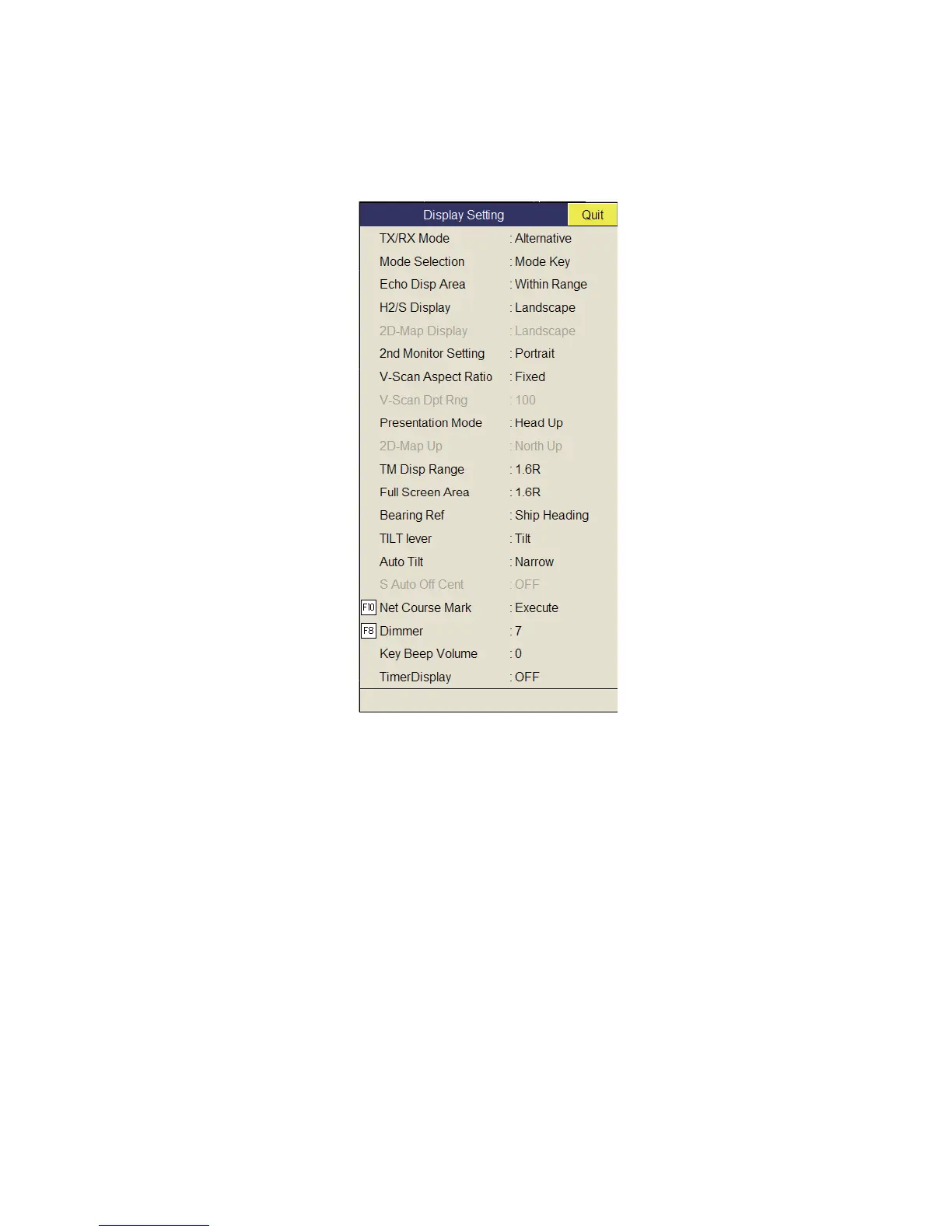

The [Display Setting] menu sets various display-related items according to operator’s
preference. To display the menu, open the main menu then select the [Others] and
[Display Setting] menus.
TX/RX Mode: Select how to transmit and receive in combination displays. [Alternative]
executes Tx and Rx one display at a time. [Multi] simultaneously executes Tx and Rx
on each display. This item is inoperative (shown in gray) in the following cases.
• [Sidelobe Sup.A] on the [Sidelobe Sup.] menu is set between -3 and -1.
• [Sidelobe Sup.B] on the [Sidelobe Sup.] menu is set to a value other than 0, and[
RX Beam Control] on the Beam Width menu is set to a value other than 0.
Mode Selection: Determines how display modes are chosen: MODE key or pull-down
menu.
Echo Disp Area: Selects the echo display mode for the horizontal and slant displays,
[Within Range] or [Full Screen]. See page 1-6.
