6. HOW TO CUSTOMIZE THE EQUIPMENT
6-6
*: H/V Interlock: Effective on both H and V displays.
H/V Individual: Select the display to use with the H/V/S key. (In operative on the
slant display).
5. Do one of the following then push the left-click button.
• For H/V Interlock: Select [Assign User Prog].
• For H/V Individual: Select Assign [User Prog-H/S] or [Assign User Prog-V].

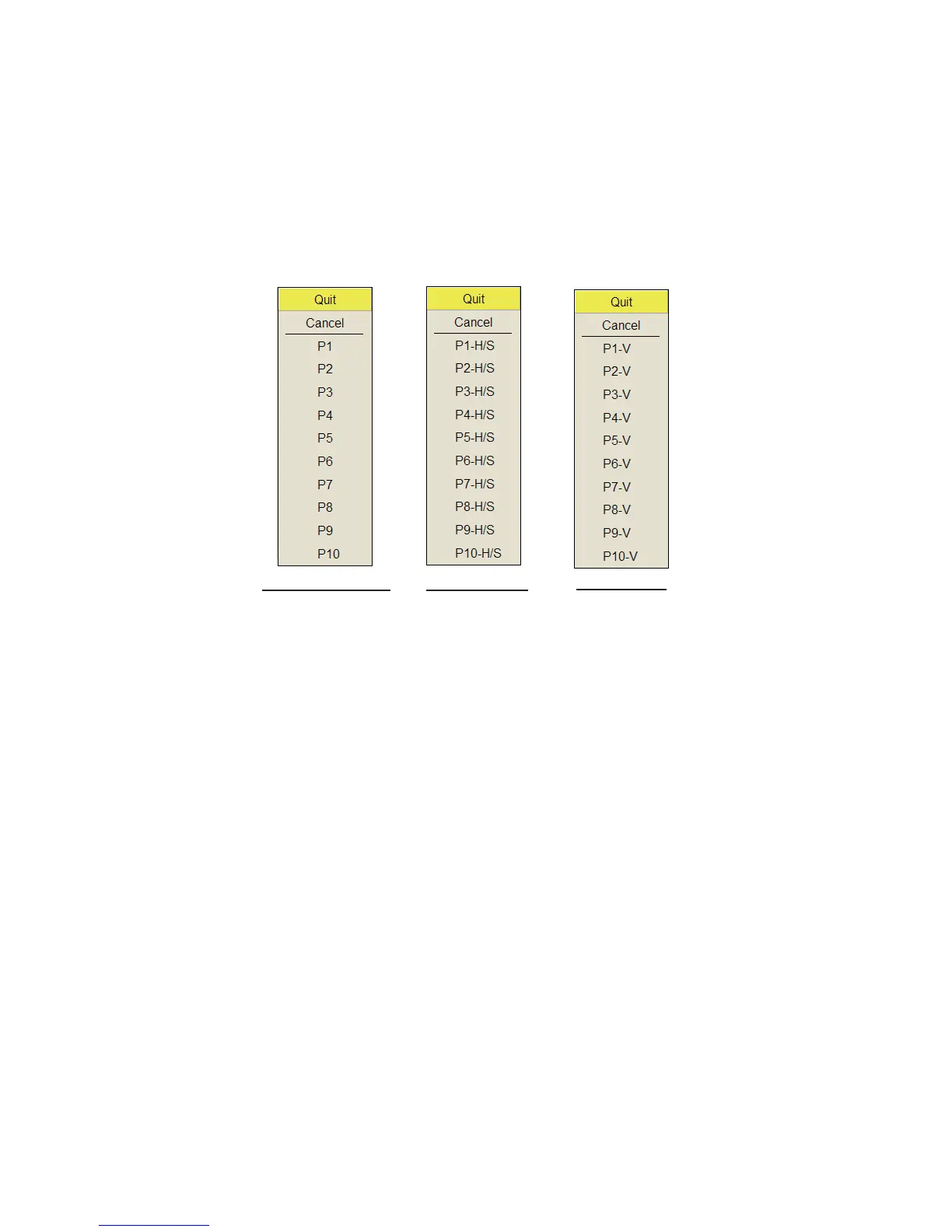

6. Select [Changeable] then push the left-click button. One of the following displays
appears depending on your selection.
7. Select a program no. then push the left-click button.
8. Select [Quit] on the setting box then push the left-click button.
9. Long-press the MENU/ESC key to close all menus.
Note: The slant mode user programs are effective when the slant display is selected.
Slant display: User programs for slant mode. Slant combination display: Horizontal
display user programs when horizontal display is active. Slant display user programs
when slant display is active.
6.3.3 How to program display ranges
To use programmed ranges, turn on [Auto User Prog Sel]. For example, you set P3
for 200, P7 for 1000 m, etc. Then, the short and long ranges are selected alternately
without operating the USER PROG control. Range assignment is done with [Auto
User Prog] (for H/V Interlock) or [Auto User Prog-H]/[S/Auto User Prog-V] (for H/V In-
dividual). Close the menu after you set ranges to activate user ranges.
“User Prog-H/S”
“Assign User Prog”
“User Prog-V”
To Next Page
