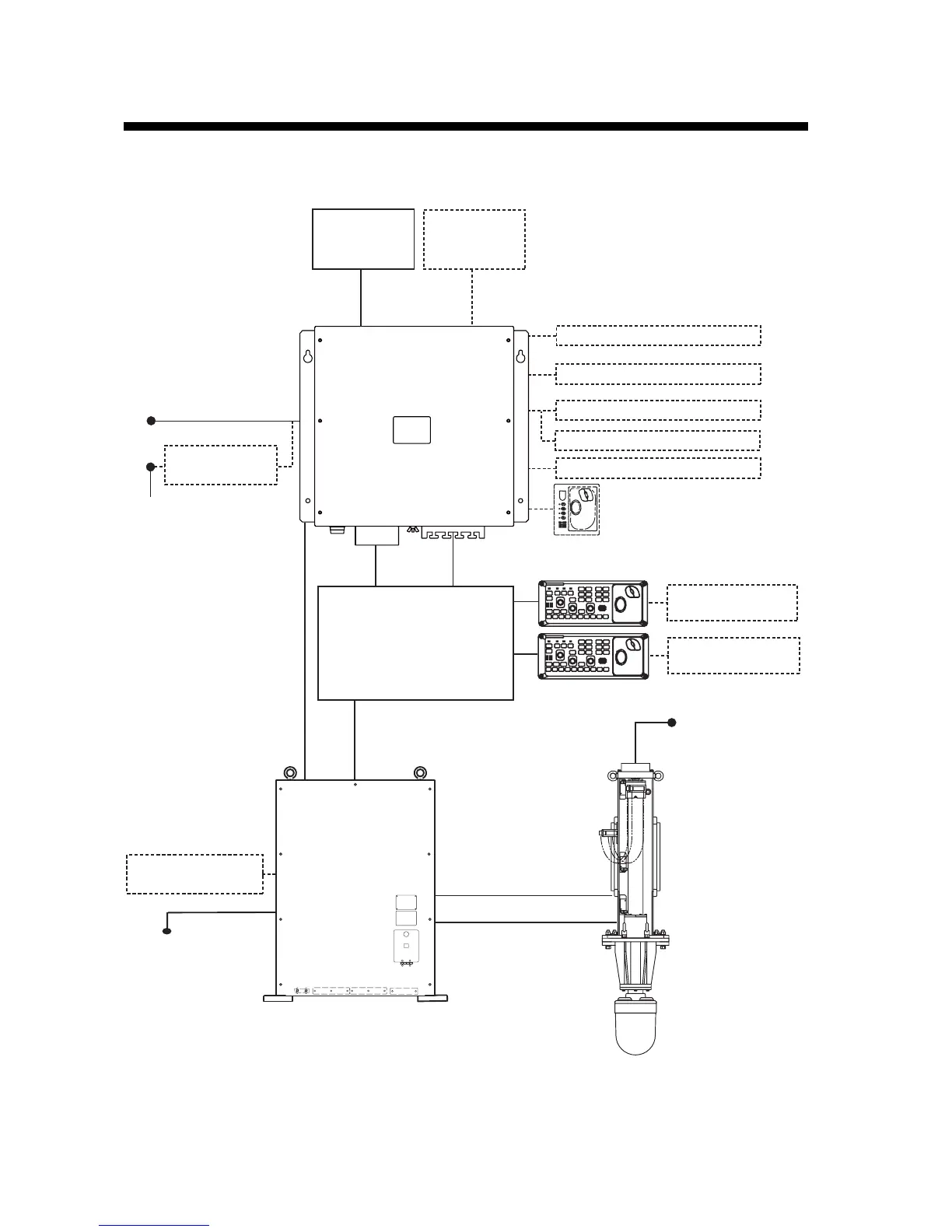

SYSTEM CONFIGURATION
Standard configuration is shown with solid line.
MAIN SW
FUSE
FUSE
Processor Unit
FSV-8503
Monitor Monitor
12-24 VDC
Rectifier
RU-1746B-2
100/110/115/
220/230 VAC
IF Unit
FSV-8502
Satellite Compass
SC-30/50/100
100/110/115/
220/230 VAC
1
φ , 50/60 Hz
Transceiver Unit
FSV-851A
USB device (mouse, etc.)
Junction Box FI-5002
NMEA IEC 61162-1 device
NMEA IEC 61162-1 device
Speaker
Control Unit
FSV-8501
Remote Controller
FSV-854
200-220 VAC
3
φ , 50/60 Hz
Hull Unit
(80 kHz)
FSV-8431 - 8434
FSV-8441 - 8444
(70 kHz)
FSV-8531 - 8534
FSV-8541 - 8544
Remote Controller
FSV-854
Sub Control Unit
FSV-853
