2. HORIZONTAL MODE
2-4
2.3 Display Range
The RANGE control selects the
detection range and six ranges
are preset at the factory. The
range selected is momentarily dis-
played in large characters at the
top of the screen. Range is always
displayed next to “R“ at the top
right of the screen.

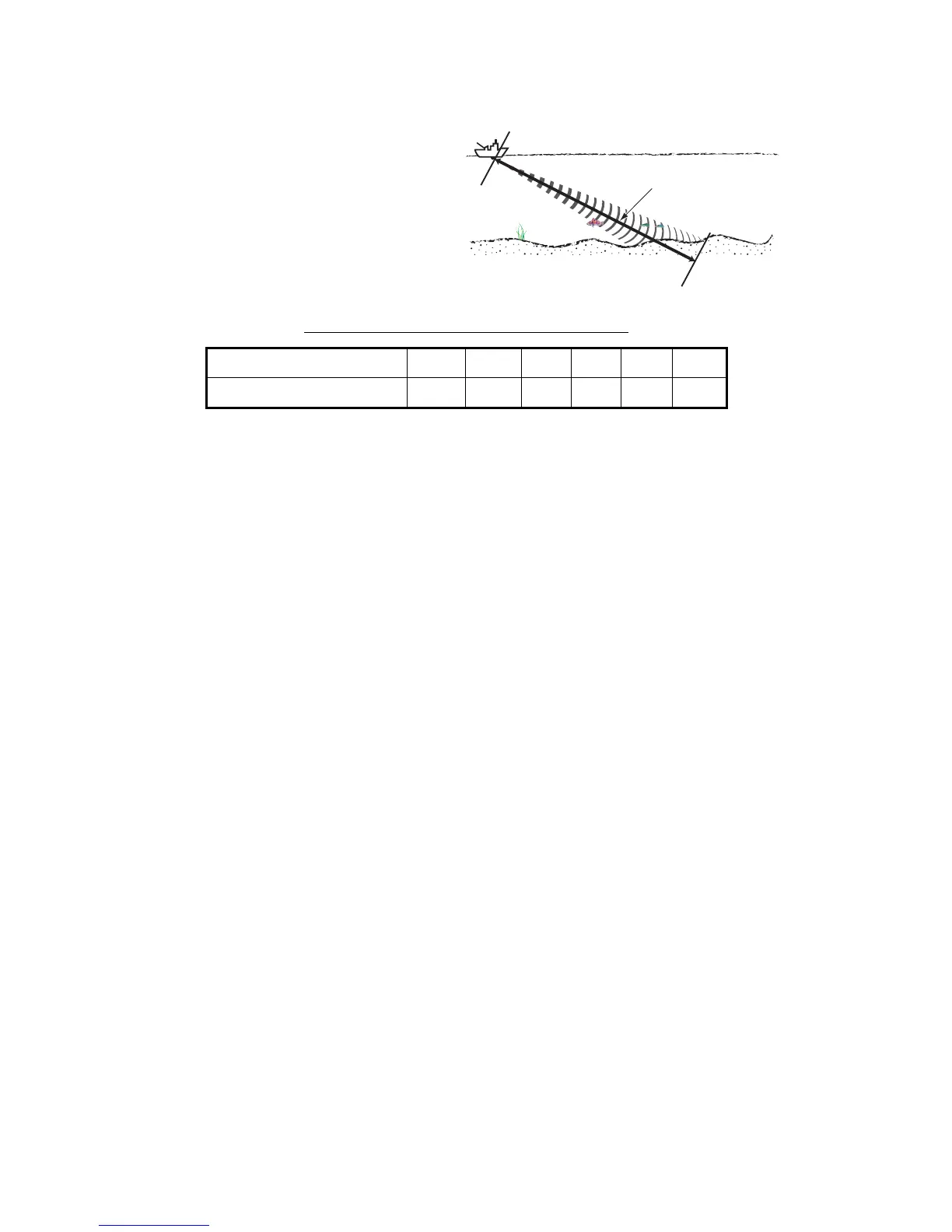

Default settings for the display range (unit: m)
Note: Ranges can be preset at the [H-Scan Range] on the [Others] - [Register] menu.
See page 7-6.
1. If the vertical or slant display is active, press the H/V/S key to select the horizontal
display. If the two horizontal displays are active, press the H/V/S key to select H1
or H2 to change the range. The range and gain indications of the horizontal mode
must be in orange to change the range (and gain).
2. Operate the RANGE control to select a range.
Note 1: The range can also be adjusted from the range indication. Put the cursor on
the range indication to highlight it in yellow then roll the scrollwheel.
Note 2: In the target lock function, the range is automatically changed according to
target position if [Tilt Interlock] on the [Target Lock] menu is selected to [Tilt & Range].
Range No. 1 2 3 4 5 6
Detection range 100 200 400 600 800 1000
Surface
Bottom
Range displayed on display
To Next Page
