4. SLANT MODE
4-33
4.22 How to Interpret the Slant Display
4.22.1 Bottom echoes

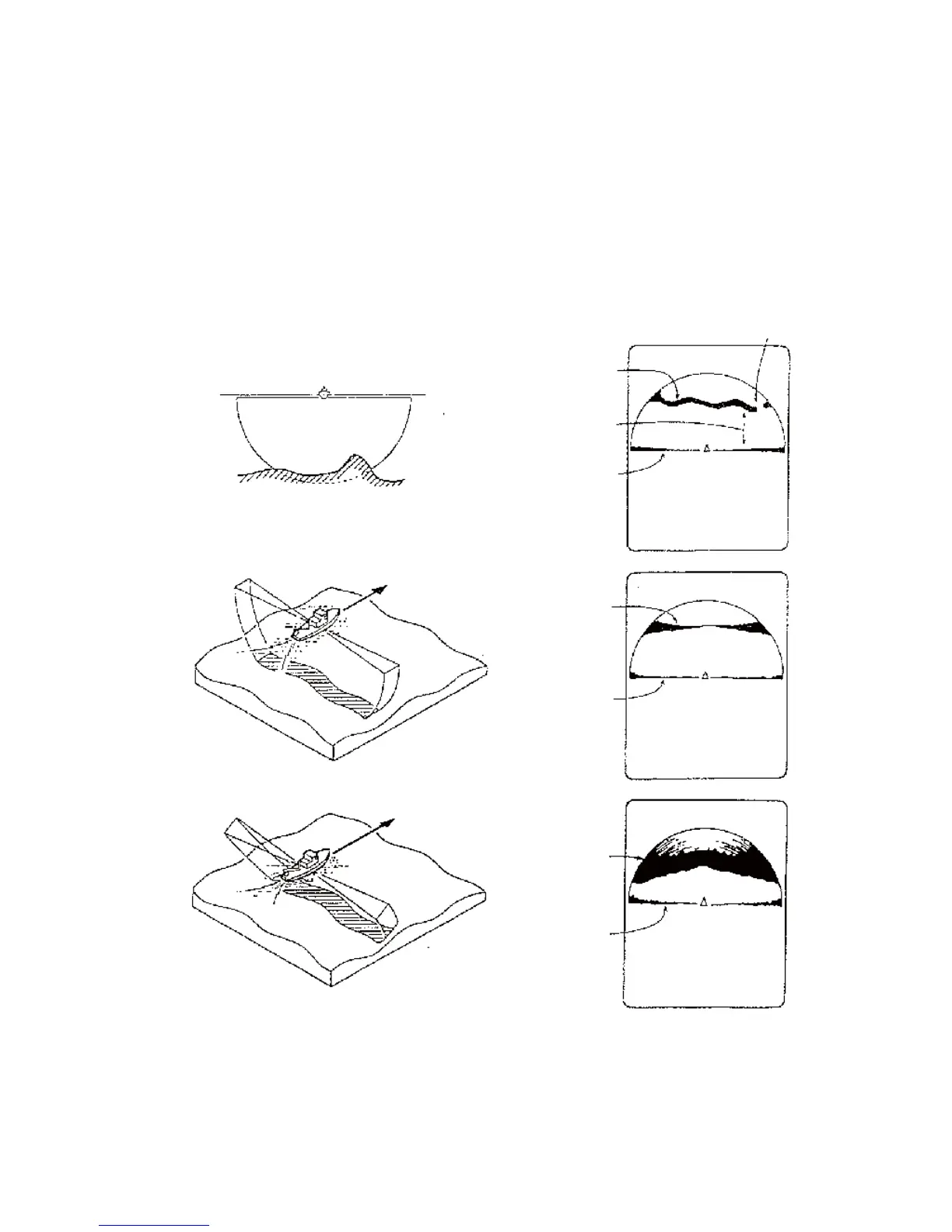

When the tilt angle is set at 90 degrees with the sector center faced dead ahead, the
pictures illustrated below will appear on the screen. The bottom echo is represented
on the screen as a thick line which realistically shows the bottom contour. When the
tilt angle is decreased, the bottom trace becomes wider and weaker. By observing bot-
tom condition on the screen, you may prevent the net from being damaged by a reef
or a shipwreck.
Bottom
Bottom
Bottom
This distance shows
depth of water
Sea surface
reflections
Sea surface
reflections
Bottom
Ridge
Bottom
Bottom
Sea surface
reflections
Tilt: 90 degrees
Tilt: 60 degrees
To Next Page
