The opto-isolated logic inputs can be configured for the nominal battery voltage of the circuit for which they are a
part
, allowing different voltages for different circuits such as signalling and tripping.
Note:
The opto-input circuitry can be provided without the A/D circuitry as a separate board, which can provide supplementary
opto-inputs.
6.5.2 TRANSFORMER BOARD

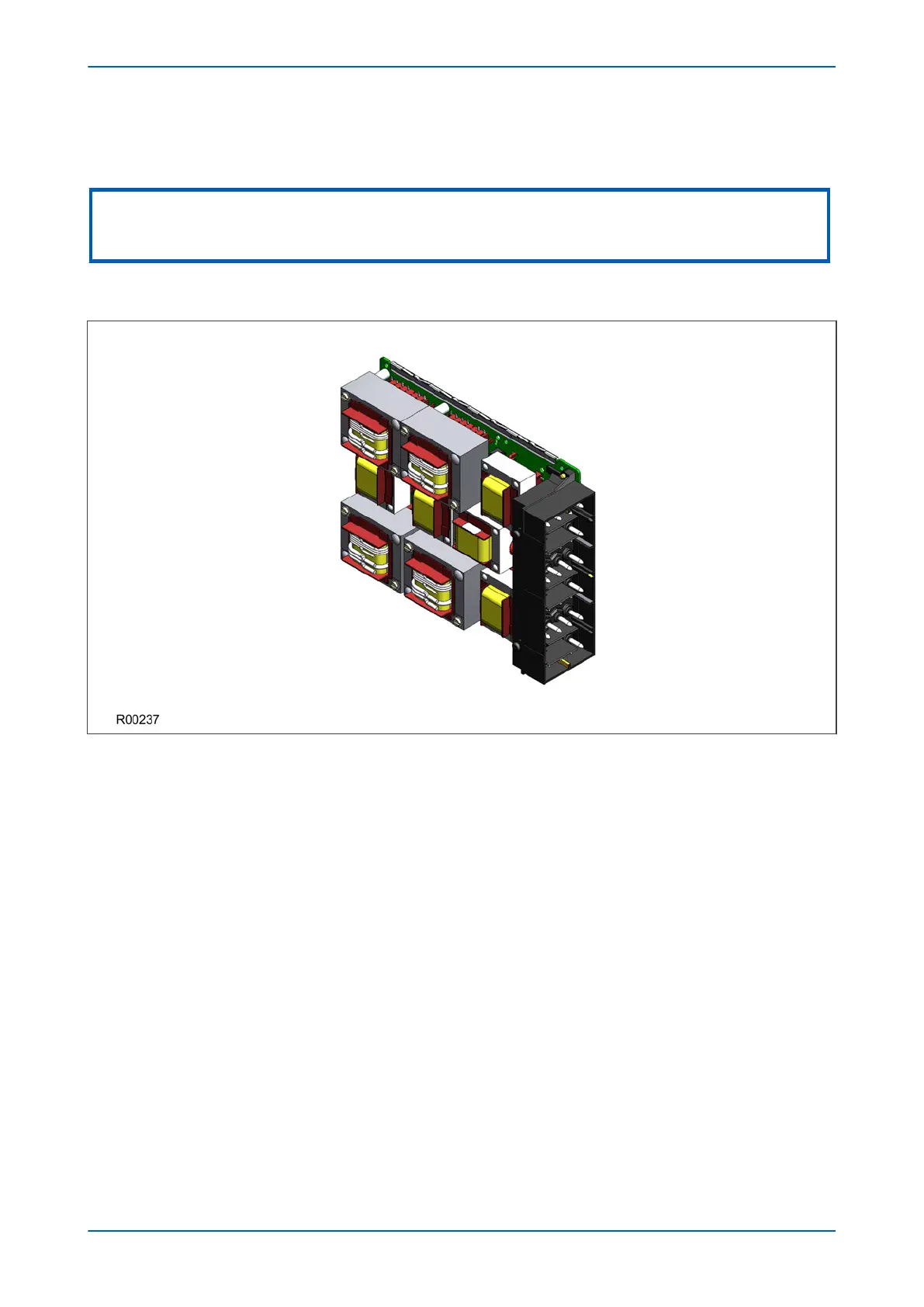

Figure 17: Transformer board
The transformer board hosts the curr
ent and voltage transformers. These are used to step down the currents and
voltages originating from the power systems' current and voltage transformers to levels that can be used by the
devices' electronic circuitry. In addition to this, the on-board CT and VT transformers provide electrical isolation
between the unit and the power system.
The transformer board is connected physically and electrically to the input board to form a complete input module.
For terminal connections, please refer to the wiring diagrams.
P14x Chapter 3 - Hardware Design
P14xEd1-TM-EN-1 47
