3 USING THE HMI PANEL
Using the HMI, you can:
● Display and modify settings
● View the digital I/O signal status
● Display measur
ements
● Display fault records
● Reset fault and alarm indications
The keypad provides full access to the device functionality using a range of menu options. The information is
displayed on the LCD.

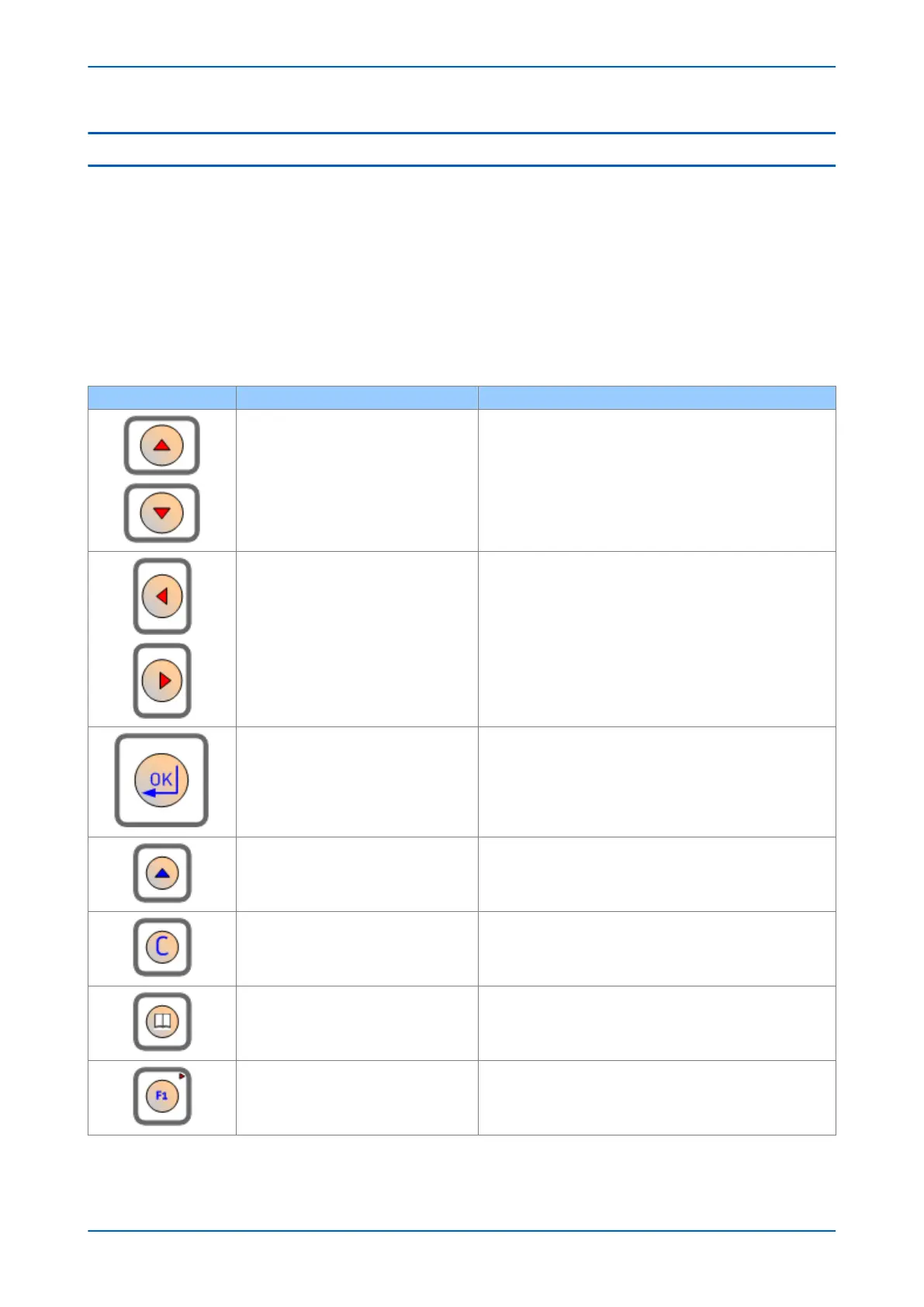

Keys Description Function
Up and down cursor keys
To change the menu level or change between settings in a
particular column, or changing v
alues within a cell
Left and right cursor keys
To change default display, change between column
headings, or changing values within a cell
ENTER key For changing and executing settings
Hotkeys
For executing commands and settings for which shortcuts
have been defined
Cancel key To return to column header from any menu cell
Read key To read alarm messages
Function keys (not all models) For executing user programmable functions
P14x Chapter 5 - Configuration
P14xEd1-TM-EN-1 71
