3-27
[Configuration of the model PXR-P]

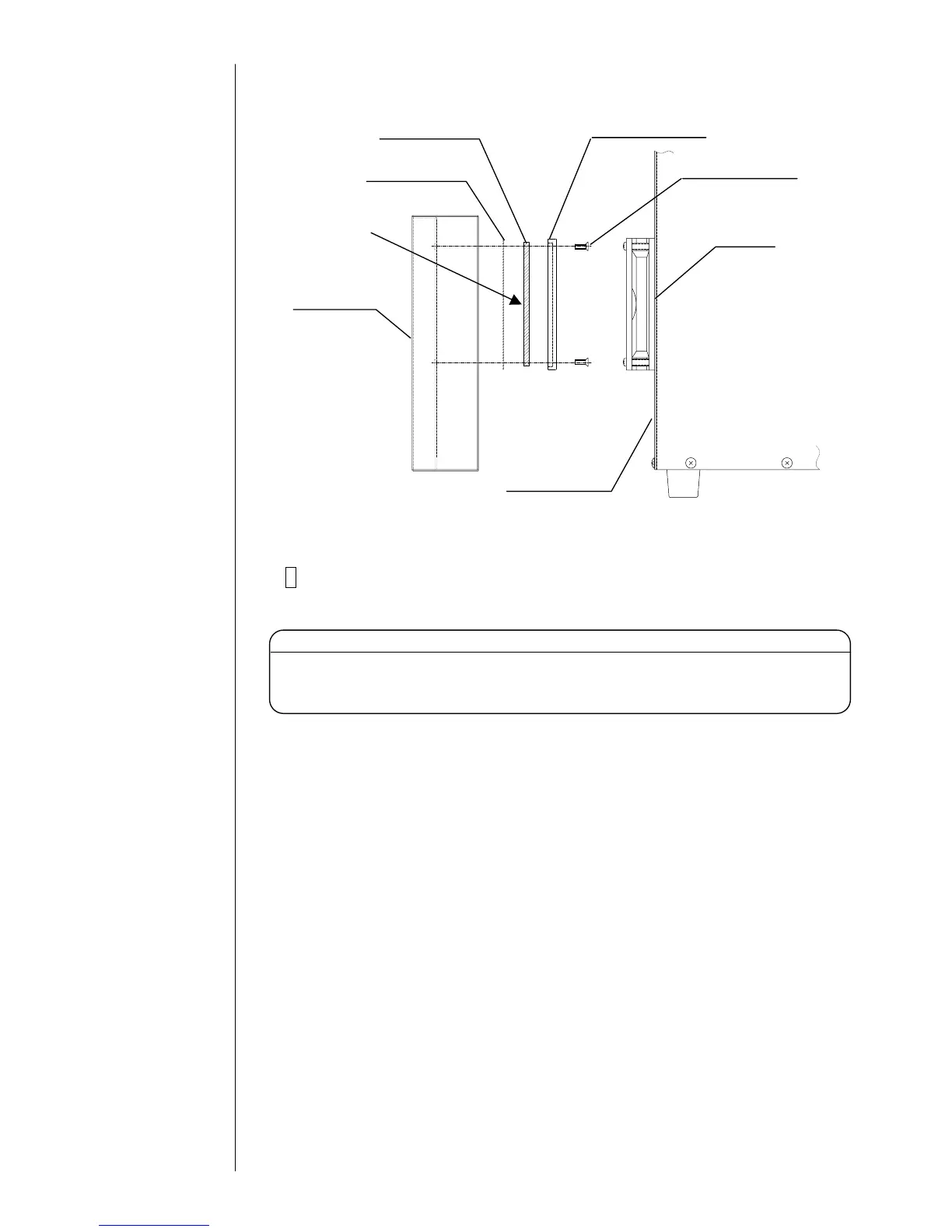

4 Install a new Exhaust Filter by reversing the above procedure.
 (The red mark side is the filter cover side.)
There are a front side and a backside of the exhaust filter.
Place the red mark side toward the Exhaust cover.
Caution
Exhaust Filter
Exhaust cover
* Red mark
Fixing screw
(4 pieces)
Filter cover
Rear cover
Fan
Wire mesh filter
