CAUTION:
Prevent
Module
Connector
Breakage
DO
CAUTION
DISCONNECTING TERMINAL
BLOCI<S
fROM
PLUG-IN
MODULES.
See Figure
2.
Disconnecting a terminal block from an uninsra/led plug-in module
(one not
in
a
/rame
card cage) can cause !he connector to break
if
;mpruperly dis-
connected. For terminal
blocks
nor
in
a quick interconnect fixture
(Q!F),
the
ex-
tractors
(both
top
and
bottom)
must
be
slowly
actil•ated
together
to
disengage
the connector. DO
NOT
activate
one
extractor
only.
This causes the terminal
block
to lorm a lever arm pivo/;ng on the still engaged end. Large
sires.\'
can
he
pill on the pivoting
end
causing the connector to break.
Also, when disconnecting a terminal block from an installed plug-in module,
use
both extractors together to prevent stressing one end
of
the connector.
·----·--------
TOP
EXTRACTOR
NOT
OPERATE
EXTRACTORS
AT
TOP
AND
BOTTOM
activate
an
extractor
one
end
Operate
extrflctors
at
top
and
bottom
together.
STRESS
POI

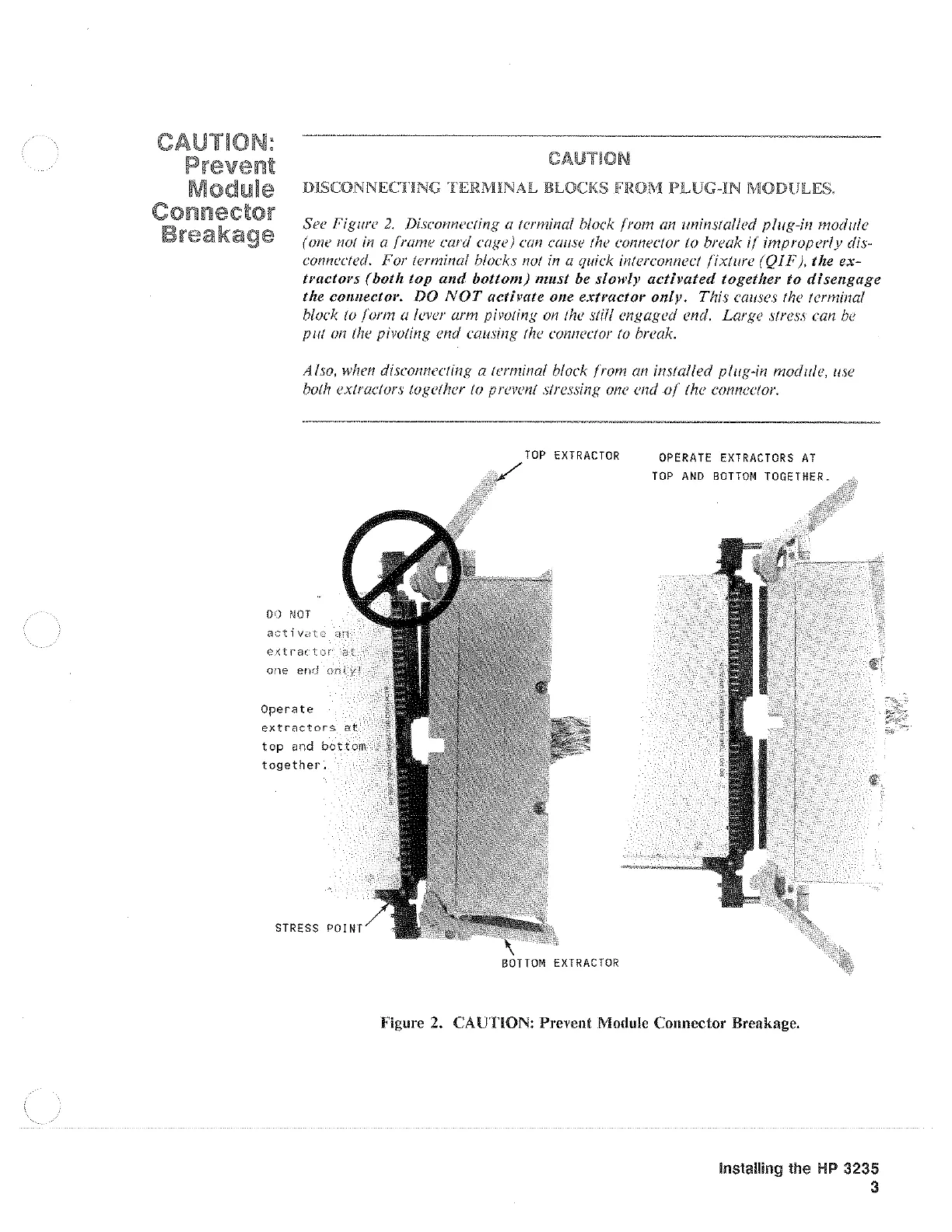

Figure 2. CAUTION: Prevent Module Connector Breakage.
Installing the
HP
3235
3
~"'
