Installing
User-Bum
DUT Fixtures
Installing the
HP
3235
54
The
QIF has
two
rectangular indents
on
each
side (see Figure 40) with
threaded
inserts
for
mounting a user-built
DUT
fixture.
The
inserts accept an
M4 x
0.7
x 8 screw. A flathead screw
is
recommended
to
allow maximum
clearance
for
the
mechanism handles when
they
are pulled down. Figure 48
shows a typical fixture installed on the Q!F. A
sheetmetallayout
for
a
fixture
you can build
and
customize for your specific needs
is
shown
in
Figure 49. This
fixture can be purchased
(HP
P/N
03235-04111 Quick Interconnect
Fixture
Cover)
to
cover
the
terminal blocks loaded in a QIF. You
can
make a
DUT
fix-
ture
out
of
this cover by making the required cable/wiring
cutout
and
mounting
a
DUT
connector
over
the hole. Cable/wiring between
DUT
connector
and
terminal blocks in
the
QIF
is
routed
through
the
cut
out.

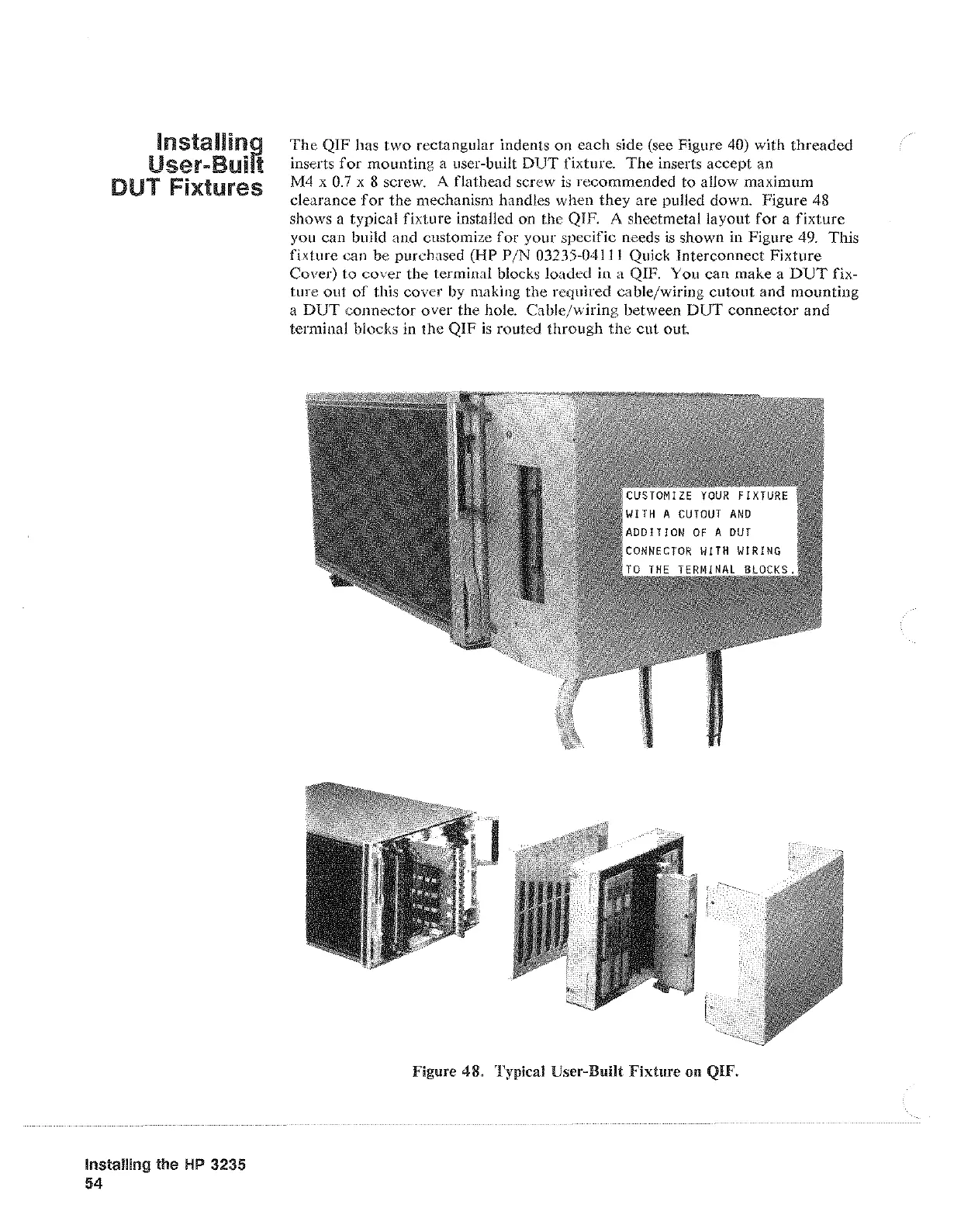

Figure 48. Typical
User-Built
Fixture
on QIF.
